About the product

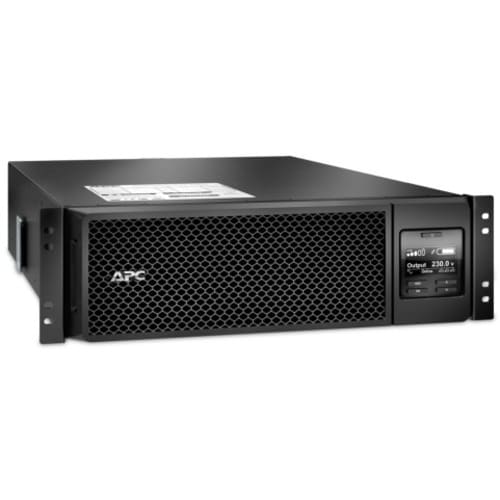

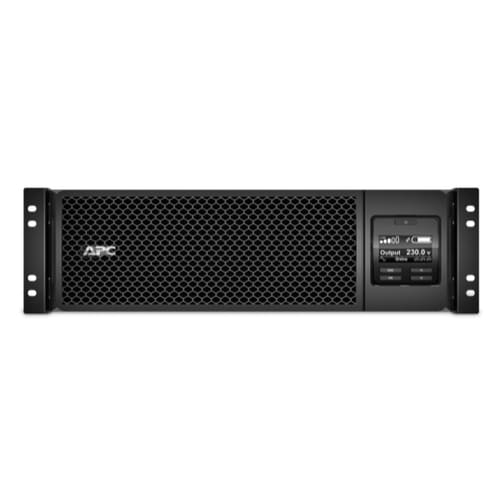

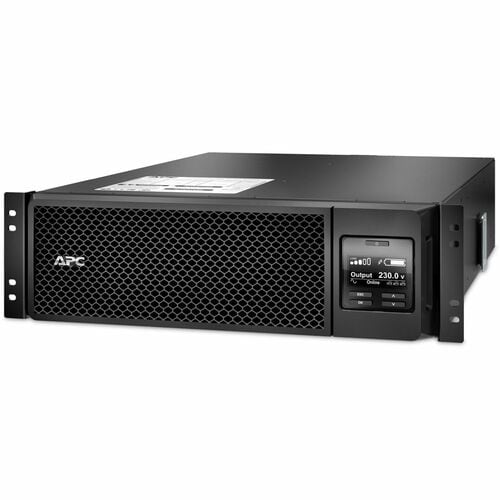

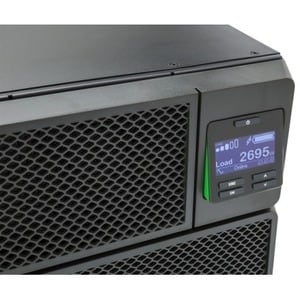

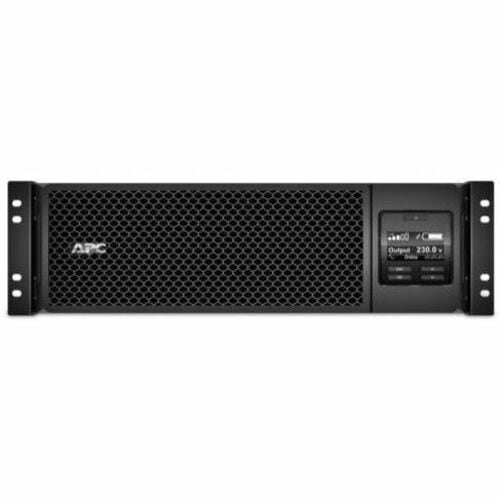

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- 5 kVA load capacity - work without any interruption during power outages
- 4.50 kW load capacity - backup power for your valuable electronics
- 5 kVA load capacity provides sufficient backup during power failures
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Technical Information | |
| Cord Length | 3 ft (0.91 m) |
| Number of Battery & Surge Outlets | 3 |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + E) |
| 1 x Hard Wire 3-wire (2PH + G) | |
| Power Description | |
| Input Voltage | 208 V |
| 230 V | |
| Output Voltage | 208 V AC |
| 230 V AC | |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT5KRMXLW-HW |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 5000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SRT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 123 lb (55791.86 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CE|EAC|ENERGY STAR V2.0 (USA)|FCC part 15 class A|IRAM|NOM|RCM|UL 1778|VDE |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KRMXLW-HW_ROHS_DECLARATION&p_FileName=SRT5KRMXLW-HWKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135484&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135484&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
