APC by Schneider Electric
APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V S
APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V S
Regular price
$9,077.32 CAD
Regular price
$10,166.59 CAD
Sale price
$9,077.32 CAD
Unit price
/
per
Shipping calculated at checkout.
APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer - Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 120 V AC, 208 V AC Output - Sine Wave - 1 x NEMA L14-30R, 2 x NEMA L6-30R, 4 x NEMA L6-20R, 8 x NEMA 5-20R Receptacle(s) - 15 x Battery/Surge Outlet
VPN:SRT5KXLT-5KTF SKU:RSC136524 UPC:
- 5 kVA load capacity - work without any interruption during power outages
- 4.25 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 4.25 kW load capacity
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V S
Product information summary

About the product

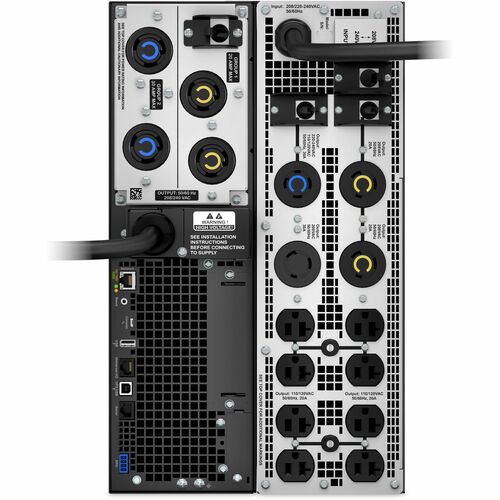

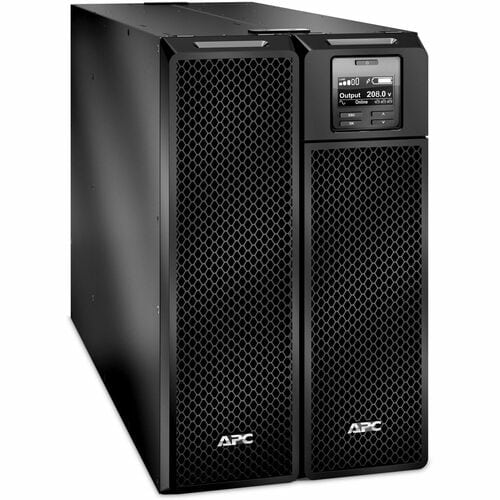

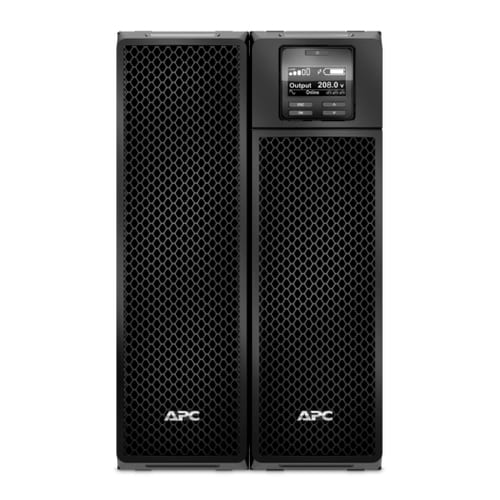

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- 5 kVA load capacity - work without any interruption during power outages
- 4.25 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 4.25 kW load capacity
- 5 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 4 minute at full load
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
Warranty | |
Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
Battery Information | |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 4 Minute |
Typical Battery Recharge Time | 1.50 Hour |
General Information | |
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | SRT5KXLT-5KTF |
Manufacturer Website Address | http://www.schneider-electric.com |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer |
Product Line | Smart-UPS On-Line |
Brand Name | APC by Schneider Electric |
Power Description | |
Input Voltage | 208 V |
Output Voltage | 120 V AC |
208 V AC | |
Surge Energy Rating | 480 J |
Waveform Type | Sine Wave |
Load Capacity (VA) | 5 kVA |
Load Capacity (Watt) | 4.25 kW |
Technical Information | |
Plug/Connector Type | NEMA L6-30P |
Cord Length | 10 ft (3.05 m) |
Receptacle Type | NEMA L6-30P |
Number of Battery & Surge Outlets | 15 |
Receptacle Detail | 1 x NEMA L14-30R |
2 x NEMA L6-30R | |
4 x NEMA L6-20R | |
8 x NEMA 5-20R | |
Physical Characteristics | |
Weight (Approximate) | 248 lb (112490.91 g) |
Form Factor | Rack-mountable |
Height | 17.01" (432 mm) |
Width | 10.20" (259 mm) |
Depth | 28.31" (719 mm) |
Product Color | Black |
Color Family | Black |
Mounting Location | Vertical |
Mounting Preference | No Preference |
Miscellaneous | |
Package Contents | |
Certifications & Standards | ENERGY STAR V2.0 (USA) |
Environmentally Friendly | Yes |
For Country/Region | United States |
Energy Star | Yes |
Optimized Energy Efficiency | Yes |
Product Take Back Program | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KXLT-5KTF_ROHS_DECLARATION&p_FileName=SRT5KXLT-5KTFKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135488&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135488&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
REACH free of SVHC | No |
California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
