About the product

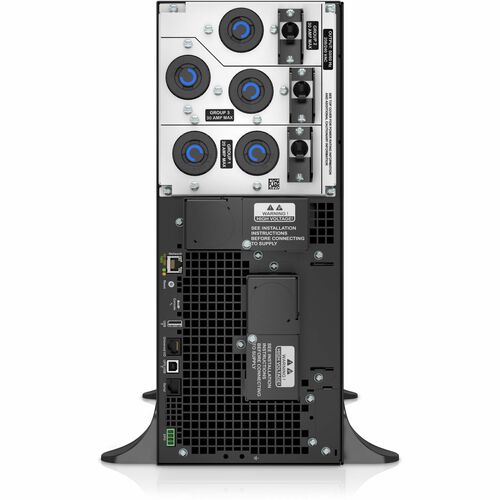

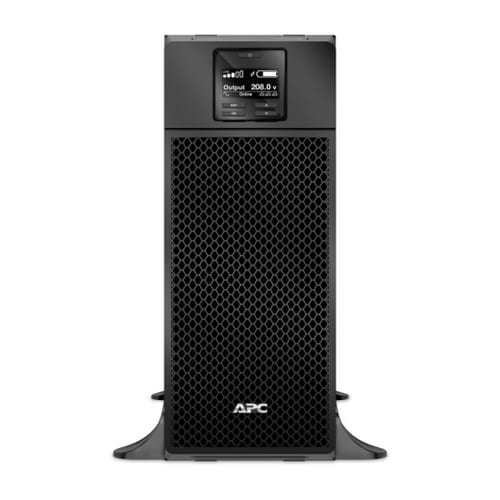

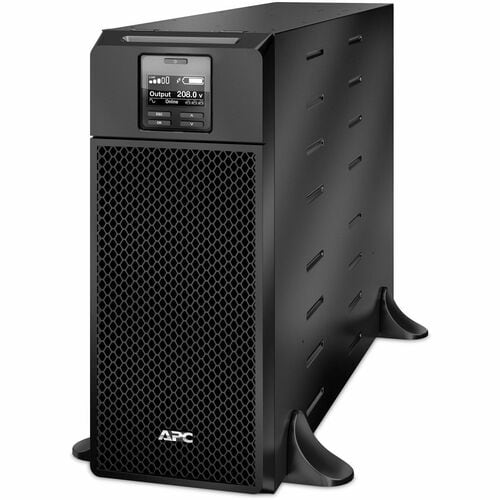

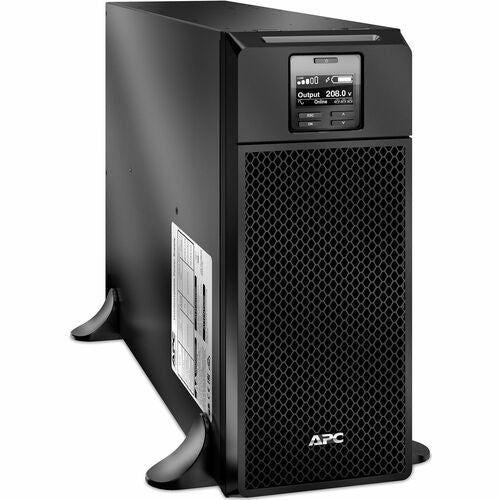

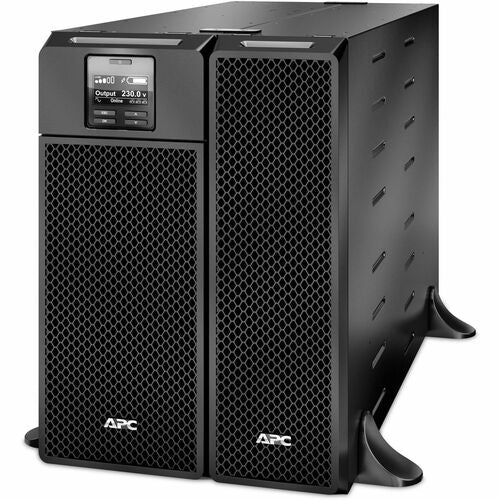

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- 6 kVA load capacity - work without any interruption during power outages
- 6 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 6 kW load capacity
- Keep your sensitive devices powered with a backup of up to 2.30 minute at full load
- Up to 2.30 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Multifunction LCD status and control console |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | UPS Power Condition |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1402 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT6KXLT-IEC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 6000VA 208V IEC |
| Product Line | Smart-UPS SRT |
| Brand Name | APC by Schneider Electric |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 192 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Physical Characteristics | |
| Weight (Approximate) | 131.99 lb (59869.66 g) |
| Form Factor | Rack-mountable |
| Height | 17.01" (432 mm) |
| Width | 6.85" (174 mm) |
| Depth | 28.31" (719 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Technical Information | |
| Application/Usage | IT Equipment |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2P + E) |
| Receptacle Type | IEC Jumper |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| Number of Battery & Surge Outlets | 12 |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 4 x IEC 60320 C19 | |
| 2 x IEC Jumper | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778 |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT6KXLT-IEC_ROHS_DECLARATION&p_FileName=SRT6KXLT-IECKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135498&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135498&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
