About the product

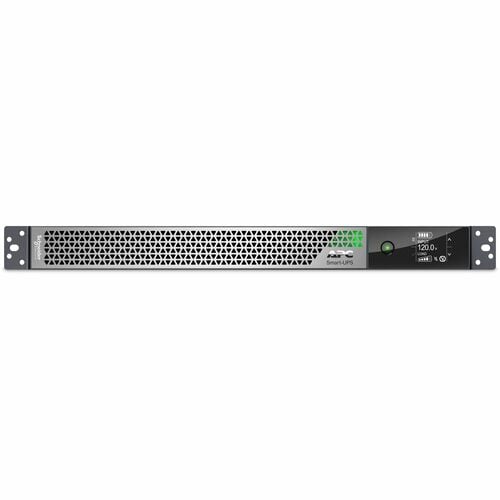

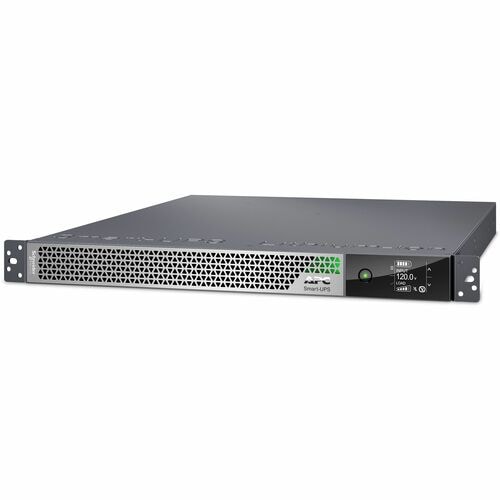

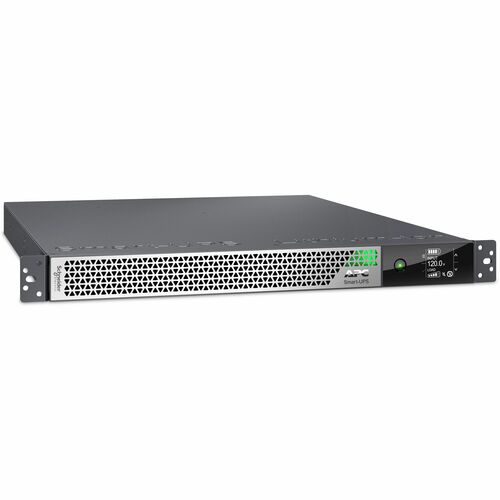

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- Compact in size and offers highly efficient solution
- 2.88 kW load capacity - backup power for your valuable electronics
- 2.88 kVA load capacity provides sufficient backup during power failures
Technical Specifications
| Controls/Indicators | |

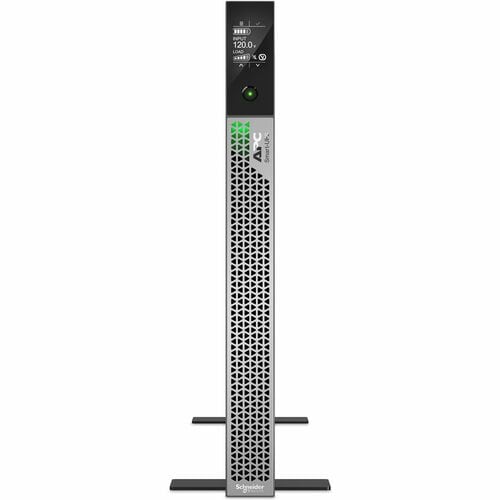

| Status Indicators | Multifunction LCD |
| Management | |
| Network Management | Network-MS Card |
| Warranty | |
| Additional Warranty Information | 5 years repair or replace |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1123.2 kJ |
| DC System Voltage | 50 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | SRTL3KRM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra 3000VA Rack/Tower UPS |
| Product Line | Smart-UPS Ultra |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 125 V |
| 120 V | |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.88 kW |
| Physical Characteristics | |
| Weight (Approximate) | 35.05 lb (15898.41 g) |

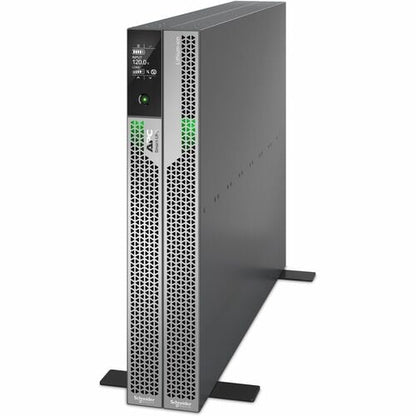

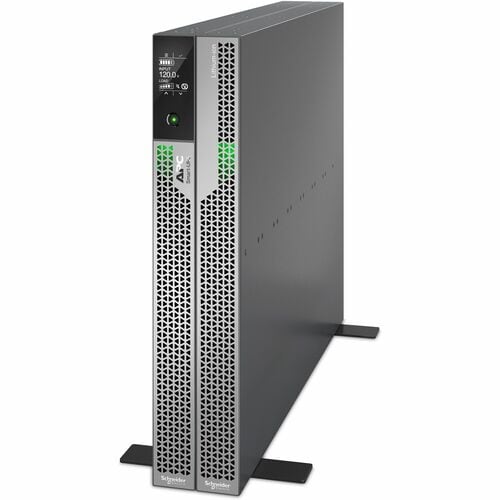

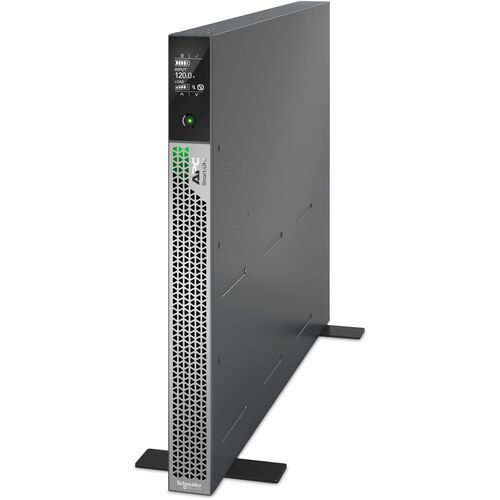

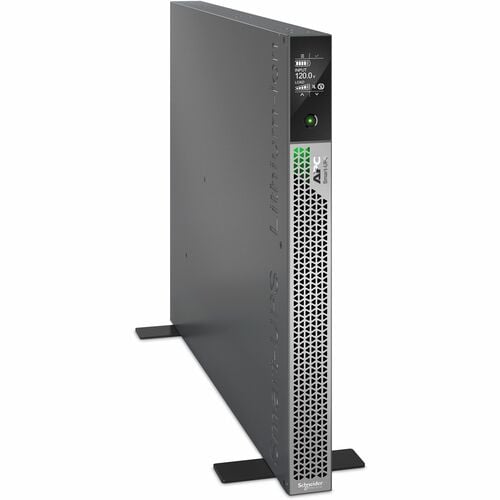

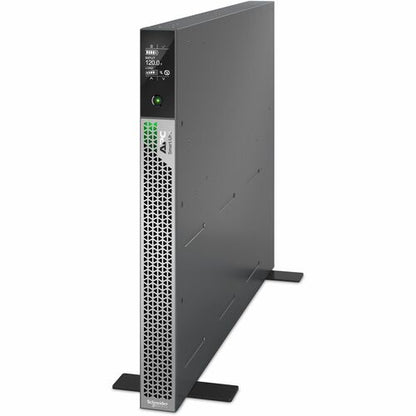

| Form Factor | Rack/Tower |
| Rack Height | 1U |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Product Color | Silver Gray |
| Color Family | Silver |
| Mounting Preference | No Preference |
| Technical Information | |
| Application/Usage | Voice/Data Network |
| Light Industrial Application | |
| Medical | |
| Retail and Wholesale | |
| Server | |

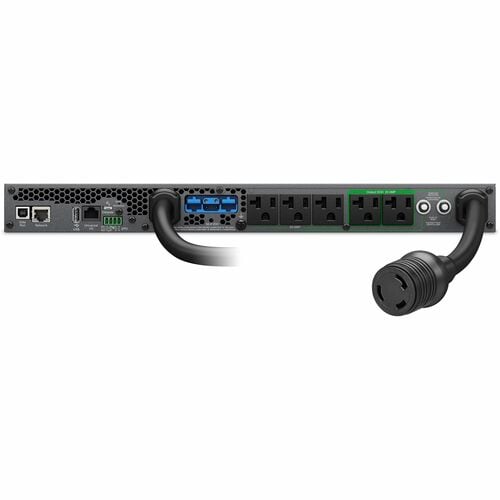

| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-20R | |
| Number of Battery & Surge Outlets | 6 |
| Receptacle Detail | 1 x NEMA L5-30R |
| 5 x NEMA 5-20R | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=540735187&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=540735187&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
