About the product

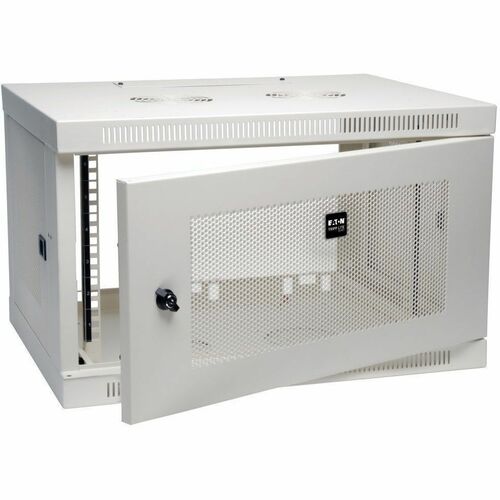

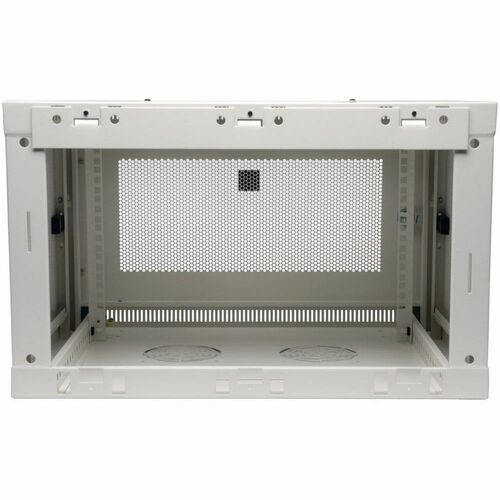

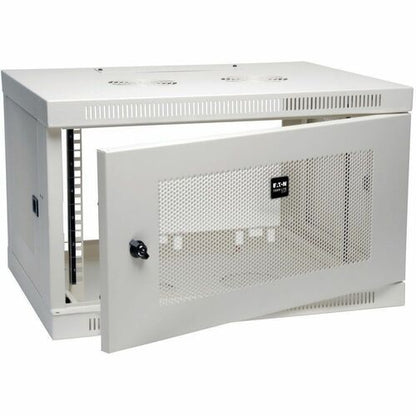

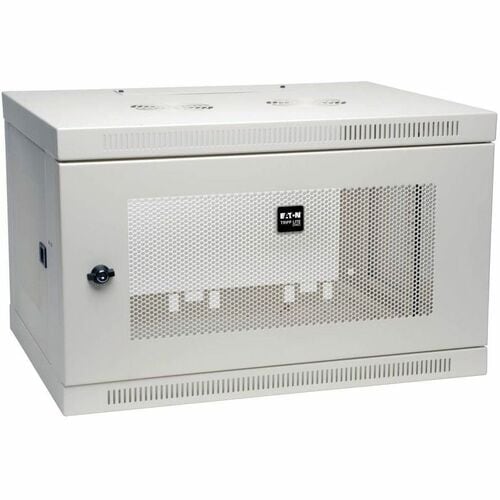

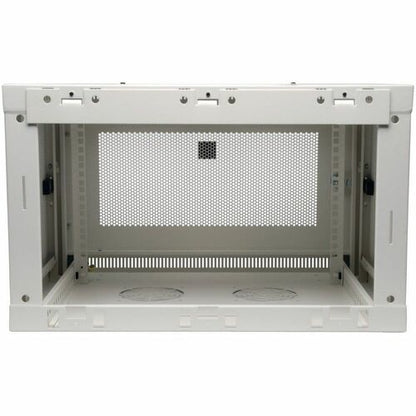

The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. The SRW6UW comes with a 5-year product warranty.
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool

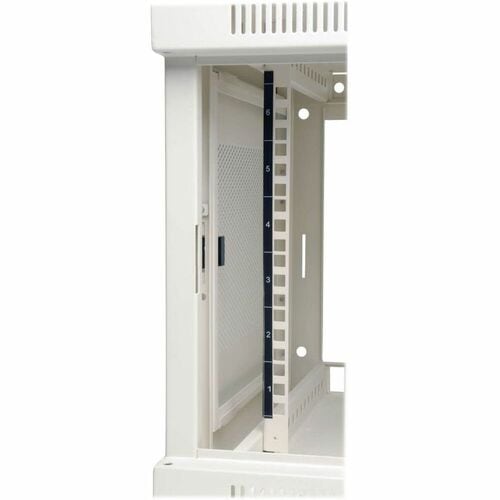

- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Technical Specifications
| Technical Information | |
| Features | Cable Management |
| Front Rail | Yes |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRW6UW |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRW6UW |
| Product Name | White SmartRack 6U Wall-Mount Rack Enclosure Cabinet |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 6U |
| Height | 14.50" (368.30 mm) |
| Width | 23.50" (596.90 mm) |
| Depth | 17.50" (444.50 mm) |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Rack Depth | 16.50" (419.10 mm) |
| Product Color | White |
| Color Family | White |
