About the product

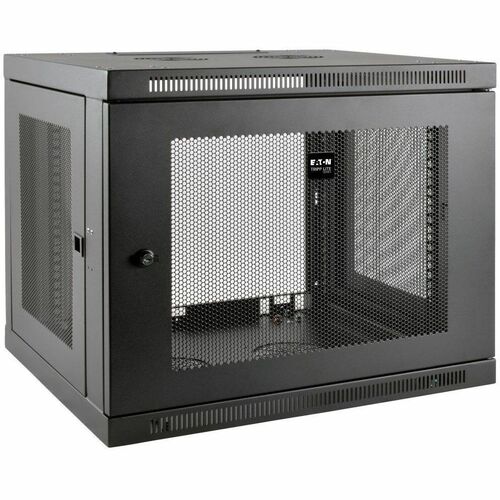

The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

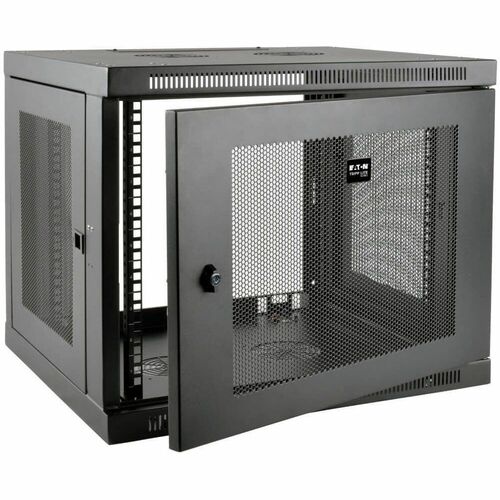

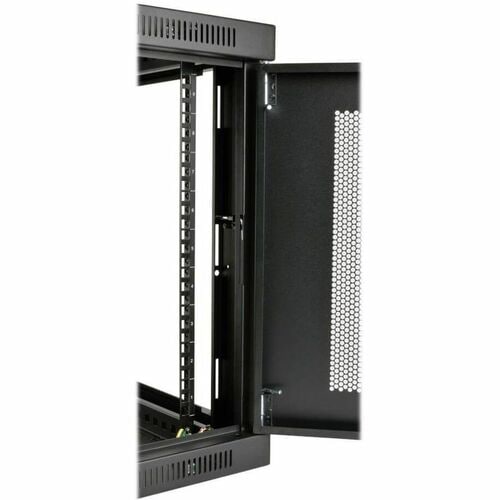

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

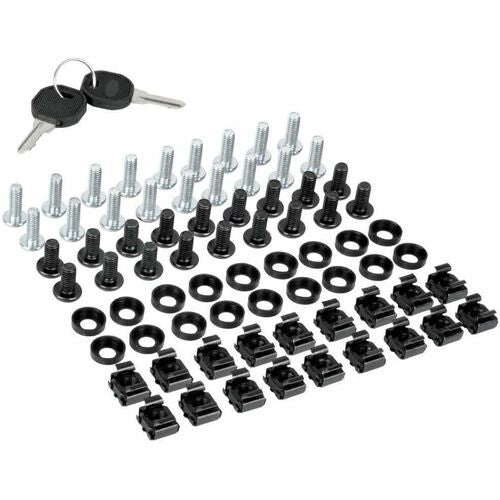

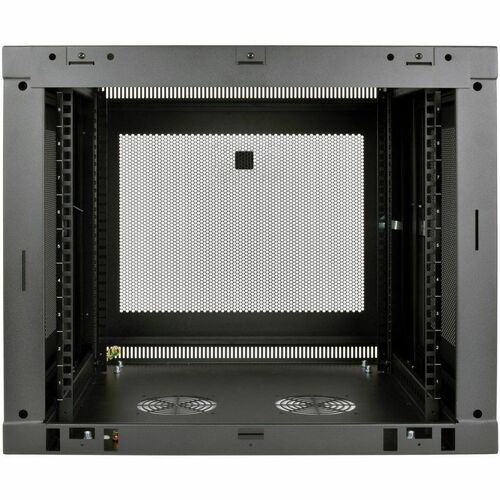

The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 9U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Technical Specifications
| Technical Information | |
| Application/Usage | LAN Switch |
| Patch Panel | |
| Features | Cable Management |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRW9UDP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRW9UDP |
| Product Name | SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 51.80 lb (23496.08 g) |
| Form Factor | Wall Mountable |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 9U |
| Height | 19.88" (504.95 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 21.70" (551.18 mm) |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Rack Depth | 20.50" (520.70 mm) |
| Product Color | Black |
| Color Family | Black |
