About the product

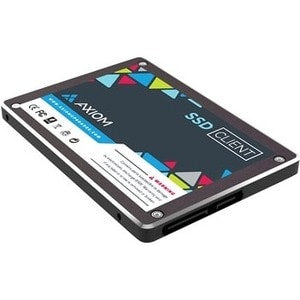

The Axiom C565e Series SSD features high quality 3D TLC NAND flash and the security features of OPAL 2.0/256-bit AES Encryption these SSDs are loaded with enhancements to promote a secure, high performing and reliable computing environment.
The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are realized when upgrading systems to an Axiom SSD. External DRAM and SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments. Includes 2.5" to 3.5" bracket adapter to fit most desktop applications.
Fast Performance
Secure
Reliable
Reduced Power Requirements
Improved Operation
The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are realized when upgrading systems to an Axiom SSD. External DRAM and SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments. Includes 2.5" to 3.5" bracket adapter to fit most desktop applications.
Fast Performance
- Highest read and write speeds in its class
- Virtually zero spin up or seek times
- Zero rotational latency
- High sustained data transfer rate
Secure
- OPAL 2.0 Compliant
- 256-bit AES compliant Data Encryption
Reliable
- TRIM, Wear Leveling, StaticDataRefresh and LDPC ECC functions optimize data processing efficiency
- S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health
- No volatile memory elements
- Improved resistance to shock & vibration
- Predictable and manageable failure modes reduce IT costs
Reduced Power Requirements
- No moving parts
- Super-low operating and standby power needs
- Power requirements notably reduced over a typical HD
Improved Operation
- Noise and vibration free
- Virtually no heat emissions
- Have data stored faster with SATA/600 interface that optimizes burst performance
- The high-read speed of 565 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 530 MB/s, get a quick response when updating or transferring files
- Store as many documents, pictures and videos as you need with 1 TB capacity
- With 256-bit encryption protect all your valuable data and keep your personal files safe & secure
Technical Specifications
| Power Description | |
| Operating Power Consumption | 2.10 W |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Technical Information | |
| Storage Capacity | 1 TB |
| Encryption Standard | 256-bit |
| Drive Performance | |
| Maximum Read Transfer Rate | 565 MB/s |
| Maximum Write Transfer Rate | 530 MB/s |
| Endurance (DWPD) | 0.27 |
| Endurance (TBW) | 300 TB |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Drive Carrier | Yes |
| Drive Carrier Width | 3.5" |
| Miscellaneous | |
| Compatibility |
https://www.axiomupgrades.com/productdetail/SSD2558HX1TB-AX/ |
| Device Supported | Notebook |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | SSD2558HX1TB-AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Manufacturer | Axiom Memory Solutions |
| Product Name | C565e Series Mobile SSD |
| Product Series | C565e |
| Brand Name | Axiom |
