Axiom Memory

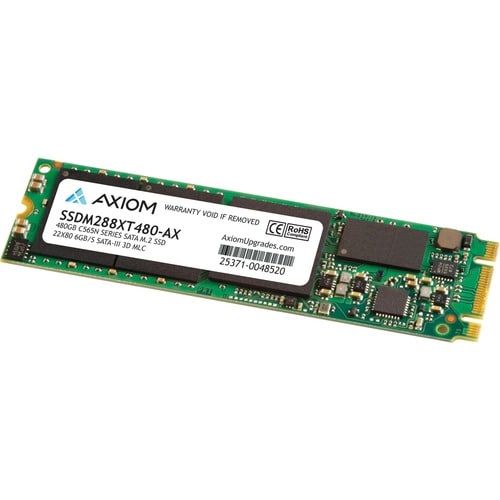

480GB C565N SERIES SATA M.2 22X80 SSD 6GB/S SATA

480GB C565N SERIES SATA M.2 22X80 SSD 6GB/S SATA

Regular price $73.84 CAD
Regular price $84.91 CAD Sale price $73.84 CAD
-13% OFF Ask for quote
Shipping calculated at checkout.
Axiom 480GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III - 565 MB/s Maximum Read Transfer Rate - 3 Year Warranty

VPN:SSDM288XT480-AX SKU:RSC861259 UPC:841280144837

  • Have data stored faster with SATA/600 interface that optimizes burst performance
  • The high-read speed of 565 MB/s maximizes system performance and saves time while you are doing complex tasks
  • With the high-write speed of 525 MB/s, get a quick response when updating or transferring files
  • Volume discount available - Ask for quote..

    View full details

    Recently Viewed

    480GB C565N SERIES SATA M.2 22X80 SSD 6GB/S SATA

    Product information summary

    480GB C565N SERIES SATA M.2 22X80 SSD 6GB/S SATA

    About the product

    The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.

    Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS.

    A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.

    • Have data stored faster with SATA/600 interface that optimizes burst performance
    • The high-read speed of 565 MB/s maximizes system performance and saves time while you are doing complex tasks
    • With the high-write speed of 525 MB/s, get a quick response when updating or transferring files
    • Provides sufficient storage capacity of 480 GB for your computer

    Technical Specifications

    Network & Communication
    Wireless LANNo
    Power Description
    Operating Power Consumption2.10 W
    Technical Information
    Storage Capacity480 GB
    Drive Performance
    Maximum Read Transfer Rate565 MB/s
    Maximum Write Transfer Rate525 MB/s
    Interfaces/Ports
    Drive InterfaceSATA
    Drive Interface StandardSATA/600
    Physical Characteristics
    Weight (Approximate)1.41 oz (39.916129 g)
    Drive TypeInternal
    Form FactorM.2 2280
    Width0.87" (22 mm)
    Depth3.15" (80 mm)
    Miscellaneous
    Compatibility
    • ASUS - VivoMini UN65H
    • Acer - Veriton N Series N4640G Mini
    • Dell - Inspiron 13 5000 (5368)
    • Dell - Inspiron 13 5000 (5370)
    • Dell - Inspiron 13 5000 (5378)
    • Dell - Inspiron 13 7000 (7368)
    • Dell - Inspiron 13 7000 (7378)
    • Dell - Latitude 12 (5280)
    • Dell - Latitude 12 (5289) 2-in-1
    • Dell - Latitude 12 (7280)
    • Dell - Latitude 12 7000 (E7270)
    • Dell - Latitude 13 (7350)
    • Dell - Latitude 13 (7370)
    • Dell - Latitude 13 (7380)
    • Dell - Latitude 14 (5480)
    • Dell - Latitude 14 (5490)
    • Dell - Latitude 14 (7490)
    • Dell - Latitude 14 5000 (E5470) with 1 SODIMM
    • Dell - Latitude 14 5000 (E5470) with 2 SODIMMs
    • Dell - Latitude 14 7000 (E7470)
    • Dell - Latitude 14 7000 Series (7480)
    • Dell - Latitude 15 (5580)
    • Dell - Latitude 15 (5590)
    • Dell - Latitude 15 (5591)
    • Dell - Latitude 15 5000 (E5570)
    • Dell - Latitude 3490
    • Dell - Latitude 3590
    • Dell - Latitude 5290
    • Dell - Latitude 7389 (2-in-1)
    • Dell - Latitude 7390
    • Dell - OptiPlex 7040 MT
    • Dell - OptiPlex 7040 Micro
    • Dell - OptiPlex 7040 SFF
    • Dell - OptiPlex 7050 SFF / Tower
    • Dell - OptiPlex 7060 Micro
    • Dell - OptiPlex 7060 Small Form Factor (SFF) / Tower
    • Dell - OptiPlex 7440 AIO
    • Dell - OptiPlex 7450 All-in-One Desktop
    • Dell - Precision 15 3000 Series (3510)
    • Dell - Precision 15 7000 Series (7510)
    • Dell - Precision 3520
    • Dell - Precision 7710
    • Dell - XPS 13 (9370)
    • HP-Compaq - 250 G5 (Core i3-5005U, DDR3)
    • HP-Compaq - 250 G5 (Pentium N3710/Celeron N3010, DDR3)
    • HP-Compaq - 250 G5 (i3-6100U/i5-6200U/i7-6500U, DDR4)
    https://www.axiomupgrades.com/productdetail/SSDM288XT120-AX/
    Device SupportedDesktop PC
    Motherboard
    Environmentally FriendlyYes
    TAA CompliantYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    General Information
    Product TypeSolid State Drive
    Manufacturer Part NumberSSDM288XT480-AX
    Manufacturer Website Addresshttp://search.axiomupgrades.com
    ManufacturerAxiom Memory Solutions
    Product NameC565n Series M.2 SSD
    Product SeriesC565n
    Brand NameAxiom
