About the product

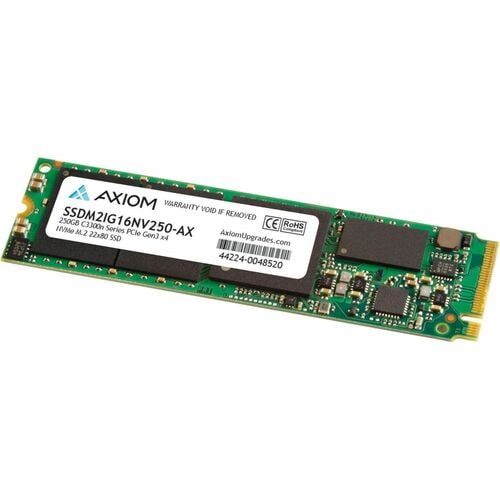

The Axiom C3300n NVMe M.2 combines performance and reliability with low power operation to make the ideal mobile drive. Engineered for intensive workloads, the Axiom C3300n M.2 2280 PCIe Gen3 x4 NVMe SSD offers next-level performance with speeds up to 3300MB/s read and 2900MB/s write. It's supported by the PCIe Gen3 x4 NVMe 1.4 technology and built with the latest 3D NAND flash.
- Built-in LDPC ECC provides the most powerful data correction on todays market
- End-to-end data path protection
- Global wear-leveling evens the program/erase counts across data blocks to extend lifespan
- NVMe Security Erase support
- High-reliability 3D NAND flash
- NVMe protocol 1.4 compliant
Technical Specifications
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 3.0 x4 |
| Technical Information | |
| Storage Capacity | 250 GB |
| Encryption Standard | 512-bit |
| Physical Characteristics | |
| Weight (Approximate) | 1.41 oz (39.916129 g) |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Length | 3.15" (80 mm) |
| Width | 0.87" (22 mm) |
| Drive Performance | |
| Maximum Read Transfer Rate | 3100 MB/s |
| Maximum Write Transfer Rate | 1400 MB/s |
| Random 4KB Read | 100000IOPS |
| Random 4KB Write | 275000IOPS |
| Endurance (DWPD) | 0.46 |
| Endurance (TBW) | 125 TB |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | SSDM2IG16NV250AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Manufacturer | Axiom Memory Solutions |
| Product Name | C3300n Series NVMe M.2 SSD |
| Product Series | C3300n |
| Brand Name | Axiom |
| Miscellaneous | |
| Compatibility | Axiom Servers: |
| Device Supported | All-in-One PC |
| Notebook | |
| Workstation | |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
