About the product

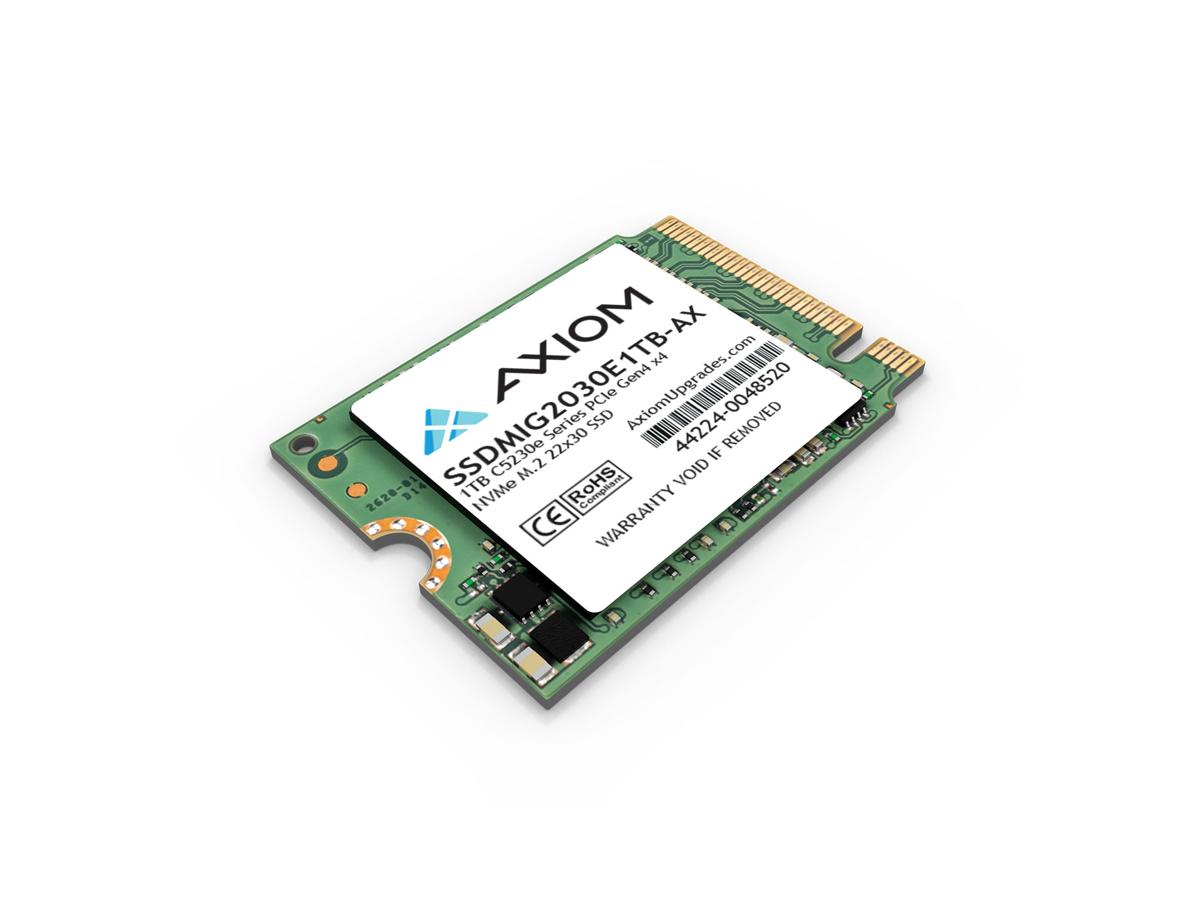

Axiom 1Tb C5230E Series Pcie Gen4 X4 Nvme M.2 22X30 Ssd - 3D Nand
Technical Specifications
| Primary Information | |
| Hard Drive / Size: | M.2 |
| SSD Capacity: | 1 TB |
| Flash Type: | 3D NAND |
| Hard Drive / Interface Type: | PCIe NVMe Gen4 x4 |
| Max 4KB Random Read: | 195K IOPS |
| Max 4KB Random Write: | 289K IOPS |
| MTBF: | 1.5 million device hours |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | +3.3VDC |
| S.M.A.R.T. Support: | Yes |
| Width: | 22 Mm |
| Depth: | 30 Mm |
| Weight: | 6.8 g |
| Service & Support Type: | 3 Year Limited Warranty |
| Features: | The Axiom High Speed C5230e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5230e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x30mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 250GB, 500GB, 1TB and 2TB capacities. |
| RoHS: | Y |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 70 Celsius |
| Performance | |
| Max Sequential Read: | 5200 MB/s |
| Max Sequential Write: | 4370 MB/s |
| Endurance: | TBW: 500TBDWPD: .446 (3y) |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43201830 |
