Axiom Memory

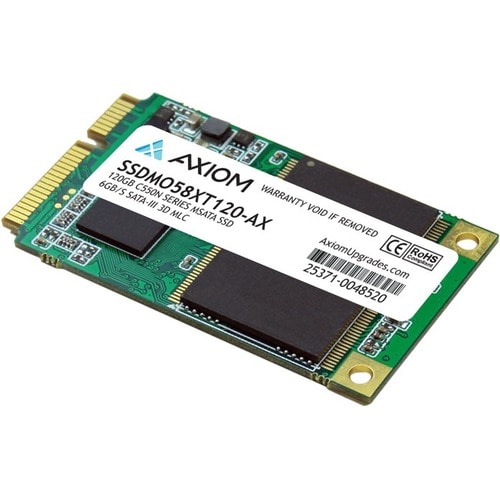

120GB C550N SERIES MSATA SSD 6GB/S SATA-III
120GB C550N SERIES MSATA SSD 6GB/S SATA-III
VPN:SSDMO58XT120-AX SKU:RSC222156 UPC:841280144257
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
120GB C550N SERIES MSATA SSD 6GB/S SATA-III
Product information summary

About the product
The Axiom C550n Series mSATA SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.
Providing an industry-leading bandwidth of more than 550MB/sec transfers, the Axiom C550n Series mSATA SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 76,000 IOPS.
A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.
- Silicon Motion SM2258 controller
- SATA 3.1 Compliant
- SATA 6.0Gb/s with 3Gb/s and 1.5Gb/s support
- ATA/ATAPI-8-ACS3 command set compliant
- SLC caching accelerates burst performance
- Direct-to-MLC mode
- Global wear leveling
- StaticDataRefresh technology
- Intelligent garbage collection
- Industry-standard, 512-byte sector size support
Technical Specifications
Network & Communication | |
Wireless LAN | No |
Power Description | |
Operating Power Consumption | 2.10 W |
Technical Information | |
Storage Capacity | 120 GB |
Drive Performance | |
Maximum Read Transfer Rate | 295 MB/s |
Maximum Write Transfer Rate | 315 MB/s |
Interfaces/Ports | |
Drive Interface | SATA |
Drive Interface Standard | SATA/600 |
General Information | |
Product Type | Solid State Drive |
Manufacturer Part Number | SSDMO58XT120-AX |
Manufacturer Website Address | http://search.axiomupgrades.com |
Manufacturer | Axiom Memory Solutions |
Product Name | C550n Series mSATA SSD |
Product Series | C550n |
Brand Name | Axiom |
Physical Characteristics | |
Weight (Approximate) | 0.21 oz (5.896701 g) |
Drive Type | Internal |
Form Factor | mSATA (MO-300) |
Height | 0.19" (4.80 mm) |
Width | 1.18" (30 mm) |
Depth | 2" (50.80 mm) |
Hot Pluggable | Yes |
Miscellaneous | |
Compatibility |
|
Device Supported | Motherboard |
Notebook | |
Thin Client | |
Desktop PC | |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
