Startech.Com 1 Port 2.5Gbps Poe Network Card, Pcie Ethernet Card W/Rj45 Port, 30W 802.3At Poe Nic For Desktops/Servers, Network Poe Lan Adapter W/Low-Profile Bracket Included - Nbase-T, Windows/Linux Support (St1000Pexpse) - Network Adapter - Pcie 2.1 - 2.5Gbase-T (Poe+) X 1

VPN:ST1000PEXPSE SKU:T795301 UPC:65030893107

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Startech.Com 1 Port 2.5Gbps Poe Network Card, Pcie Ethernet Card W

About the product

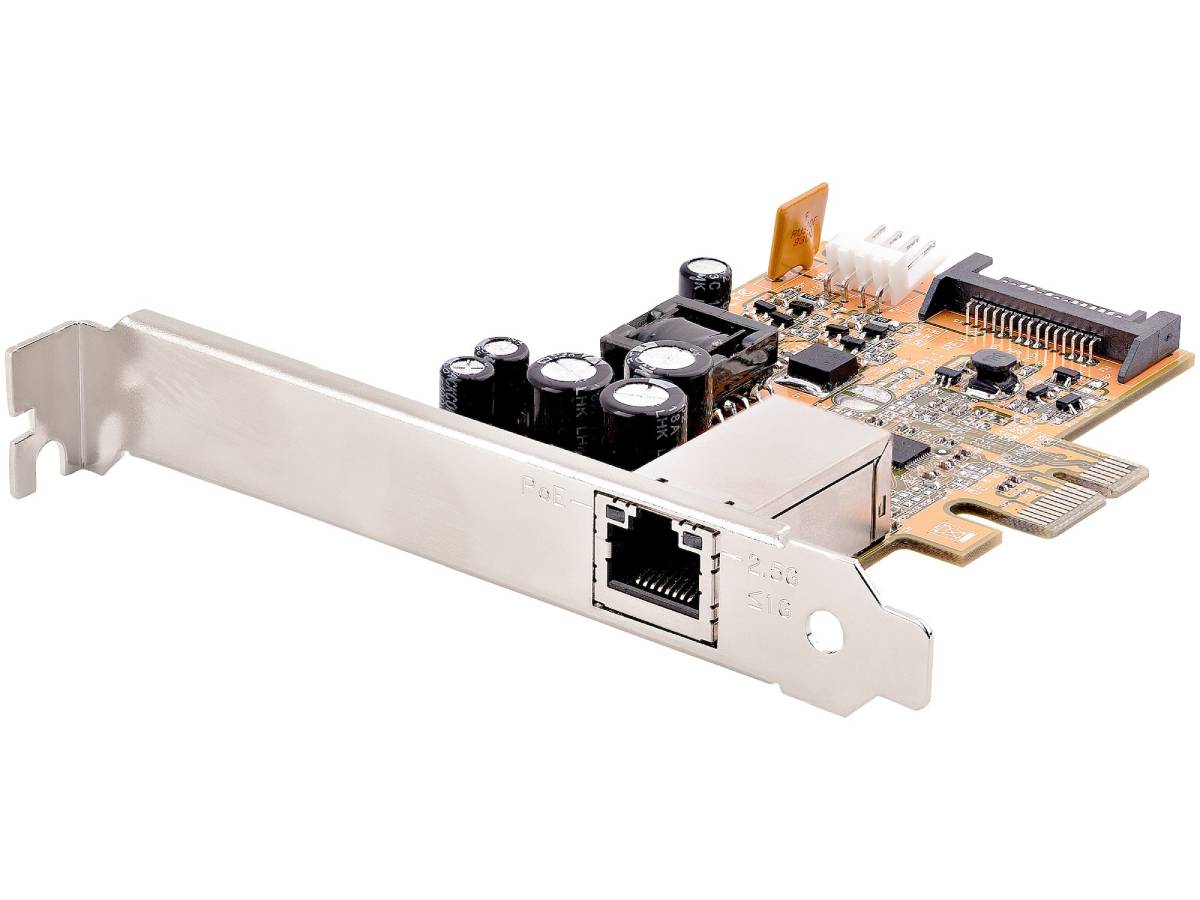

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.

Technical Specifications

Primary Information
Product Description:	StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45 Port, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket Included - NBASE-T, Windows/Linux Support (ST1000PEXPSE) - network adapter - PCIe 2.1 - 2.5GBase-T (PoE+) x 1
Device Type:	Network adapter
Form Factor:	Plug-in card - low profile
Interface (Bus) Type:	PCI Express 2.1 x1
Ports:	2.5GBase-T (PoE+) x 1
Dimensions (WxDxH):	0.6 in x 3.7 in x 2.5 in
Weight:	7.76 oz
Cabling Type:	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T
Data Link Protocol:	10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Data Transfer Rate:	2.5 Gbps
Capacity:	Jumbo frame size: 16000
Processor:	1 x Realtek Semiconductor RTL8125B
Compliant Standards:	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az
System Requirements:	Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only)
Manufacturer Warranty:	2-year warranty
General
Device Type:	Network adapter
Form Factor:	Plug-in card - low profile
Interface (Bus) Type:	PCI Express 2.1 x1
Networking
Ports:	2.5GBase-T (PoE+) x 1
Connectivity Technology:	Wired
Cabling Type:	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Data Transfer Rate:	2.5 Gbps
Capacity:	Jumbo frame size: 16000
Status Indicators:	PoE, link
Features:	PoE, EEE, VLAN Tagging, WOL, flow control, Auto MDIX, full duplex capability, PXE boot, 30W PoE+ power budget, PSE, RealWoW! Technology
Compliant Standards:	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az
Processor / Memory
Processor:	1 x Realtek Semiconductor RTL8125B
Expansion / Connectivity
Interfaces:	1 x 1/2.5GBase-T (PoE+) - RJ-45 ¦ 1 x SATA power - 15 pin Serial ATA power ¦ 1 x SP4 power - 4 pin connector - male
Miscellaneous
Included Accessories:	Low-profile bracket, full-height bracket
Compliant Standards:	RoHS, RCM, WEEE
Software / System Requirements
Software Included:	Drivers & Utilities
OS Required:	Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only)
