About the product

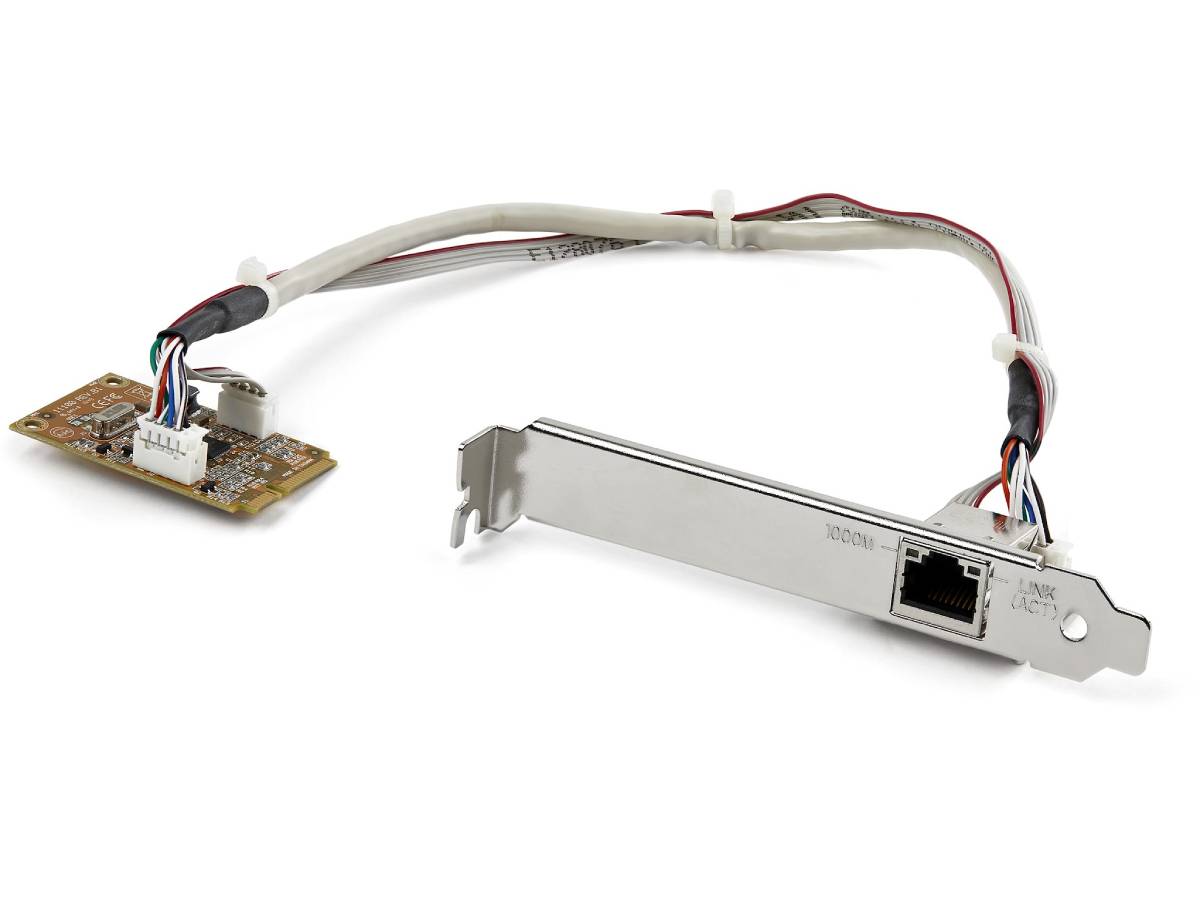

Add a Gigabit RJ45 port through a Mini PCI Express slot. The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards. Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios. Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com Mini PCIe Card - 10/100/1000Mbps RJ45 Port - IEEE 802.3 - Jumbo Frame - Network Card (ST1000SMPEX) - network adapter - PCIe Mini Card - Gigabit Ethernet |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express Mini Card |
| Ports: | Gigabit Ethernet |
| Dimensions (WxDxH): | 0.2 in x 2 in x 1.2 in |
| Weight: | 5.29 oz |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate: | 1 Gbps |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| System Requirements: | Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.4.x - 10.5.x, Linux 2.4.x to 4.11.x LTS versions only |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express Mini Card |
| Networking | |
| Ports: | Gigabit Ethernet |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | Link/activity |
| Features: | Full duplex capability, remote Wake Up, VLAN support, WOL, auto-uplink (auto MDI/MDI-X), Jumbo Frames support |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Compatible Slots: | 1 x PCI Express Mini Card - full-length |
| Miscellaneous | |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| OS Required: | Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.4.x - 10.5.x, Linux 2.4.x to 4.11.x LTS versions only |
| Dimensions & Weight | |
| Width: | 0.2 in |
| Depth: | 2 in |
| Height: | 1.2 in |
| Weight: | 5.29 oz |
