About the product

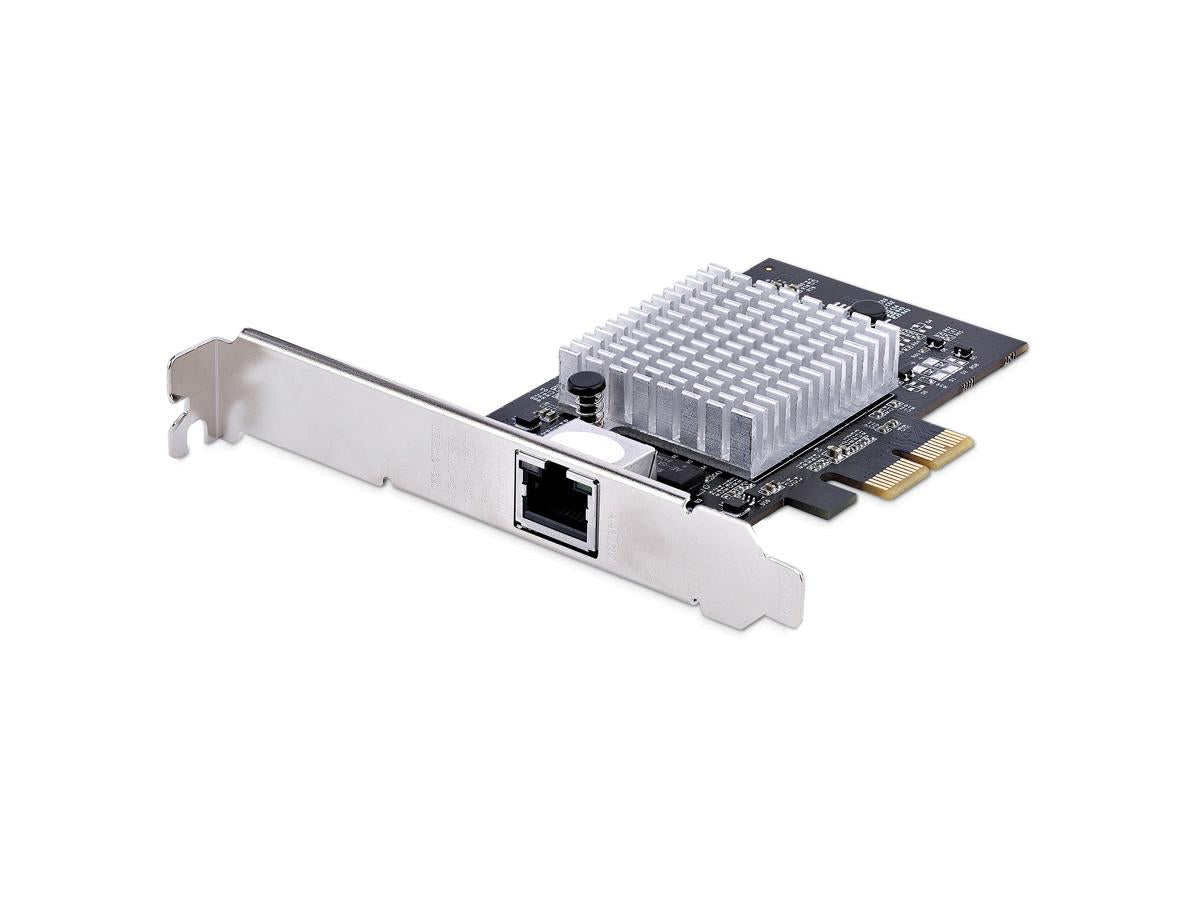

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco ; HPE ; and Aruba .
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Low Profile PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2) - network adapter - PCIe 3.0 x2 - 10 Gigabit Ethernet x 1 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 3.0 x2 |
| PCI Specification Revision: | PCIe 3.0, PCIe 4.0 |
| Ports: | 10 Gigabit Ethernet x 1 |
| Dimensions (WxDxH): | 0.6 in x 4.2 in x 2.2 in |
| Weight: | 2.57 oz |
| Cabling Type: | NBase-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE |
| Data Transfer Rate: | 10 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP |
| Processor: | 1 x Marvell AQC113CS |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| Color: | Black |
| System Requirements: | Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 3.0 x2 |
| PCI Specification Revision: | PCIe 3.0, PCIe 4.0 |
| Networking | |
| Ports: | 10 Gigabit Ethernet x 1 |
| Connectivity Technology: | Wired |
| Cabling Type: | NBase-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate: | 10 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP |
| Status Indicators: | Link/activity |
| Features: | Auto MDIX, PXE boot, full duplex capability, 16 KB Jumbo Frame, AVB, VLAN Tagging, EEE, secure boot |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az |
| Processor / Memory | |
| Processor: | 1 x Marvell AQC113CS |
| Expansion / Connectivity | |
| Interfaces: | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket |
| Compliant Standards: | RoHS, RCM |
| Color: | Black |
| Software / System Requirements | |
| OS Required: | Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only |
