About the product
This HDMI Over CAT6 extendertransmitsyour HDMI audio/video signal to a remote location up to 100 m (328 ft.)away. Get4K at 60Hz from 70 m (230 ft.)away This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.)away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances
up to 100 m (328 ft.)from your HDMI source. With full support for your HDMI 2.0 equipment, including4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color. Simplify your setup The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that's already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation. The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support. More from the Manufacturer More from the ManufacturerGet astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 70 m (230 ft.) and 1080p 60Hz resolutions at up to 100 m (328 ft.)Hassle-free setup with video and power over a single CAT5e or CAT6 cableSleek professional installation with optional mounting hardware includedRemotely control your video source from the location of your remote display, with support for IR extension
Technical Specifications
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST121HDBT20L |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.) |
| Brand Name | StarTech.com |
| Miscellaneous | |

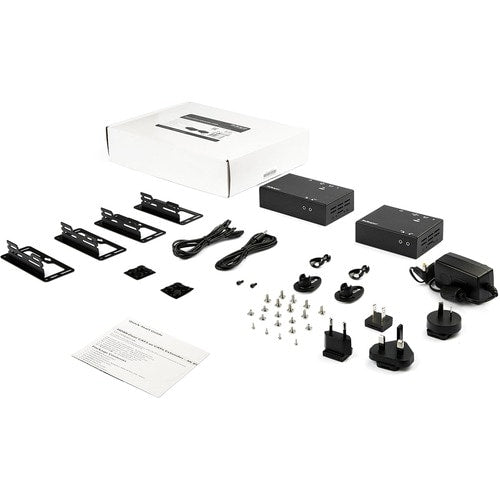

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 3" (76.20 mm) |
| Transmitter Depth | 4" (101.60 mm) |
| Receiver Height | 1" (25.40 mm) |
| Receiver Width | 3" (76.20 mm) |
| Receiver Depth | 4" (101.60 mm) |
| Transmitter Weight (Approximate) | 3.88 oz (110 g) |
| Receiver Weight (Approximate) | 3.88 oz (110 g) |
| Product Color | Black |
| Color Family | Black |
