Audi Video Cables

Expected delivery 3 to 7 business days (exceptions applied)

Startech

StarTech.com HDMI over CAT6 Extender with 4

StarTech.com HDMI over CAT6 Extender with 4

Regular price $301.01 CAD
Regular price $337.13 CAD Sale price $301.01 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
StarTech.com HDMI over CAT6 Extender with 4-port USB Hub - Remote HDMI over CAT5 or CAT6 - 165 ft (50m) - 1080p - Extend 1080p video and four USB peripheral devices to a remote location over standard CAT5 or CAT6 cabling - HDMI over CAT5 Extender - HDMI extender - HDMI USB extender - 4-port USB hub - Digital signage extender - Resolution support up to 1920x1200

VPN:ST121USBHD SKU:CBAV8443F CPU:65030862363

Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extensionEasy remote peripheral integration, with a built-in 4-port USB hubTidy, professional installation using the included mounting hardware

Volume discount available - Ask for quote..

View full details

Recently Viewed

StarTech.com HDMI over CAT6 Extender with 4

Product information summary

StarTech.com HDMI over CAT6 Extender with 4

About the product

This HDMI® extender kit lets you transmit yourHD video sourceto your remote HDMIdisplay at a distance of up to 165 ft. (50 m) away. 1080p video can be extended 131 ft. (40 m) using shielded CAT 6 cabling. The extender features a built-in4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location. Crystal-clear picture quality Using this HDMI extender, you can maintain the quality ofyour high-definition video signal along with theaccompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supportsresolutions up to 1920x1200 or 1080p -perfectfor dazzling your audience in remote digital-signage applications in hospitalsor at shopping centers. Hassle-free remote USB integration The built-in 4-port USB 2.0 hub lets you remotely connect

access or control up to four USB devices located at your remote display -great forflash drives, printers, scanners, external hard drives andI/O devices.Remote USB extension also enables you to remotelycontrol your sourcedevice, which is idealfor adding touchscreen interfaces at your display in market or POS kiosks. Easy installation and setup For hassle-freesetupthe HDMI extender offerseasy plug-and-play installation with noadditional software or drivers required. Plus, the extender passes theEDID information included inyour HDMIsignal,and automatically adjusts video equalizationensuring you won't have to configure it manually. Mounting hardware is also included, for a tidy and professional installation. Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m. The ST121USBHD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support. More from the Manufacturer More from the ManufacturerCrystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extensionEasy remote peripheral integration, with a built-in 4-port USB hubTidy, professional installation using the included mounting hardwareExtends HDMI video and four USB peripheral devices up to 165 ftSupports CAT5e and CAT6 Ethernet cableHDMI transmitter and receiver included

Technical Specifications

Media & Performance
Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair
Video
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Miscellaneous

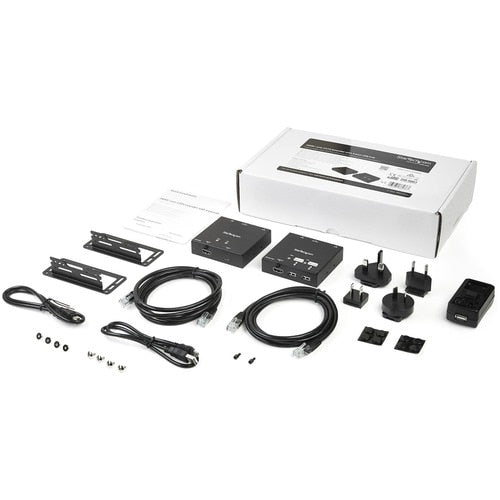

Package Contents
  • 1 x HDMI over CAT6 Transmitter
  • 1 x HDMI over CAT6 Receiver
  • 2 x Ethernet Cables
  • 2 x USB to Mini-USB Cables
  • 1 X Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Mounting Kit
  • 1 X Quick Install Guide
Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance260 ft (79248 mm)
Number of Output Devices Supported1
Number of Input Devices Supported1
General Information
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberST121USBHD
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Kit
ManufacturerStarTech.com
Product NameHDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p
Brand NameStarTech.com
Physical Characteristics
Transmitter Height0.80" (20.32 mm)
Transmitter Width3.20" (81.28 mm)
Transmitter Depth3.20" (81.28 mm)
Receiver Height0.80" (20.32 mm)
Receiver Width3.20" (81.28 mm)
Receiver Depth3.20" (81.28 mm)
Transmitter Weight (Approximate)1.01 lb (460 g)
Receiver Weight (Approximate)1.01 lb (460 g)
Interfaces/Ports
USBYes
Number of Network (RJ-45) Ports4
Network (RJ-45)Yes
Number of USB Ports5
Serial PortYes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
