Audi Video Cables

Expected delivery 3 to 7 business days (exceptions applied)

Startech

StarTech.com 8

StarTech.com 8

Regular price $278.10 CAD
Regular price $319.82 CAD Sale price $278.10 CAD
-13% OFF Ask for quote
Shipping calculated at checkout.
StarTech.com 8-Port 4K 60Hz HDMI Splitter - HDR Support - HDMI 2.0 Splitter - 7.1 Surround Sound Audio - Displays the same image with sound on 8 screens - Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma; up to 18Gbps (HDMI 2.0b) - HDR; HDCP 2.2 to HDCP 1.4 conversion; 7.1 surround sound audio - Passes EDID between video source and display (port 1)

VPN:ST128HD20 SKU:CBAV4285F CPU:65030876049

8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1

4 conversionEDID EMULATION: 1x8 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configuredAUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio

Volume discount available - Ask for quote..

View full details

Recently Viewed

StarTech.com 8

Product information summary

StarTech.com 8

About the product

This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio. \nSupports true 4K at 60Hz \nThis 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions

the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. \nNote: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2. \nWidely compatible \nThe splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. \nEasy installation and setup \nThe 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically. \nThe ST128HD20 is backed by a 2-year StarTech.com warranty. More from the Manufacturer More from the Manufacturer8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversionEDID EMULATION: 1x8 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configuredAUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master AudioLONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for eight TVs/projectors/monitors/displaysEASY SETUP: No drivers required for this 1-input 8-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible

Technical Specifications

Video
Maximum Video Resolution3840 × 2160
Power Description
Input Voltage230 V AC
120 V AC
Interfaces/Ports
Number of HDMI Inputs1
Number of HDMI Outputs8
HDMI InYes
HDMI OutYes
Physical Characteristics
Weight (Approximate)1.68 lb (762 g)
Length10.20" (259.08 mm)
Height1" (25.40 mm)
Width4.30" (109.22 mm)
General Information
Product TypeSignal Splitter
Manufacturer Part NumberST128HD20
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Each
ManufacturerStarTech.com
Product Name8-Port 4K 60Hz HDMI Splitter
Brand NameStarTech.com
Miscellaneous

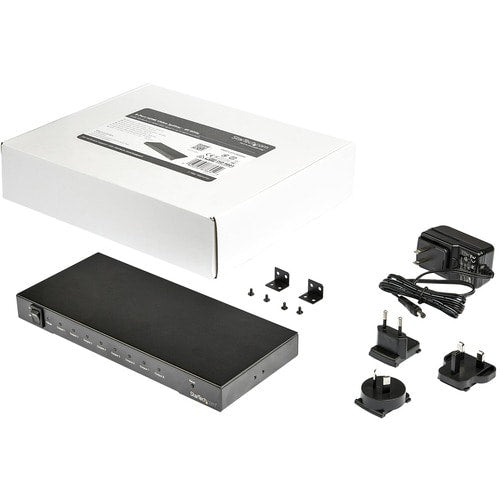

Package Contents
  • 8-Port 4K 60Hz HDMI Splitter
  • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
  • 1 x Set of Mounting Brackets
Country of OriginChina
Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
