About the product

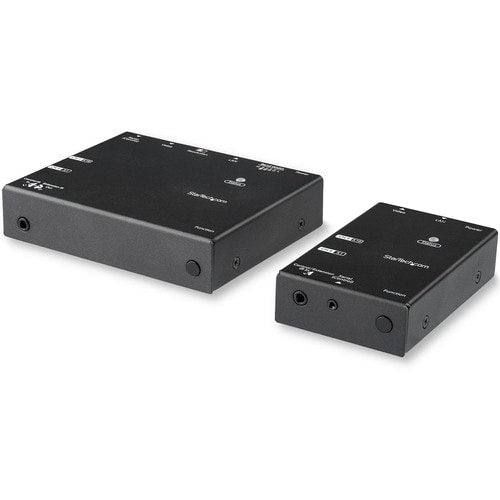

Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required. Reliably Extend Compressed HDMI Video with Bandwidth Efficiency This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth

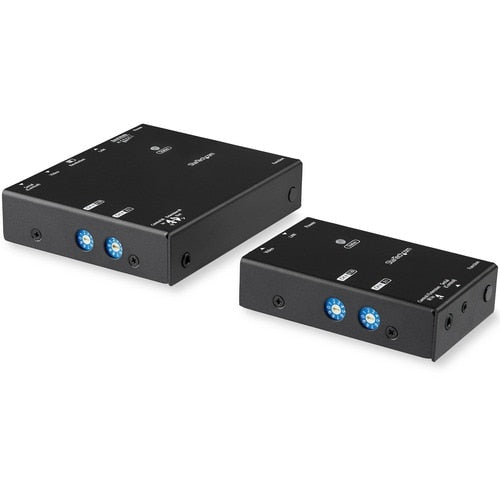

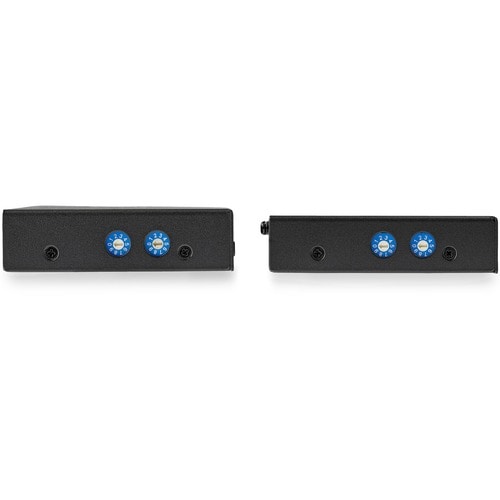

when in operation for each kit. Flexible & Scalable Deployment Options The HDMI over LAN extender offers many configurations to accommodate your set up. This HDMI video extender provides four ways to control your video network configurations. Rotary DIP switches located on the Tx and Rx Your computer connected to the transmitter or receiver via a serial cable Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone) Infrared (IR) remote control using the included receiver Comprehensive Product Testing & Expert Technical Support StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. More from the Manufacturer More from the ManufacturerEfficiently distribute video throughout your site using your local area networkEasily create your ideal digital signage with a versatile and scalable video distribution systemDeliver brilliant HD quality video with 1080p supportNewer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
Technical Specifications
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| General Information | |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST12MHDLNHK |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | HDMI Over IP Extender with Video Compression - 1080p |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rack-mountable | |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 7" (177.80 mm) |
| Transmitter Depth | 12.20" (309.88 mm) |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 7" (177.80 mm) |
| Receiver Depth | 12.20" (309.88 mm) |
| Transmitter Weight (Approximate) | 7.05 lb (3200 g) |
| Receiver Weight (Approximate) | 7.05 lb (3200 g) |
| Product Color | Black |
| Color Family | Black |
