About the product
The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations. Customize your video distribution with a scalable solution With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability

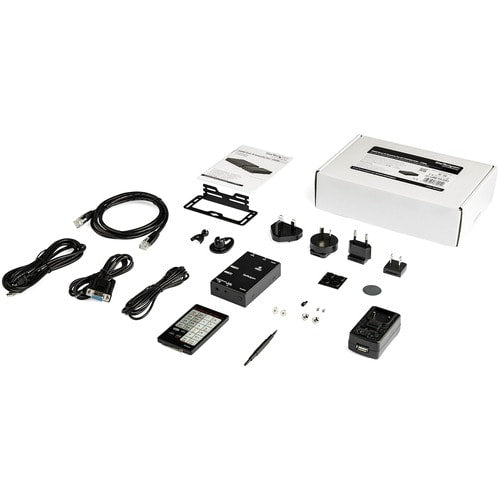

you can combine up to 99different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation. Get brilliant video at HD 1080p The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engagecustomers. Save your network bandwidth with video compression Unlike some video-over-IP solutions that consumeyour bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI usingcompression saves your network resources, avoiding the hassle of a separate video network. The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer More from the ManufacturerEfficiently distribute video throughout your site using your local area networkEasily create your ideal digital signage solution with a versatile and scalable video distribution systemBrilliantly maintain the HD picture quality of your video source with 1080p support
Technical Specifications
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Number of Output Devices Supported | 1 |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| General Information | |
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | ST12MHDLNHR |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | HDMI Over IP Receiver |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Desktop | |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 3.80" (96.52 mm) |
| Receiver Depth | 5.10" (129.54 mm) |
| Receiver Weight (Approximate) | 15.80 oz (448 g) |
| Product Color | Black |
| Color Family | Black |
