About the product

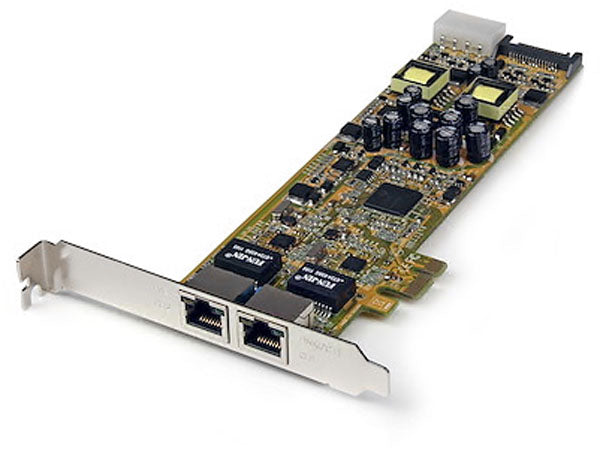

Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer. The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com Dual Port PCI Express Gigabit Ethernet Network Card Adapter - 2 Port PCIe NIC 10/100/100 Server Adapter with PoE PSE (ST2000PEXPSE) - network adapter - PCIe - Gigabit Ethernet x 2 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x1 |
| Ports: | Gigabit Ethernet x 2 |
| Dimensions (WxDxH): | 2.7 in x 7.7 in x 0.7 in |
| Weight: | 5.29 oz |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate: | 1 Gbps |
| Processor: | Realtek Semiconductor RTL8111E |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at |
| System Requirements: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x1 |
| Networking | |
| Ports: | Gigabit Ethernet x 2 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | PoE, link/activity |
| Features: | Full duplex capability, PoE, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at |
| Processor / Memory | |
| Processor: | Realtek Semiconductor RTL8111E |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1000Base-T (PoE) - RJ-45 |
| Compatible Slots: | 1 x PCI Express x1 |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
