About the product

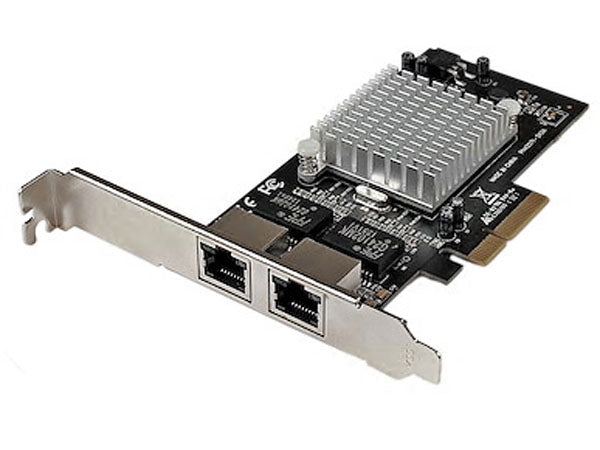

Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot. The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - 2 Port Network Card - Intel i350 NIC - GbE Network Card (ST2000SPEXI) - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 2 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 2.1 x4 |
| PCI Specification Revision: | PCIe 2.1 |
| Ports: | Gigabit Ethernet x 2 |
| Dimensions (WxDxH): | 2.6 in x 4.8 in x 0.7 in |
| Weight: | 3.17 oz |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate: | 1 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP |
| Processor: | Intel I350-AM2 |
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 1588-2008 |
| System Requirements: | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 2.1 x4 |
| PCI Specification Revision: | PCIe 2.1 |
| Networking | |
| Ports: | Gigabit Ethernet x 2 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP |
| Status Indicators: | Link/activity |
| Features: | Full duplex capability, WOL, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, teaming support, LSO, TSO, tagged VLAN, checksum offload support |
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 1588-2008 |
| Processor / Memory | |
| Processor: | Intel I350-AM2 |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
