About the product

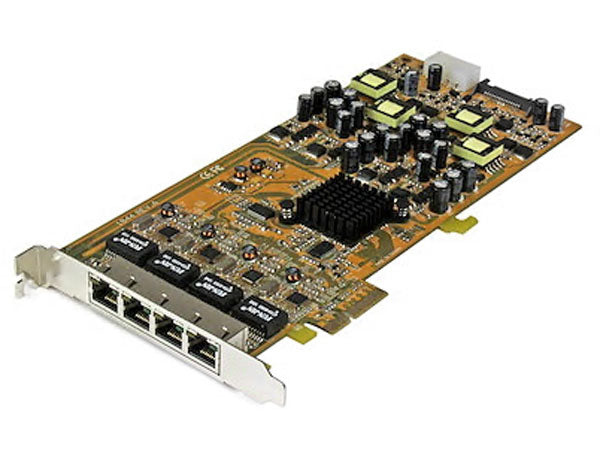

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer. The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com 4 Port Gigabit PoE (Power over Ethernet) Card - PCIe Network Card - PoE / PoE+ Up to 25W Per Port - PCIe NIC - Gigabit Ethernet Card (ST4000PEXPSE) - network adapter - PCIe x4 - Gigabit Ethernet x 4 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x4 |
| Ports: | Gigabit Ethernet x 4 |
| Dimensions (WxDxH): | 4.7 in x 9.4 in x 0.7 in |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate: | 1 Gbps |
| Processor: | Realtek Semiconductor RTL8111E |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| System Requirements: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express x4 |
| Networking | |
| Ports: | Gigabit Ethernet x 4 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Status Indicators: | PoE, link/activity |
| Features: | Full duplex capability, PoE, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, 48KB packet buffer |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Processor / Memory | |
| Processor: | Realtek Semiconductor RTL8111E |
| Expansion / Connectivity | |
| Interfaces: | 4 x 1000Base-T (PoE) - RJ-45 (external) ¦ 1 - 4 pin internal power (internal) ¦ 1 - 15 pin Serial ATA power (internal) |
| Miscellaneous | |
| Compliant Standards: | FCC, RoHS |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
