About the product
Tripp Lite's SU6000XFMRT2U step-down, isolation transformer converts 208 or 240V input from any generator, utility or UPS high voltage source to 120V low voltage output. 208 or 240V 30A input connection supported via hardware or included L6-30P input plug. 8 5-15/20R and 4 5-15R output receptacles accommodate 5-15P and 5-20P equipment plugs. Built-in L6-30R outlet supports one high voltage L6-30P plug. Supports 2U rackmount installation in 4 post racks with included brackets. Supports 2 post rackmount installation with optional 2POSTRMKITWM. Supports upright tower installation with 2-9USTAND.
- 6kVA / 6,000 watt step-down isolation transformer converts 208 or 240V to 120V
- Supports L6-30P plug in or hardwire installation

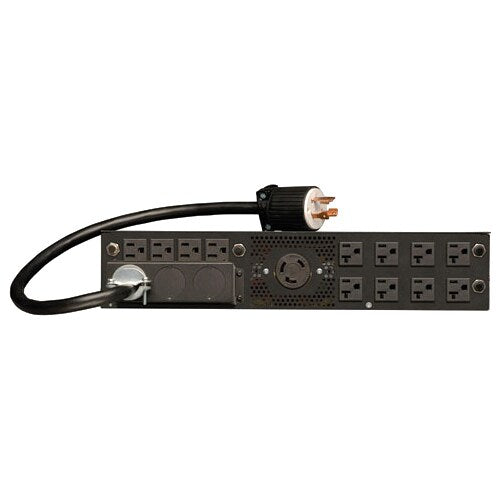

- 8 5-15/20R and 4 5-15R 120VAC outlets accommodate 5-15P and 5-20P equipment plugs, L6-30R outlet accommodates one high voltage plug
- Ideal means of converting UPS, utility, generator or other 208/240V input to 120VAC
- Supports 2U rackmount installation
Technical Specifications
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 120 V AC |
| 240 V AC | |
| 208 V AC | |
| Maximum Line Current | 30 A |
| Miscellaneous | |
| Additional Information | Material of construction: Steel |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 72.60 lb (32930.81 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 21.80" (553.72 mm) |
| Technical Information | |
| Power Rating | 6 kVA |
| Output Receptacle Detail | 1 x NEMA L6-30R |
| 4 x NEMA 5-15R | |
| 8 x NEMA 5-15/20R | |
| Output Receptacle Type | NEMA 5-15R |
| NEMA L6-30R | |
| NEMA 5-15/20R | |
| General Information | |
| Product Type | Step Down Transformer |
| Manufacturer Part Number | SU6000XFMR2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SU6000XFMR2U |
| Product Name | SmartOnline SU6000XFMR2U Step Down Transformer |
| Product Line | SmartOnline |
| Brand Name | Tripp Lite by Eaton |
