About the product
Marketing Information from the Manufacturer
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 325 W load capacity
- 500 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 8 minute at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Status Display with Load and Battery Bar-Graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Technical Information | |
| Emergency Power OFF | Yes |
| Interfaces/Ports | |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Environmental Conditions | |
| Thermal Dissipation | 90 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Power Description | |
| Output Voltage | 240 V AC |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| Management | |
| Battery Management | Intelligent Battery Management |
| Alarm | Low Battery |
| On Battery | |
| Overload | |
| Physical Characteristics | |
| Weight (Approximate) | 28.35 lb (12860 g) |
| Form Factor | DIN Rail |
| Height | 5.83" (148 mm) |
| Width | 14.25" (362 mm) |
| Depth | 6.73" (171 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA500PDRI-S |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

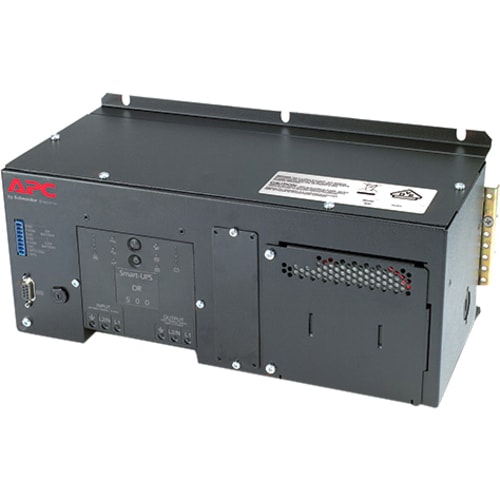

| Product Name | DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V |
| Brand Name | APC by Schneider Electric |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 24 Minute |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
