About the product

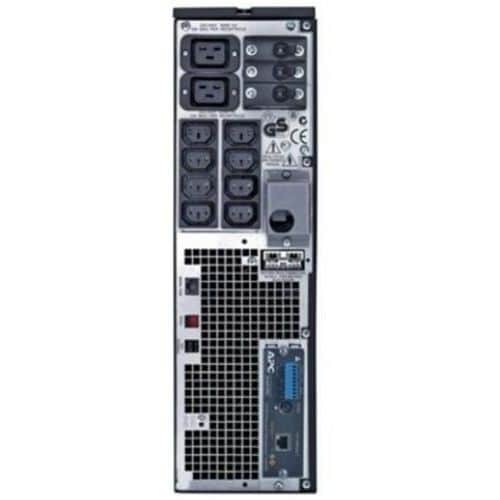

APC Smart-UPS RT SURTD5000XLI is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 5000VA in a 3U rack-mountable form, users can support power hungry blade servers or heavily loaded equipment racks.
- 5 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 3.50 kW load capacity
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | UL 1449, C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE |
| Environmentally Friendly | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15.40 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.50 kW |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURTD5000XLI |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS RT 5000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | RT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 120 lb (54431.08 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 17" (431.80 mm) |
| Width | 5.10" (129.54 mm) |
| Depth | 26" (660.40 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Bypass Switch | Internal |
| Emergency Power OFF | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| 6 |
