About the product

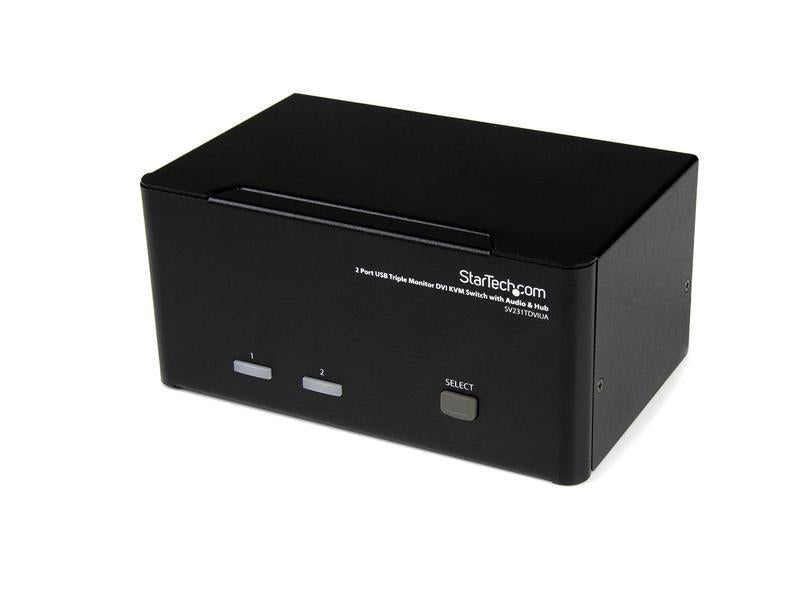

Switch between two triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals. The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub - Multi Monitor KVM - Dual Port KVM Switch (SV231TDVIUA) - KVM / audio / USB switch - 2 ports |
| Device Type: | KVM / audio / USB switch - 2 ports |
| Subtype: | KVM |
| Ports: | 2 x KVM / audio / USB |
| KVM Users Qty: | 1 local user |
| Features: | Built-in 2-port USB 2.0 hub, HDCP compliant |
| Power: | AC 120/230 V |
| Dimensions (WxDxH): | 6.3 in x 2.9 in x 3.9 in |
| Weight: | 1.98 lbs |
| Color: | Black |
| Manufacturer Warranty: | 3-year warranty |
| Designed For: | P/N: SVA12M2NEUA, SVA12M5NA |
| General | |
| Device Type: | KVM / audio / USB switch - 2 ports |
| Enclosure Type: | Desktop |
| Subtype: | KVM |
| Ports: | 2 x KVM / audio / USB |
| KVM Local Users Qty: | 1 local user |
| Keyboard / Mouse Interface: | USB |
| Max Resolution: | 1920 x 1200 |
| Features: | Built-in 2-port USB 2.0 hub, HDCP compliant |
| Status Indicators: | Port status |
| Expansion / Connectivity | |
| Interfaces: | 2 x USB 2.0 Type B ¦ 3 x DVI-I ¦ 2 x audio / headphones mini-jack ¦ 2 x microphone input mini-jack ¦ 6 x DVI-I ¦ 4 x USB 2.0 Type A ¦ 1 x audio / headphones mini-jack ¦ 1 x microphone input mini-jack |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V |
| Miscellaneous | |
| Color: | Black |
| Compliant Standards: | FCC, RoHS |
| Dimensions & Weight | |
| Width: | 6.3 in |
| Depth: | 2.9 in |
| Height: | 3.9 in |
| Weight: | 1.98 lbs |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
