About the product

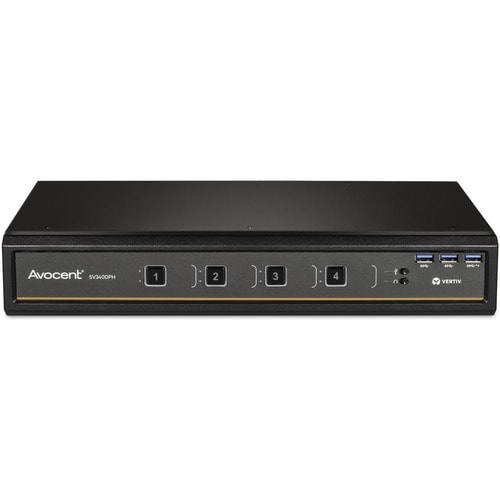

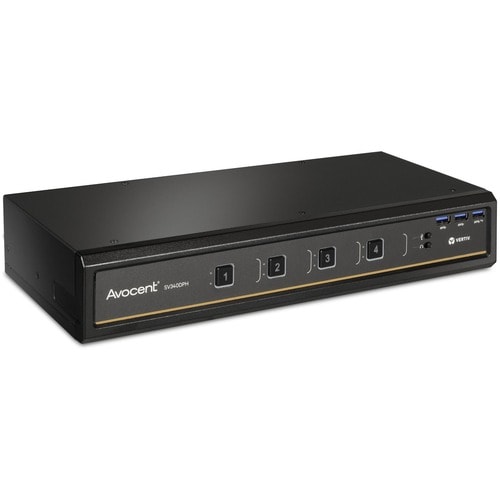

The Vertiv Avocent SwitchView Desktop KVM Switch Series offers fast and reliable access and control of up to four desktop computers using a single keyboard, monitor, and mouse. Users may gain access to computers, peripheral devices, databases and servers, mobile devices or ultra HD multimedia systems through the push of a button via a single keyboard, mouse, and monitor. Cursor Navigation Switching (CNS) simplify and speed up system access by providing seamless transitions between screens. A managed copy-and-paste feature enables copying of files and text from one source computer to the other for seamless source integration, with independent audio and multiple USB 3.0 accessory ports making transfer of data easy and simple. The Vertiv Avocent SwitchView Desktop KVM switches offer support for DVI-I, HDMI and DisplayPort in single head (SV200) and dual head (SV300) models with high resolutions up to UHD 4K, all the while supporting molded cables that reduce cable clutter.
- Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
- Switch between 4 computers and 1 local users
- Let you connect 4 computers to 1 local users
- Establishes a rapid connection with USB devices
- The Built-in USB port enables easy connection with USB-compatible devices
- The Desktop form factor allocates you simple and easy installation for your kvm switchbox
- Designed to be used as a desktop
Technical Specifications
| Power Description | |
| Input Voltage Range | 100VAC-240VAC |
| Technical Information | |
| Maximum Operating Distance | 10 ft (3048 mm) |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Rack Height | 1U |
| Height | 2.20" (55.88 mm) |
| Width | 13.70" (347.98 mm) |
| Depth | 5" (127 mm) |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV340DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | SV340DPH |
| Product Name | SV340DPH Desktop KVM Switch |
| Product Line | SwitchView |
| Product Series | 300 |
| Brand Name | Vertiv AVOCENT |

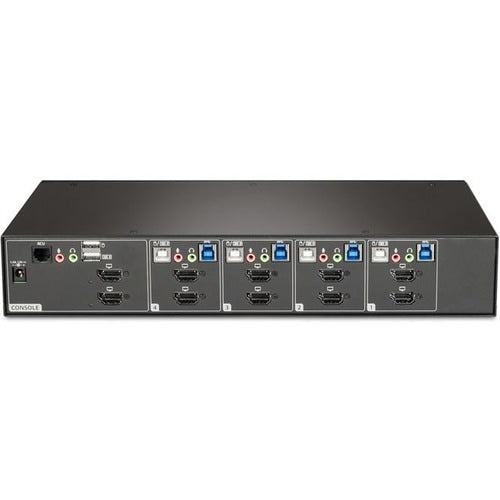

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| DVI | No |
| VGA | No |
| Number of Network (RJ-45) Ports | 0 |
| Network (RJ-45) | No |
| Number of USB Ports | 5 |
| DisplayPort | Yes |
| Management Port | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 2 |
| Number of DVI Ports | 0 |
