Vertiv

2X8 KVM SV UNIVERSAL DP/H DESKTOP MATRIX

2X8 KVM SV UNIVERSAL DP/H DESKTOP MATRIX

Regular price $2,717.99 CAD
Regular price $3,044.99 CAD Sale price $2,717.99 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Vertiv Avocent SwitchView Matrix | 8 Port | DisplayPort | HDMI | DVI-D | TAA Compliant - Desktop Matrix | Single Head | Zero Delay Switching | Universal Video Connector | USB Port | TAA Compliant | 2-Year Full Coverage Factory Warranty - Optional Extended Warranty Available

VPNSVM180DPH-400 SKU:703473DIN UPC:636430089898

  • Use this KVM Switchbox and eliminate the need for manually switching cables between sources
  • Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
  • Switch between 8 computers and 1 local users

Volume discount available - Ask for quote..

View full details

Recently Viewed

2X8 KVM SV UNIVERSAL DP/H DESKTOP MATRIX

Product information summary

2X8 KVM SV UNIVERSAL DP/H DESKTOP MATRIX

About the product

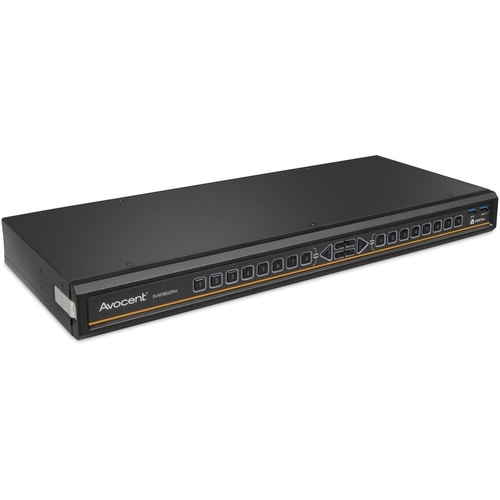

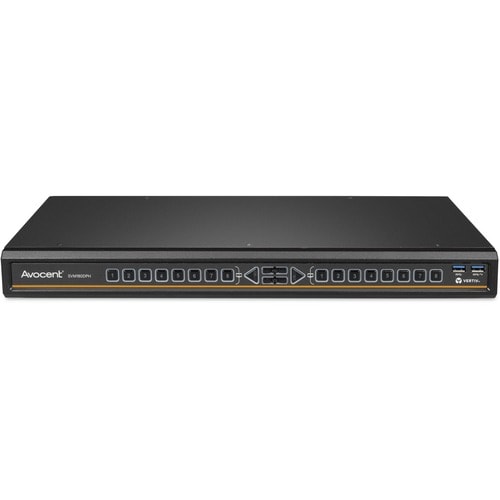

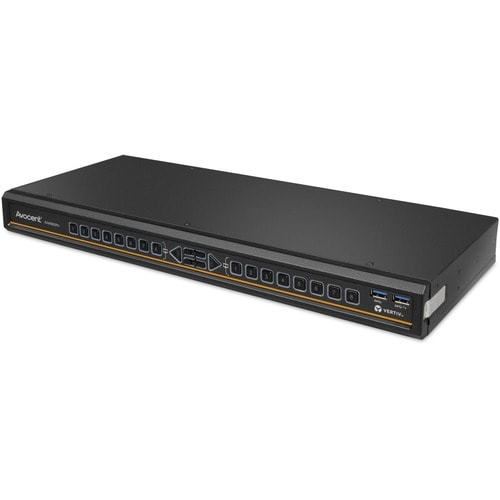

The Vertiv Avocent SwitchView Desktop Matrix offers fast and reliable access and control of up to four desktop computers using a single keyboard, monitor, and mouse. Both 4 or 8 port switch comes with a universal video connector that supports DP, HDMI, and DVI-D for resolutions up to UHD 4K. With this flexibility, users are not locked in to only input and output display types while also reducing the need for multiple cable types. Cursor Navigation Switching (CNS) simplifies and speeds up system access and allows seamless transitions between active computers when moving the cursor across screen borders. A managed copy-and-paste feature enables copying of files and text from one source computer to the other for seamless source integration. Up to three USB ports enable easy connectivity to external USB devices while also offering the ability to switch between audio and USB 3.0 peripherals independently.

More from the Manufacturer

  • Use this KVM Switchbox and eliminate the need for manually switching cables between sources
  • Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
  • Switch between 8 computers and 1 local users
  • Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
  • Establishes a rapid connection with USB devices
  • Hot-pluggable USB interface for a quick connection
  • The Desktop form factor allocates you simple and easy installation for your kvm switchbox
  • Designed to be used as a desktop

Technical Specifications

Power Description
Input Voltage Range100 VCA-240 VCA
Technical Information
Maximum Operating Distance10 ft (3048 mm)
Number of Computers Supported8
Number of Local Users Supported1
Number of Remote Users Supported0
Miscellaneous
Package Contents
  • SVM180DPH Desktop Matrix Switch
  • Power Cord
Country of OriginUnited States
Environmentally FriendlyYes
TAA CompliantYes
Energy StarNo
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)5.40 lb (2449.40 g)
Form FactorDesktop
Rack-mountable
Rack Height1U
Height1.70" (43.18 mm)
Width17.30" (439.42 mm)
Depth7.30" (185.42 mm)
General Information
Product TypeKVM Switchbox
Manufacturer Part NumberSVM180DPH-400
Manufacturer Website Addresshttp://www.vertiv.com/
Packaged Quantity1
ManufacturerVertiv
Product ModelSVM180DPH
Product NameSVM180DPH Desktop Matrix Switch
Product LineSwitchView
Product Series100
Brand NameVertiv AVOCENT
Interfaces/Ports
USBYes
HDMIYes
Number of HDMI Ports2
DVINo
VGANo
Number of Network (RJ-45) Ports0
Network (RJ-45)No
Number of USB Ports4
DisplayPortYes
Management PortNo
PS/2 PortNo
Number of PS/2 Ports0
Number of VGA Ports0
Number of DisplayPorts2
Number of DVI Ports0
