About the product

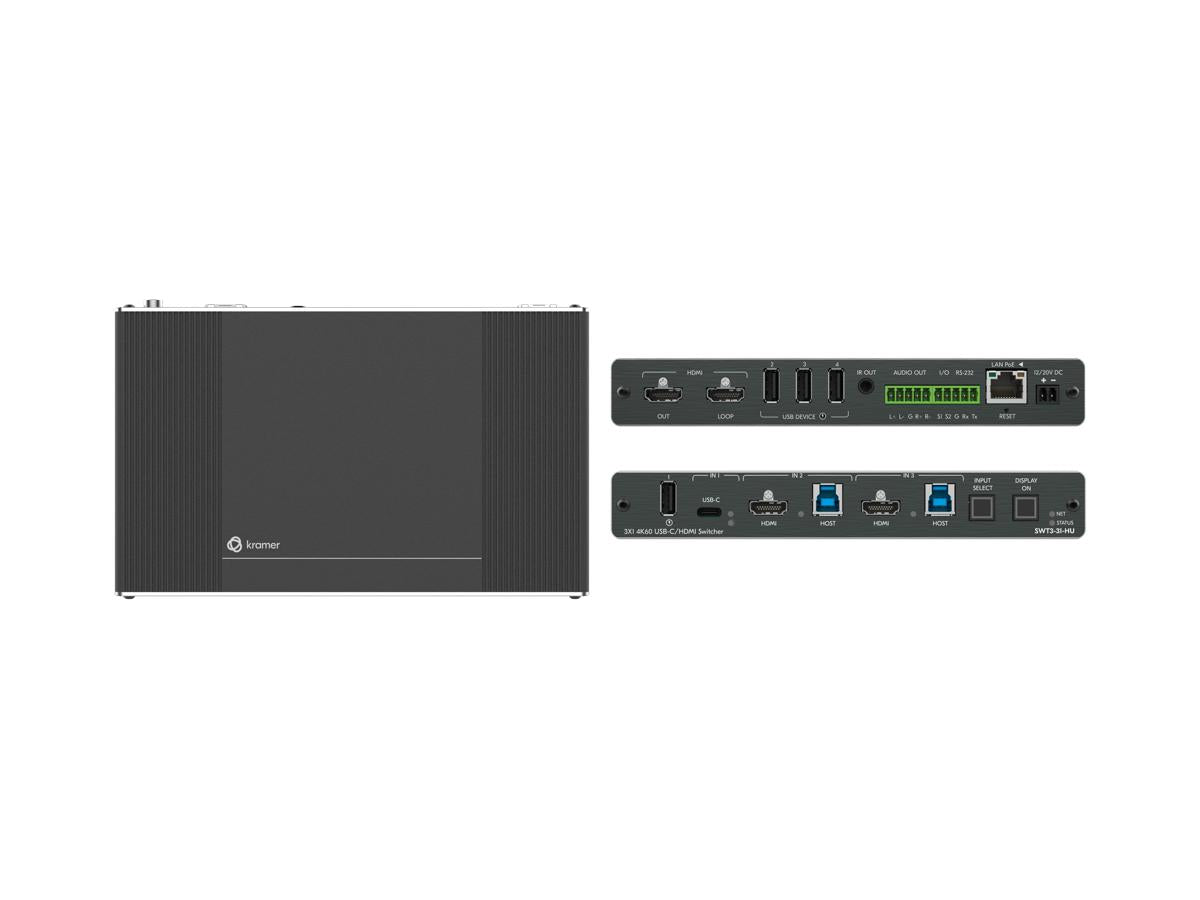

Kramer 3X1 4K60 Usb-C/Hdmi Switcher
Technical Specifications
| Primary Information | |
| Product Description: | Kramer SWT3-31-HU - video/audio/USB switch - 3x1, 4K60 - 3 ports |
| Device Type: | Video/audio/USB switch - 3 ports |
| Subtype: | HDMI / USB |
| Ports: | 1 x USB-C + 2 x HDMI |
| Performance: | Video bandwidth: 18 Gbps ¦ Bandwidth per channel: 6 Gbps |
| Features: | DisplayPort Alternate mode, 4:4:4 chroma subsampling support, Deep Color support, 3D support, HDR support, aluminum housing, convection ventilation cooling, auto-switching, audio de-embedding, Dolby TrueHD support, DTS-HD support, I-EDIDPro Kramer Intelligent EDID Processing, video mirror mode, x.v.Color support, built-in intelligent control gateway |
| Compliant Standards: | Power Delivery 3.0, USB 3.2 Gen 2, USB 2.0, USB 1.1, HDCP 2.3, IEEE 802.1x |
| Dimensions (WxDxH): | 7.5 in x 4.6 in x 1.1 in |
| Weight: | 21.16 oz |
| General | |
| Device Type: | Video/audio/USB switch - 3 ports |
| Enclosure Type: | Desktop |
| Subtype: | HDMI / USB |
| Ports: | 1 x USB-C + 2 x HDMI |
| Performance: | Video bandwidth: 18 Gbps ¦ Bandwidth per channel: 6 Gbps |
| Max Resolution: | 4K @ 60 Hz |
| Features: | DisplayPort Alternate mode, 4:4:4 chroma subsampling support, Deep Color support, 3D support, HDR support, aluminum housing, convection ventilation cooling, auto-switching, audio de-embedding, Dolby TrueHD support, DTS-HD support, I-EDIDPro Kramer Intelligent EDID Processing, video mirror mode, x.v.Color support, built-in intelligent control gateway |
| Compliant Standards: | Power Delivery 3.0, USB 3.2 Gen 2, USB 2.0, USB 1.1, HDCP 2.3, IEEE 802.1x |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB input Type C ¦ 2 x HDMI input ¦ 1 x HDMI output ¦ 1 x HDMI loop ¦ 1 x audio output 5 pin terminal block stereo audio ¦ 1 x IrDA output mini-jack ¦ 2 x USB 3.1 Type B host ¦ 4 x USB 3.1 Type A ¦ 1 x LAN RJ-45 ¦ 1 x serial (RS-232) 3 pin terminal block ¦ 2 x GPIO 2 pin terminal block |
| Power | |
| Power Device: | External power adapter |
| Power Provided: | DC 20 V - 6 A |
| Features: | PoE powered |
| Miscellaneous | |
| Compliant Standards: | UL, RoHS, WEEE |
| Dimensions & Weight | |
| Width: | 7.5 in |
| Depth: | 4.6 in |
| Height: | 1.1 in |
| Weight: | 21.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 13.6 in |
| Shipping Depth: | 6.5 in |
| Shipping Height: | 2 in |
| Shipping Weight: | 2.65 lbs |
