About the product
Supermicro SuperServer®
Supermicro's X11 DP and UP SuperServer®, SuperWorkstation, SuperStorage, and SuperBlade® solutions offer numerous advantages and the highest levels of performance, efficiency, security and scalability in the industry. Supermicro X11 SuperServers support the latest 2nd generation Intel® Xeon® Scalable processors and offer up to 6TB DDR4-2933MHz memory in 24 DIMMs, Intel® Optane™ DC Persistent Memory, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, redundant Titanium Level (96%+) Digital power supplies, and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation systems offer in addition 7.1 HD Audio, and up to 11 USB ports.
The Supermicro X11 DP and UP solutions are offered in the industry's broadest variety of form factors, including 1U, 2U, 3U/Mini-Tower, 4U/Tower, and 8U SuperBlade® addressing the widest array of product/market and application segments:
- Data Center Optimized (DCO)
- Application Optimized
- I/O Optimized (WIO)
- Twin
- TwinPro™
- FatTwin™
- BigTwin™
- GPU/Coprocessor
- SuperWorkstation
- SuperStorage
- SuperBlade®
- MicroBlade
- MicroCloud
- Max IO
The X11 platforms enable Supermicro to offer the most extensive and technologically advanced range of computing solutions for Data Center, Enterprise, Cloud, HPC, AI/ML, Hadoop/Big Data, Storage, and Embedded environments.
Power efficiency in high availability, mission-critical applications is increased with upgraded high speed cooling architectures including high-speed fans, high-efficiency redundant Titanium Level (96%+) Digital Switching power supplies, BBP® (Battery Backup Power) and integrated SuperCap (CacheVault) power supply technologies.
When combined with full Rack Integration Services, Hardware Maintenance Services, and Data Center Management Software that manages health, power, and maintenance of servers in large deployments, Supermicro X11 Serverboard, Chassis, SuperServer®, SuperWorkstation, SuperStorage, and SuperBlade® platforms provide the most complete, scalable computing solutions with maximum performance and the highest levels of efficiency and reliability.
- Provides 11 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Compatible Xeon Platinum processor lets you perform all your computational tasks at a swift pace
Technical Specifications
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | HDD |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 8 |
| Interfaces/Ports | |
| Number of SATA Interfaces | 10 |
| Total Number of USB Ports | 11 |
| Number of USB 3.0 Ports | 3 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 400 W |
| Processor | |
| Processor Supported | Xeon Silver |
| Xeon Platinum | |
| Xeon Gold | |
| Xeon Bronze | |
| Processor Socket | Socket P LGA-3647 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 17.60 lb (7983.23 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.85" (504.19 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | SYS-5019P-MTR |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | 5019P-MTR |

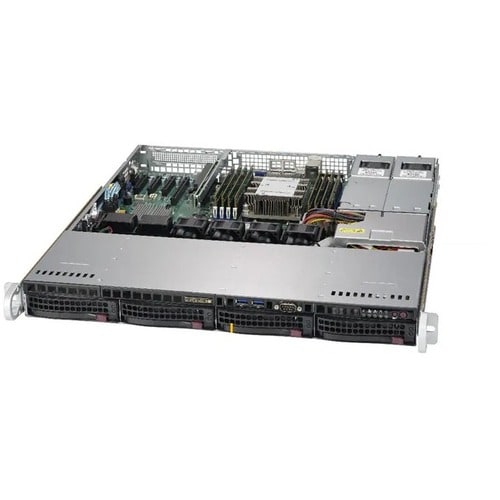

| Product Name | SuperServer 5019P-MTR (Black) |
| Product Line | SuperServer |
| Brand Name | Supermicro |
