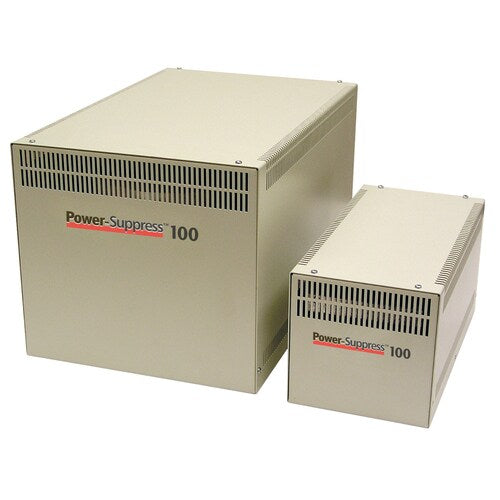

Eaton Power-Suppress 100 T100H-1800 Line Conditioner - AC Noise, Overl

• 1.8kVA
• Output: 1800VA
• Common-mode: noise 140dB @ 100kHz
• Normal-mode: noise 65dB @ 100kHz
• Dielectric Strength: 600% for 1 cycle 300% for 30 seconds
• Frequency: 60 Hz ±5%
• Impedance: 2 - 5% typical
• Efficiency: 93 - 97% typical
• Input voltage range: ±10% of nominal rated voltage
• Load regulation: 2 - 5% or less from no load to full load at unity power factor
• Harmonic distortion: Adds less than 1% THD, under linear loading
• Coil insulation: 200ºC
• Temperature Rise: 115ºC max rise above a 40ºC ambient, depending on model

Safety Agency:

• UL 1012
• UL 1449
• cUL listed
• ANSI/IEEE C57.12.91 Meets FCC Category A
• IEEE C62.41Category A3
