Power equipment UPS

Expected delivery 3 to 7 business days (exceptions applied)

Eaton

Eaton Power-Sure 700 Line Conditioner - Transient, AC Noise, Brownout,

Eaton Power-Sure 700 Line Conditioner - Transient, AC Noise, Brownout,

Regular price $226,192.84 CAD
Regular price $253,335.98 CAD Sale price $226,192.84 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Eaton Power-Sure 700 Line Conditioner - Transient, AC Noise, Brownout, Sag, AC Surge, Overload, Over Voltage protection208 V AC Input

VPN:TBL-300K-6 SKU:RSC908359 UPC:

Please see below description

Volume discount available - Ask for quote..

View full details

Recently Viewed

Eaton Power-Sure 700 Line Conditioner - Transient, AC Noise, Brownout,

Product information summary

Eaton Power-Sure 700 Line Conditioner - Transient, AC Noise, Brownout,

About the product

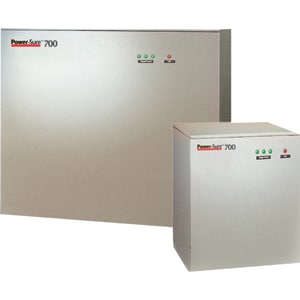

The Power-Sure 700 Three Phase Power Line Conditioning system provides exceptional system reliability that can be attributed to MGE's microprocessor controlled zero-current cross tap switching technology. The Power-Sure 700 combines solid state, microprocessor based voltage regulation, with a multi-shield computer grade transformer and filter to remove transients and noise. The combined effect is a regulating and shielded isolation transformer/system that solves 99% of the electrical disturbance problems. The Power-Sure 700 protects your system against electrical brownouts, sags, surges, transients and other electrical disturbances. This power conditioner also provides the protection, efficiency, and reliability that are critical to every application with sensitive equipment.

Technical Specifications

Miscellaneous
Additional Information
  • 300kVA
  • Input voltage range: +10% to -20%
  • Output voltage range: ±3% Typical
  • Efficiency: 97% Typical, 95% minimum
  • Load power factor: 0.6 leading to 0.6 lagging
  • Common-mode noise attenuation: 140 dB
  • Normal-mode noise attenuation: -3 dB @ 1000 HZ, -40dB per decade
  • Total harmonic distortion: Less than 1% added
  • Correction time: 1 Cycle typical, 1.5 Cycle maximum
  • Overload rating: 200% for 10 seconds, 1000% for 1 cycle
  • Audible noise: Less than 50dBA @1 meter (depending on size)
Certifications & Standards
  • UL 1012
  • CSA
  • FCC Class A certified
Power Description
Input Voltage208 V AC
Output Voltage120 V AC
Physical Characteristics
Weight (Approximate)1814.37 kg
Form FactorTower
Height77" (1955.80 mm)
Width56" (1422.40 mm)
Depth41.50" (1054.10 mm)
General Information
Product TypeLine Conditioner
Manufacturer Part NumberTBL-300K-6
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product NamePower-Sure 700 Line Conditioner
Product LinePower-Sure
Brand NameEaton
Technical Information
Protection TypeAC Noise
Sag
Overload
Over Voltage
Brownout
AC Surge
Transient

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.

Price guarantee

!00% we are always lower than market price.
