TRENDnet 12-Port Cat5e Unshielded Patch Panel, TC-P12C5V, Wall Mount,

• 12-Port Cat5e Wall Mount Patch Panel; Compatible with Cat5e and Cat6
• Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801; 180° angle type; Operating temperature: -10° - 60° C (14° - 140° F)
• 10-inch patch panel is well suited for home and SMB; Color-coded labeling for T568A and T568B wiring schemes applications

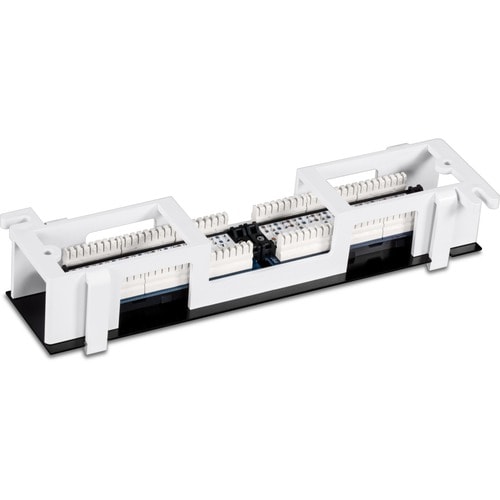

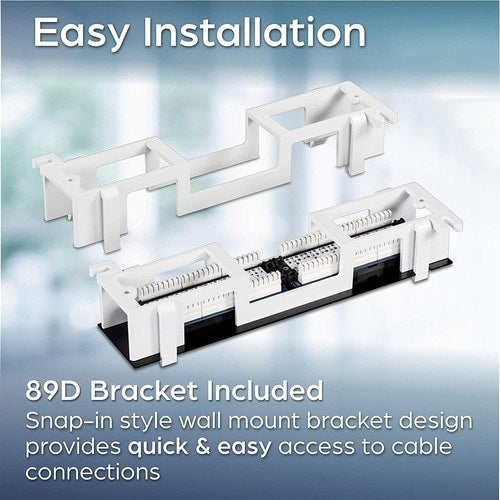

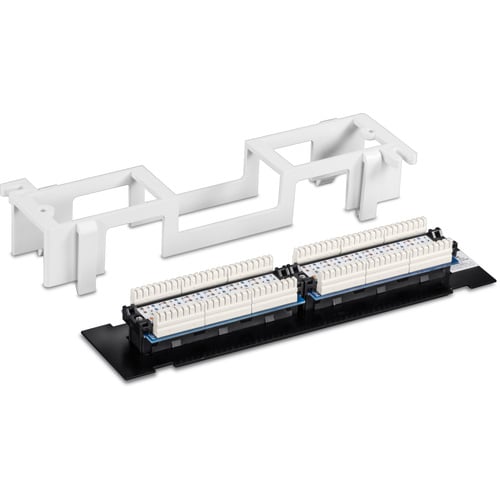

• Included 89D wall mount bracket for vertical or horizontal; Organize cable connections with port labeling installations

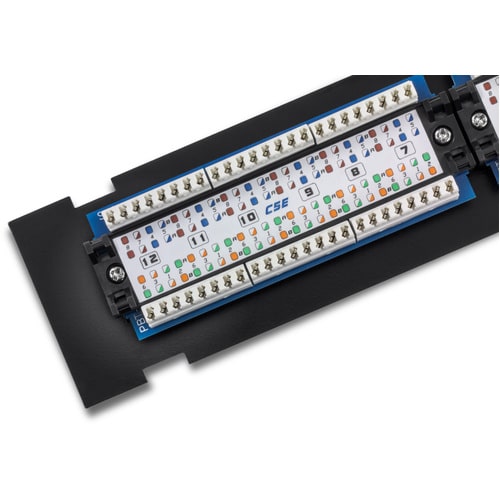

• 110 IDC type terminal blocks (use 110 or Krone type tool); Use with TRENDnet TC-PDT Punch Down Tool (sold separately)

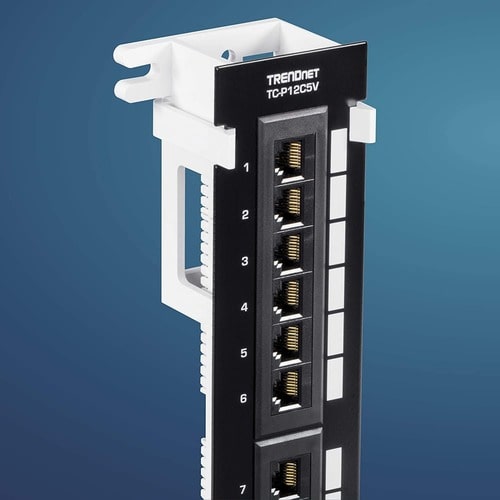

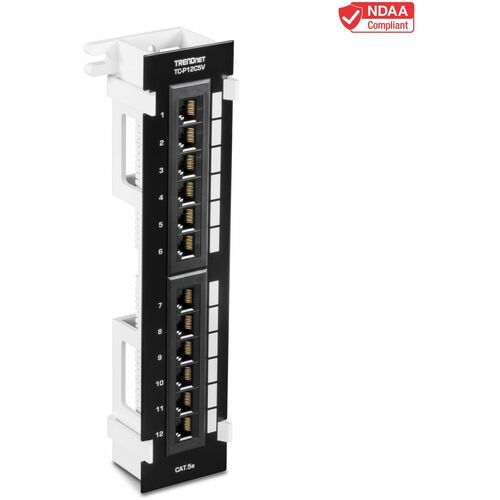

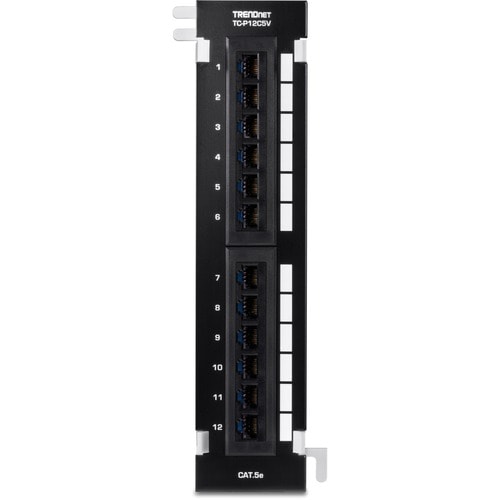

TRENDnet's 12-Port Cat5e Unshielded Wall Mount Patch Panel, model TC-P12C5V, provides a 100MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch patch panel is well suited for both home or SMB applications. Organize connections with the available writing surface above each port, allowing users to label respective connections. This compact 12-port patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting. Use with TRENDnet's Punch Down Tool, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68.

PACKAGE CONTENTS
TC-P12C5V
Quick Installation Guide
89D Mounting Bracket
Screws
