About the product

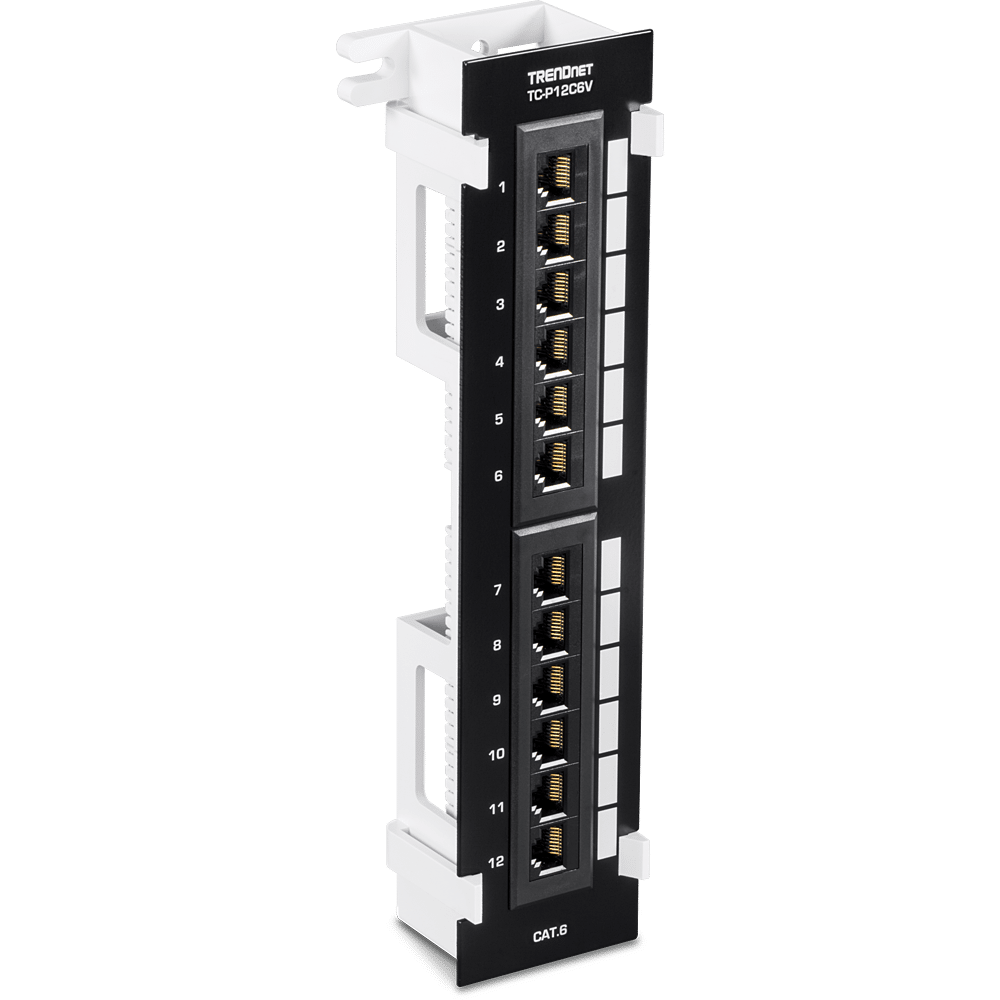

TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket, model TC-P12C6V, provides a 250MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch, Cat6 wall mount patch panel is well suited for both home or SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. This compact/mini patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting.
TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket Features:
- 12-Port Cat6 Wall Mount Patch Panel
- Compatible with Cat5e and Cat6
- 10-inch-wide patch panel is well suited for home and SMB applications
- Color-coded labeling for T568A and T568B wiring schemes
- Included 89D wall mount bracket for vertical or horizontal installations
- Organize cable connections with included ties, and port labeling
- 110 IDC type terminal blocks (use 110 or Krone type tool)
- Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
- Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
- 90° angle type
- Operating temperature: -25° – 50° C (-13° – 122° F)
- Designed for Category 6 cabling
- 3-year warranty
- NDAA compliant
TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket Specifications:
- Standards:
- ANSI/TIA/EIA-568-C.2
- ISO/IEC 11801 2nd edition: 2002
- Interface:
- 12 x Cat6 RJ-45 ports with gold-plated 8P/8C contacts
- T568A/T568B wiring for Krone 110 termination with color-coded wiring diagram
- 180° IDC terminals
- Compatible with 22 – 26 AWG solid or stranded wire
- SPCC steel construction
- Mounting Options:
- Wall mountable with included 89D bracket
- Electrical Specification:
- Insulation resistance: >= 500 M?
- Dielectric Withstand Voltage: 500V DC
- Contact resistance: <= 35 M?
- Current rating: 1.5A at 20° C (68° F)
- Mechanical Specification:
- Contact force 99.2g (3.5 oz.)
- Plug retention force: 13.3kg (29 lb.)
- 110/ Krone IDC insertion force: min. 4.5kg (9.9 lb.)
- 110/ Krone IDC retention force: min. 0.5kg (1.1 lb.)
- Operating Temperature:
- -10° – 60° C (-50° – 140° F)
- Operating Humidity:
- Max. 90% non-condensing
- Dimensions: 57 x 253 x 49mm (2.24 x 9.96 x 1.92 in.)
- Weight: 292g (10.3 oz.)
- Warranty: 3 Years
- Package Contents:
- TC-P12C6V
- Quick Installation Guide
- Mounting Plate
- Screws
Technical Specifications
TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket, model TC-P12C6V, provides a 250MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch, Cat6 wall mount patch panel is well suited for both home or SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. This compact/mini patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting.
TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket Features:
- 12-Port Cat6 Wall Mount Patch Panel
- Compatible with Cat5e and Cat6
- 10-inch-wide patch panel is well suited for home and SMB applications
- Color-coded labeling for T568A and T568B wiring schemes
- Included 89D wall mount bracket for vertical or horizontal installations
- Organize cable connections with included ties, and port labeling
- 110 IDC type terminal blocks (use 110 or Krone type tool)
- Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
- Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
- 90° angle type
- Operating temperature: -25° – 50° C (-13° – 122° F)
- Designed for Category 6 cabling
- 3-year warranty
- NDAA compliant
TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket Specifications:
- Standards:
- ANSI/TIA/EIA-568-C.2
- ISO/IEC 11801 2nd edition: 2002
- Interface:
- 12 x Cat6 RJ-45 ports with gold-plated 8P/8C contacts
- T568A/T568B wiring for Krone 110 termination with color-coded wiring diagram
- 180° IDC terminals
- Compatible with 22 – 26 AWG solid or stranded wire
- SPCC steel construction
- Mounting Options:
- Wall mountable with included 89D bracket
- Electrical Specification:
- Insulation resistance: >= 500 M?
- Dielectric Withstand Voltage: 500V DC
- Contact resistance: <= 35 M?
- Current rating: 1.5A at 20° C (68° F)
- Mechanical Specification:
- Contact force 99.2g (3.5 oz.)
- Plug retention force: 13.3kg (29 lb.)
- 110/ Krone IDC insertion force: min. 4.5kg (9.9 lb.)
- 110/ Krone IDC retention force: min. 0.5kg (1.1 lb.)
- Operating Temperature:
- -10° – 60° C (-50° – 140° F)
- Operating Humidity:
- Max. 90% non-condensing
- Dimensions: 57 x 253 x 49mm (2.24 x 9.96 x 1.92 in.)
- Weight: 292g (10.3 oz.)
- Warranty: 3 Years
- Package Contents:
- TC-P12C6V
- Quick Installation Guide
- Mounting Plate
- Screws
