About the product

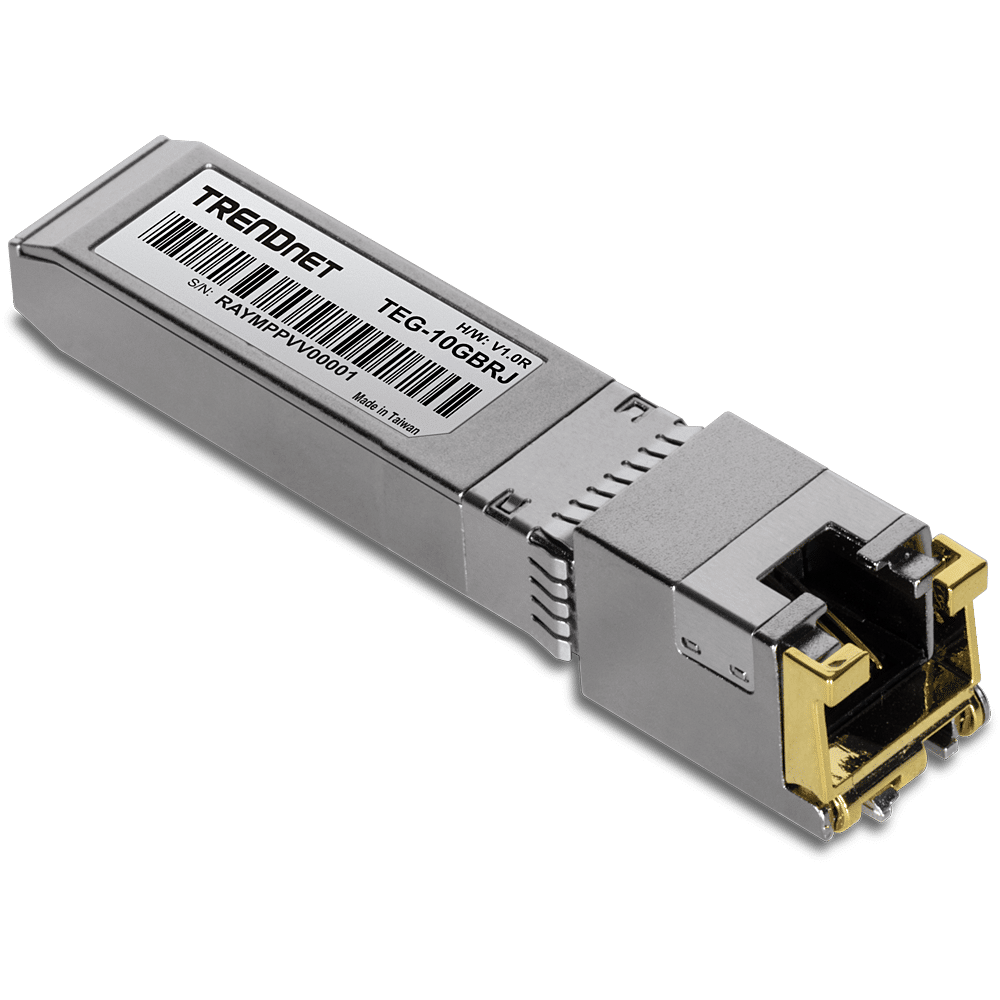

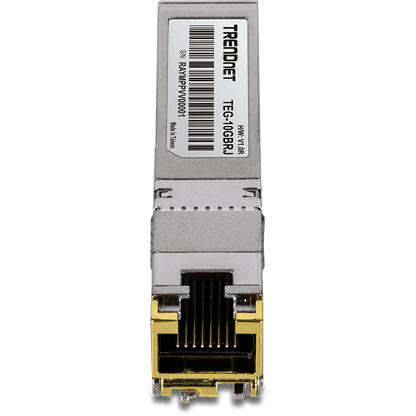

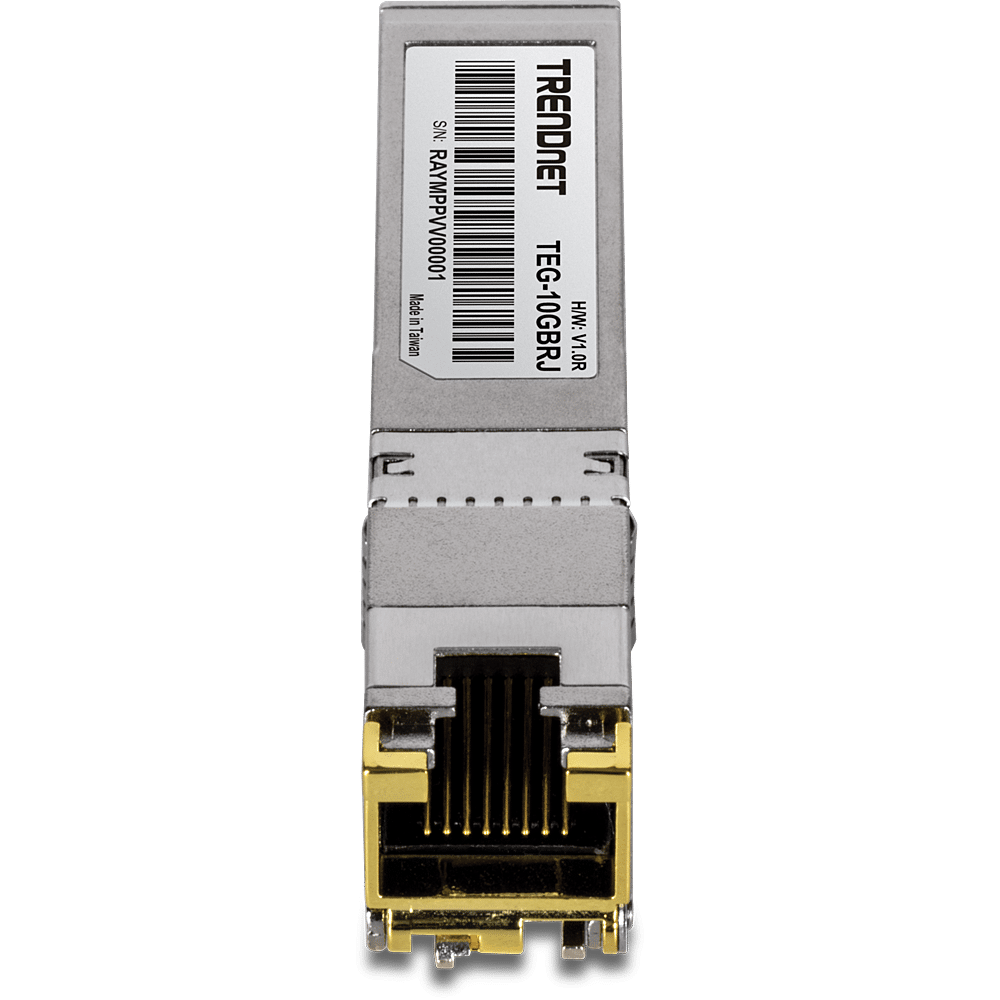

TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Overview
TRENDnet’s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ slots for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module.
- Connect devices up to 30m (98ft.) over cat6a cabling (or better) at 10G speeds
- Compliant with IEEE 802.3an 10 Gigabit Ethernet
- Backward compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds
- Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
- Shielded RJ-45 copper interface
- Low Electromagnetic Interference (EMI) design
- Digital Diagnostics Monitoring (DDM) support
- Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- Hot-Pluggable
- Low power consumption
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Features
- RJ-45 Copper SFP+
- Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.
- Gigabit Speeds
- The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10 Gbps speeds.
- Compatibility
- Compatible with an MSA-compliant SFP+ slot and multi-gigabit RJ-45 copper connections.
- Ethernet Distance
- Supports networking distances up to 30m (98 ft.)
- Connection Interface
- RJ-45 10 gigabit port to convert SFP+ to RJ-45
- Hot-Pluggable SFP+
- Hot-pluggable 10G copper SFP+ compatible with an MSA-compliant SFP+ slot
- Operating Temperature
- This 10G copper SFP+ module features an operating temperature range of 0°– 65° C (0° – 149° F)
TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Specifications
- Standards
- IEEE 802.3
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3an
- IEEE 802.3ab
- Device Interface
- SFP+ MSA Compliant
- RJ-45 connector
- Data Transfer Rate
- Up to 10Gbps
- Distance
- 10Gbps up to 30m (100ft.) with Cat. 6a/7
- 2.5G/5Gbps up to 50m (164ft.) with Cat. 5E
- 1Gbps up to 100m (328ft.) with Cat. 5E
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Power
- Max. Consumption: 3W
- Operating Temperature
- 0° – 65° C (32° – 149° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 68 x 13.4 x 13.8mm (2.6 x 0.52 x 0.53 in.)
- Weight
- 24g (0.8 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Warranty*
- Package Contents
- TEG-10GBRJ
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Technical Specifications
TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Overview
TRENDnet’s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ slots for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module.
- Connect devices up to 30m (98ft.) over cat6a cabling (or better) at 10G speeds
- Compliant with IEEE 802.3an 10 Gigabit Ethernet
- Backward compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds
- Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
- Shielded RJ-45 copper interface
- Low Electromagnetic Interference (EMI) design
- Digital Diagnostics Monitoring (DDM) support
- Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- Hot-Pluggable
- Low power consumption
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Features
- RJ-45 Copper SFP+
- Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.
- Gigabit Speeds
- The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10 Gbps speeds.
- Compatibility
- Compatible with an MSA-compliant SFP+ slot and multi-gigabit RJ-45 copper connections.
- Ethernet Distance
- Supports networking distances up to 30m (98 ft.)
- Connection Interface
- RJ-45 10 gigabit port to convert SFP+ to RJ-45
- Hot-Pluggable SFP+
- Hot-pluggable 10G copper SFP+ compatible with an MSA-compliant SFP+ slot
- Operating Temperature
- This 10G copper SFP+ module features an operating temperature range of 0°– 65° C (0° – 149° F)
TRENDnet TEG-10GBRJ 10G RJ-45 Copper SFP+ Module Specifications
- Standards
- IEEE 802.3
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3an
- IEEE 802.3ab
- Device Interface
- SFP+ MSA Compliant
- RJ-45 connector
- Data Transfer Rate
- Up to 10Gbps
- Distance
- 10Gbps up to 30m (100ft.) with Cat. 6a/7
- 2.5G/5Gbps up to 50m (164ft.) with Cat. 5E
- 1Gbps up to 100m (328ft.) with Cat. 5E
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Power
- Max. Consumption: 3W
- Operating Temperature
- 0° – 65° C (32° – 149° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions
- 68 x 13.4 x 13.8mm (2.6 x 0.52 x 0.53 in.)
- Weight
- 24g (0.8 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Warranty*
- Package Contents
- TEG-10GBRJ
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
