About the product

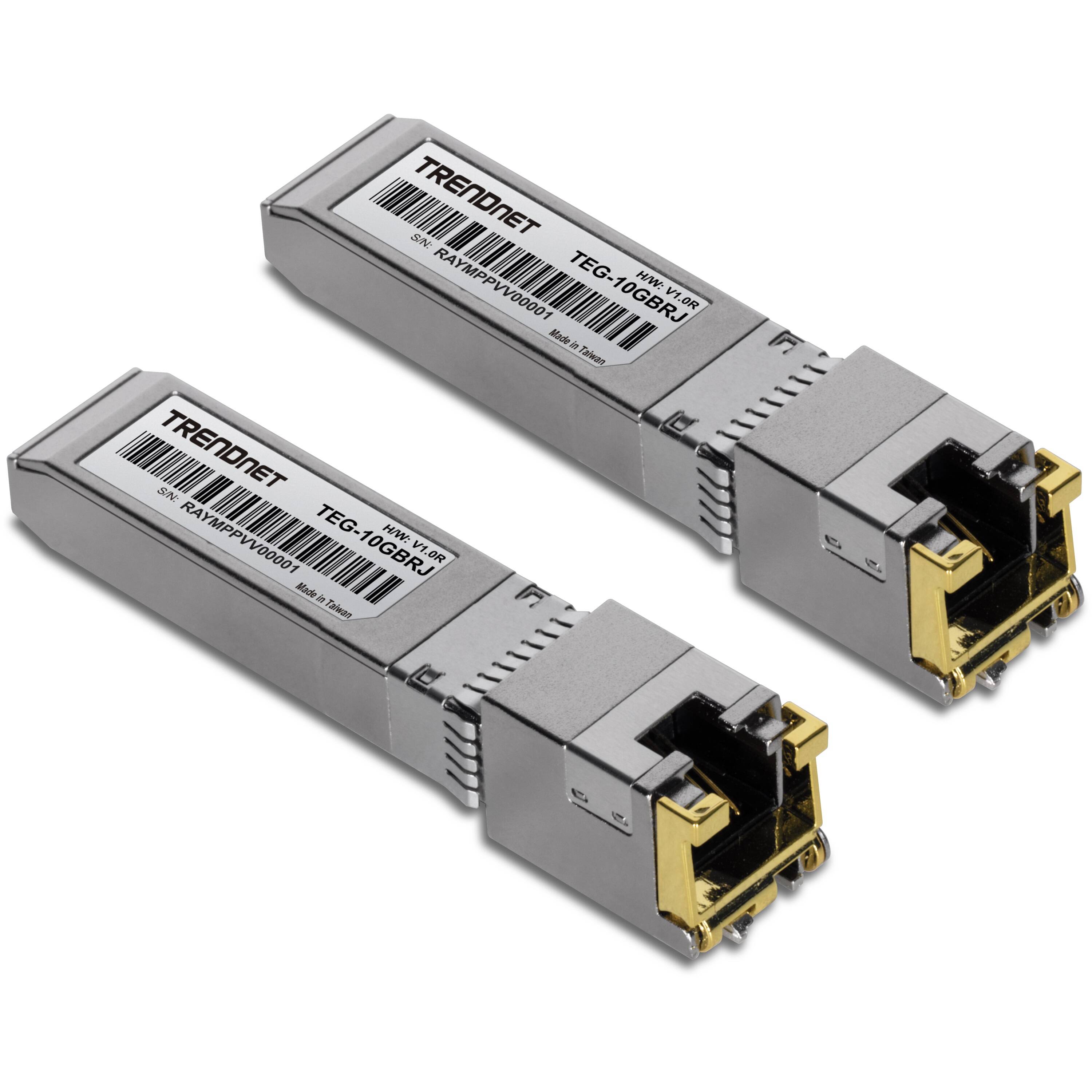

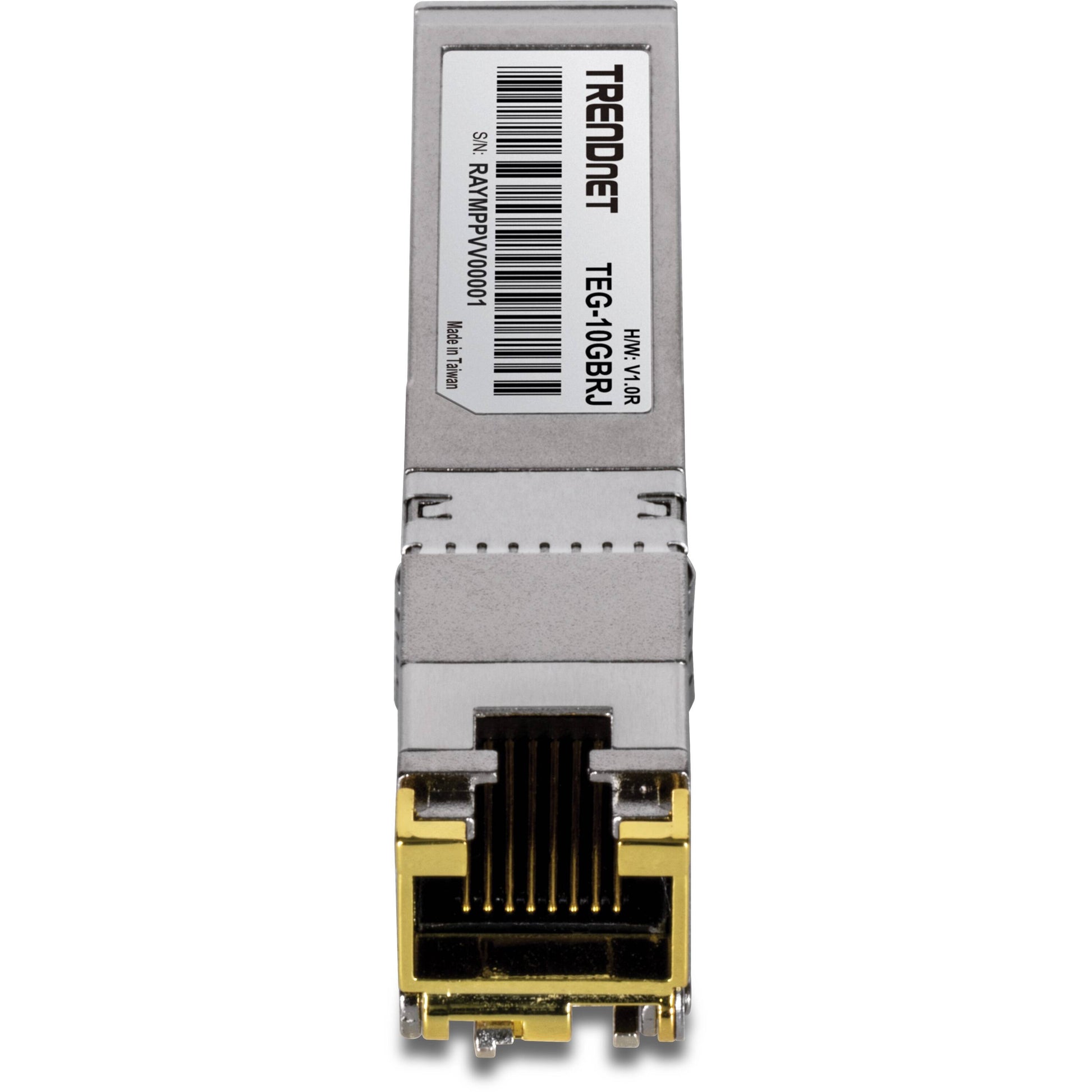

The TRENDnet 2-Pack 10G RJ-45 Copper SFP+ Modules convert standard SFP+ ports into RJ-45 multi-gigabit compatible ports for additional high-speed wired connection options.
Works with standard SFP+ ports on network switches and fiber media converters. Increases the number of available gigabit-speed ports on standard network devices in installs where long-distance copper or fiber wiring is not in use.
Supports up to 10Gbps transmission speeds. Package includes 2x SFP+ modules.
TEG-10GBRJ/2 Specs and Details
- Standards
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3an
- IEEE 802.3ab
- IEEE 802.3bz
- Device Interface
- SFP+ MSA compliant
- RJ45 connector
- Data Transfer Rate
- Up to 10Gbps
- Distance
- 10Gbps up to 30m (98 ft.) with Cat6A/7
- 2.5G/5Gbps up to 50m (164 ft.) with Cat5e
- 1Gbps up to 100m (328 ft.) with Cat5e
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Power (per unit)
- Max. consumption: 3W
- Operating Temperature
- 0° – 65° C (32° – 149° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (per unit)
- 68.8 x 13.8 x 13.4mm (2.7 x 0.53 x 0.52 in.)
- Weight (per unit)
- 24g (0.8 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Manufacturer's Warranty
- What's Included
- 2 x TEG-10GBRJ
Technical Specifications
The TRENDnet 2-Pack 10G RJ-45 Copper SFP+ Modules convert standard SFP+ ports into RJ-45 multi-gigabit compatible ports for additional high-speed wired connection options.
Works with standard SFP+ ports on network switches and fiber media converters. Increases the number of available gigabit-speed ports on standard network devices in installs where long-distance copper or fiber wiring is not in use.
Supports up to 10Gbps transmission speeds. Package includes 2x SFP+ modules.
TEG-10GBRJ/2 Specs and Details
- Standards
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3an
- IEEE 802.3ab
- IEEE 802.3bz
- Device Interface
- SFP+ MSA compliant
- RJ45 connector
- Data Transfer Rate
- Up to 10Gbps
- Distance
- 10Gbps up to 30m (98 ft.) with Cat6A/7
- 2.5G/5Gbps up to 50m (164 ft.) with Cat5e
- 1Gbps up to 100m (328 ft.) with Cat5e
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Power (per unit)
- Max. consumption: 3W
- Operating Temperature
- 0° – 65° C (32° – 149° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (per unit)
- 68.8 x 13.8 x 13.4mm (2.7 x 0.53 x 0.52 in.)
- Weight (per unit)
- 24g (0.8 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Manufacturer's Warranty
- What's Included
- 2 x TEG-10GBRJ
