About the product

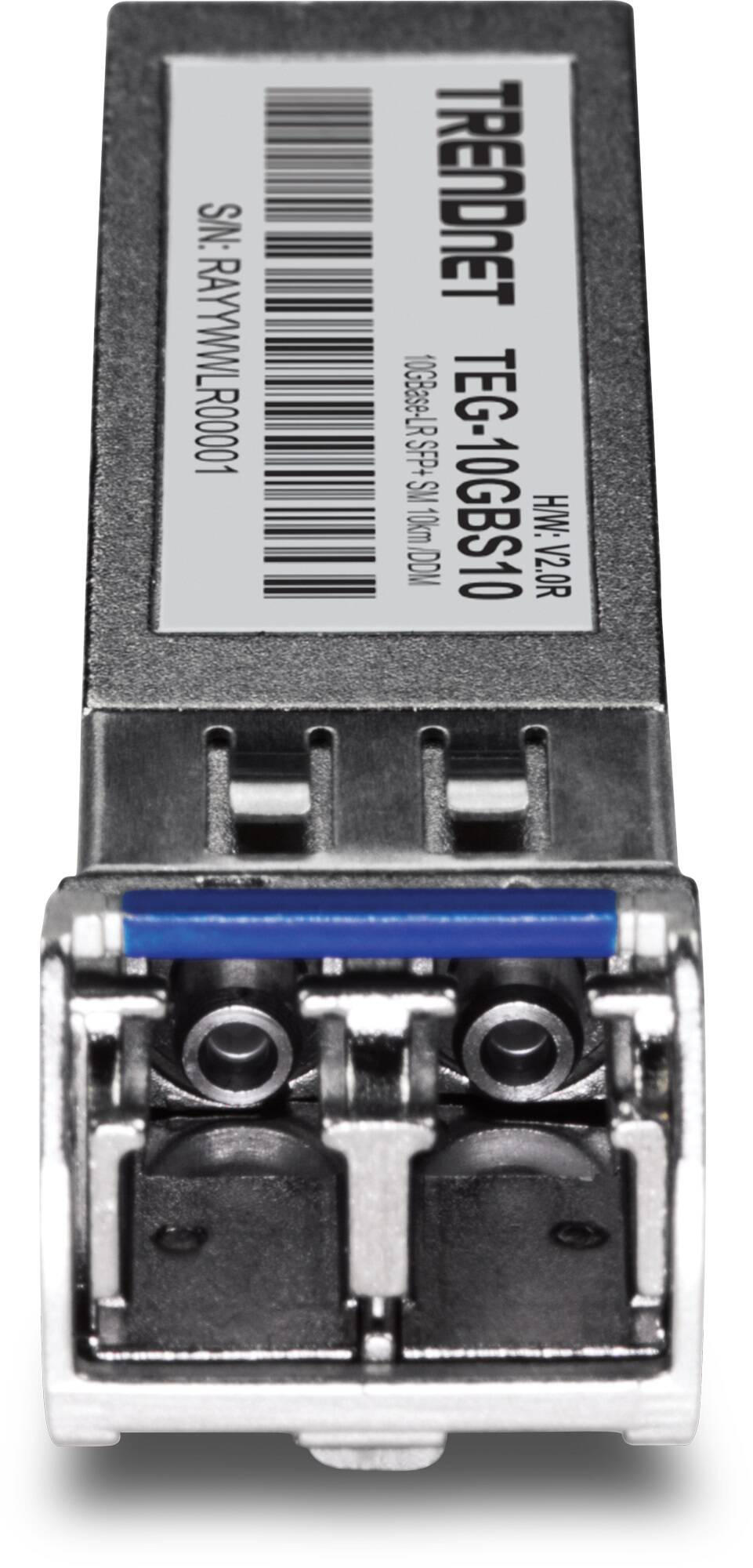

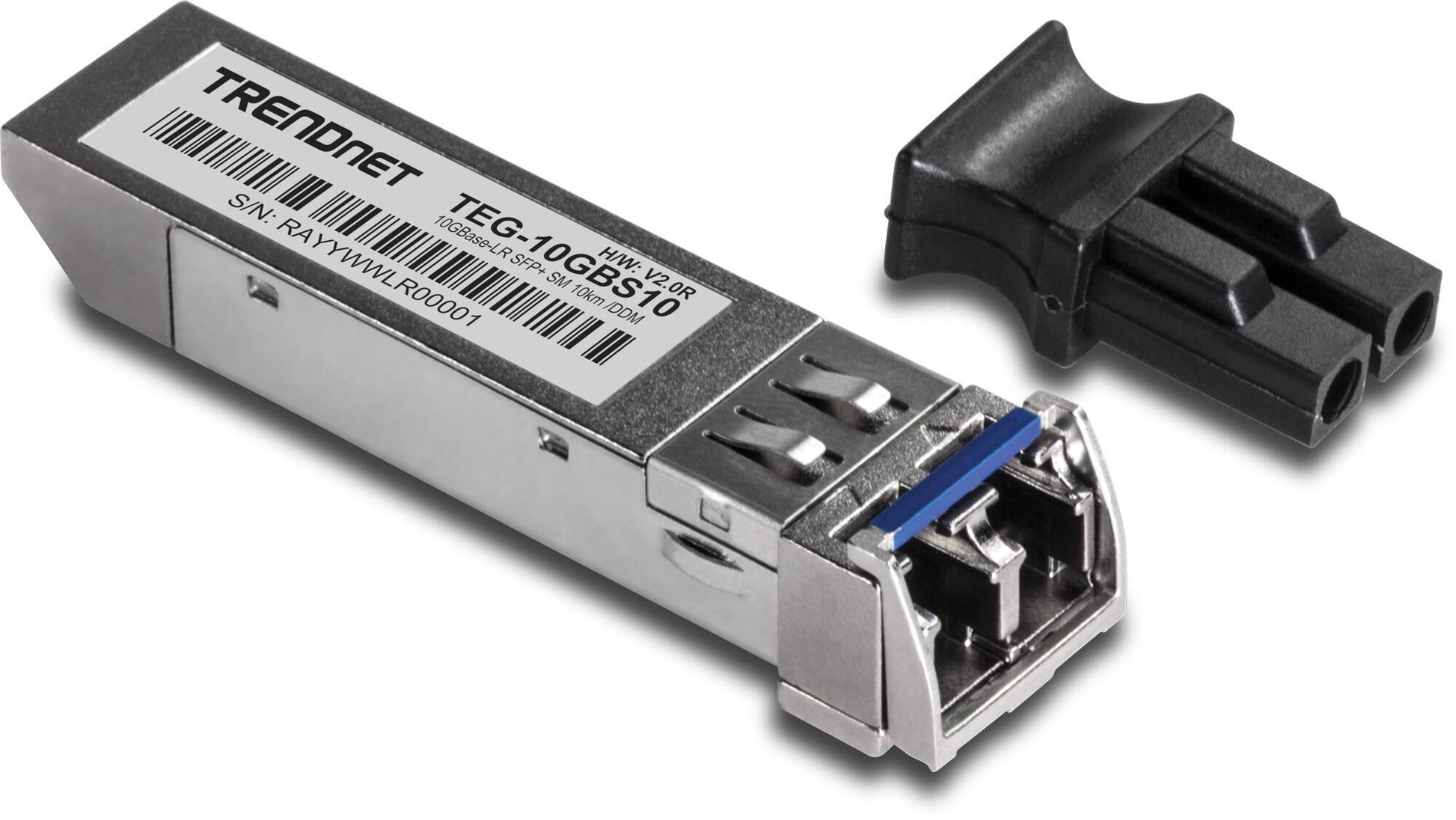

The TRENDnet 2-Pack 10G SFP+ Single Mode LC Modules are compatible with standard SFP+ ports on networking equipment and fiber converters. Each module includes a duplex LC fiber connection interface designed for high-speed (up to 10.31 Gbps) transmission over extremely long distances (up to 10km/6.21 miles) on fiber-optic connections—ideal for large-scale industrial and corporate networks, college campuses, and other multi-building properties.
Hot-pluggable, supports speeds up to 10.31Gbps. Compatible with 1310nm transmissions. Additional DDM support provides administrators with critical device information, including send/transmit power, temperature and voltage info.
Package includes 2x modules.
TEG-10GBS10/2 Specs and Features
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ae
- 10GBASE-LR
- Device Interface
- SFP+ MSA Compliant
- LC duplex connector
- Data Transfer Rate
- Up to 10.31Gbps
- Wavelength
- 1310nm
- Optical Output Power
- -6.2 ~ 0.5 dBm
- Distance
- 10km (6.2 mi.)
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Sensitivity
- -15 dBm
- Power (per unit)
- Max. Consumption: 0.8W
- Operating Temperature
- 0° – 70° C (32° – 158° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (per unit)
- 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
- Weight (per unit)
- 18g (0.6 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Manufacturer's Warranty
- What's Included
- 2 x TEG-10GBS10
Technical Specifications
The TRENDnet 2-Pack 10G SFP+ Single Mode LC Modules are compatible with standard SFP+ ports on networking equipment and fiber converters. Each module includes a duplex LC fiber connection interface designed for high-speed (up to 10.31 Gbps) transmission over extremely long distances (up to 10km/6.21 miles) on fiber-optic connections—ideal for large-scale industrial and corporate networks, college campuses, and other multi-building properties.
Hot-pluggable, supports speeds up to 10.31Gbps. Compatible with 1310nm transmissions. Additional DDM support provides administrators with critical device information, including send/transmit power, temperature and voltage info.
Package includes 2x modules.
TEG-10GBS10/2 Specs and Features
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ae
- 10GBASE-LR
- Device Interface
- SFP+ MSA Compliant
- LC duplex connector
- Data Transfer Rate
- Up to 10.31Gbps
- Wavelength
- 1310nm
- Optical Output Power
- -6.2 ~ 0.5 dBm
- Distance
- 10km (6.2 mi.)
- Special Features
- Hot pluggable
- Metal enclosure
- DDM support
- Sensitivity
- -15 dBm
- Power (per unit)
- Max. Consumption: 0.8W
- Operating Temperature
- 0° – 70° C (32° – 158° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (per unit)
- 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
- Weight (per unit)
- 18g (0.6 oz.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Manufacturer's Warranty
- What's Included
- 2 x TEG-10GBS10
