About the product

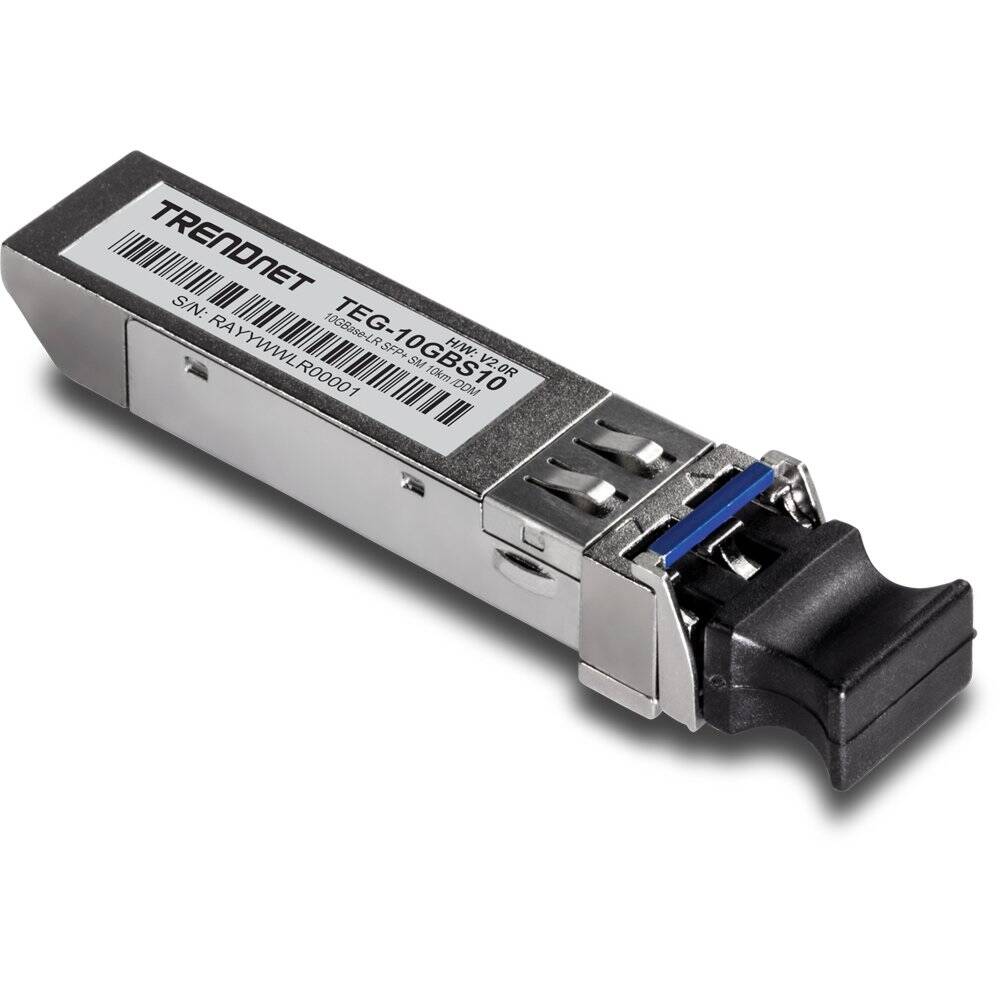

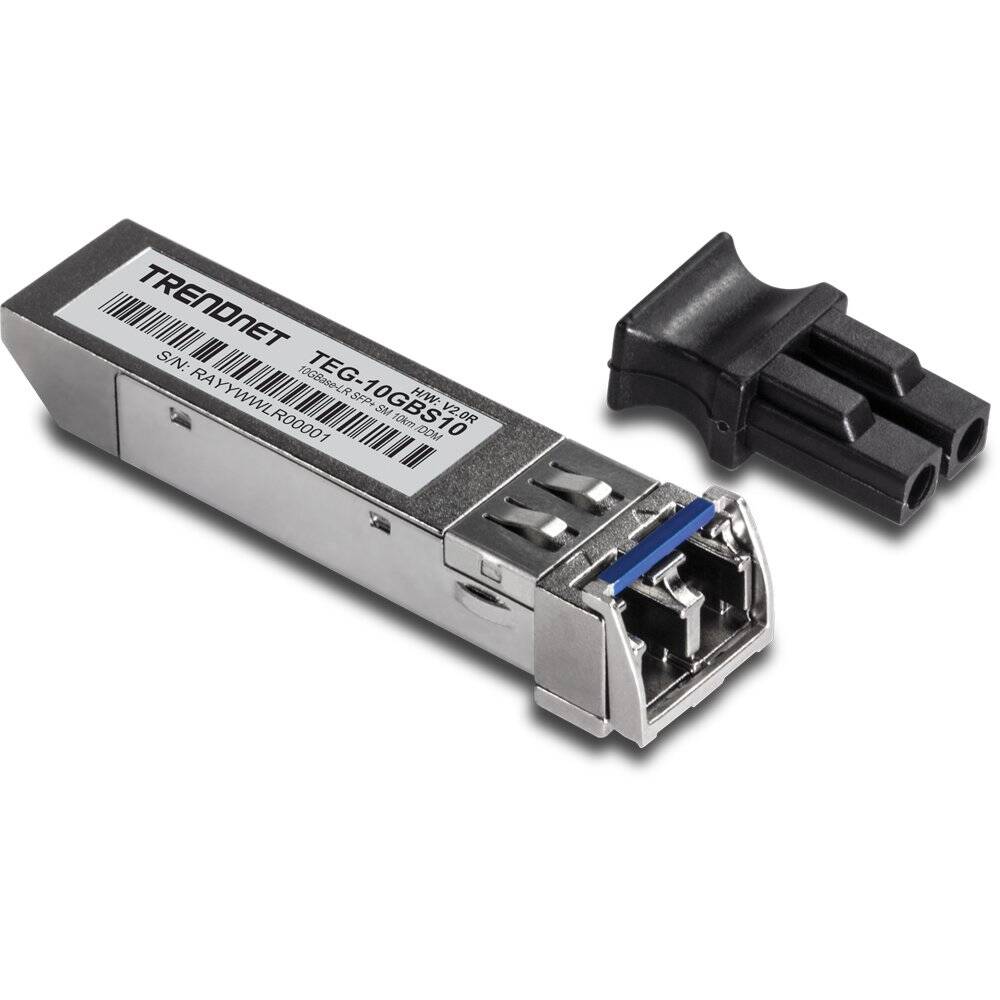

The TRENDnet 10GBASE-SR SFP+ SMulti Mode LC Module with DDM is a hot-pluggable SFP+ transceiver for duplex LC fiber connections. Supporting a throughput up to 10.5 Gbps over distances of 300m (984 feet) with Digital Diagnostics Monitoring support for critical long-distance wired networking with a variety of monitoring features, such as transmit/receive power, temperature and voltage. Compatible with Multi Mode 850nm transmissions, hot-pluggable with any MSA compliant SFP+ slot. Ideal for industrial, manufacturing, corporate or high-footprint fiber networking systems, like high-resolution cameras and multi-point security systems that require additional layers of device monitoring over LAN.
TEG-10GBS20 Features and Specs:
- Duplex LC optical interface
- Wavelength: 850 nm
- Hot-Pluggable SFP+ transceiver compatible with an MSA compliant SFP+ slot
- Distance: 300 m (OM3), 82 m (OM2), 33 m (OM1)
- Data Transfer Rate: 8.5-10.5 Gbps
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Operating temperature: 0° – 70° C (32° – 158 °F)
- Dimensions: 14.8 x 56.5 x 11.85 mm (0.6 x 2.2 x 0.5 in.)
- Weight: 22g (0.7 oz.)
- Certifications: CE, FCC
- Package Includes:
- 1x TEG-10GBSR
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 10GBASE-SR SFP+ SMulti Mode LC Module with DDM is a hot-pluggable SFP+ transceiver for duplex LC fiber connections. Supporting a throughput up to 10.5 Gbps over distances of 300m (984 feet) with Digital Diagnostics Monitoring support for critical long-distance wired networking with a variety of monitoring features, such as transmit/receive power, temperature and voltage. Compatible with Multi Mode 850nm transmissions, hot-pluggable with any MSA compliant SFP+ slot. Ideal for industrial, manufacturing, corporate or high-footprint fiber networking systems, like high-resolution cameras and multi-point security systems that require additional layers of device monitoring over LAN.
TEG-10GBS20 Features and Specs:
- Duplex LC optical interface
- Wavelength: 850 nm
- Hot-Pluggable SFP+ transceiver compatible with an MSA compliant SFP+ slot
- Distance: 300 m (OM3), 82 m (OM2), 33 m (OM1)
- Data Transfer Rate: 8.5-10.5 Gbps
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Operating temperature: 0° – 70° C (32° – 158 °F)
- Dimensions: 14.8 x 56.5 x 11.85 mm (0.6 x 2.2 x 0.5 in.)
- Weight: 22g (0.7 oz.)
- Certifications: CE, FCC
- Package Includes:
- 1x TEG-10GBSR
- Lifetime Manufacturer’s Warranty
