About the product

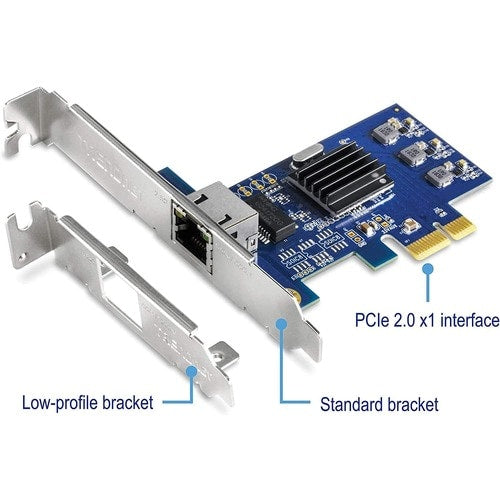

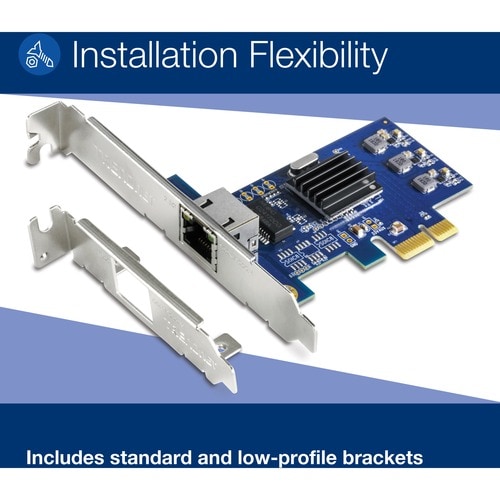

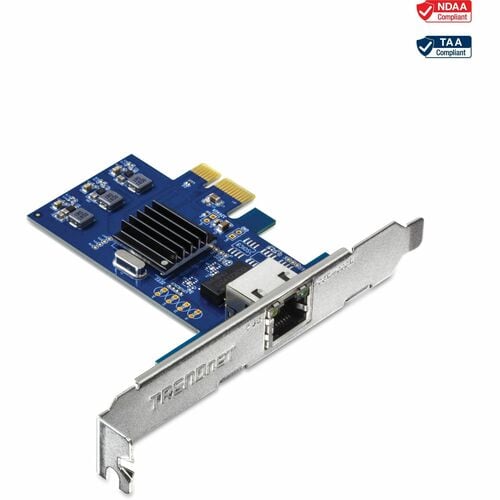

TRENDnet's 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
TRENDnet TEG-25GECTX Features
TRENDNET TEG-25GECTX Specifications
Standards- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz 2.5GBASE-T
- IEEE 802.1Q
- PCIe 2.0 x1 interface

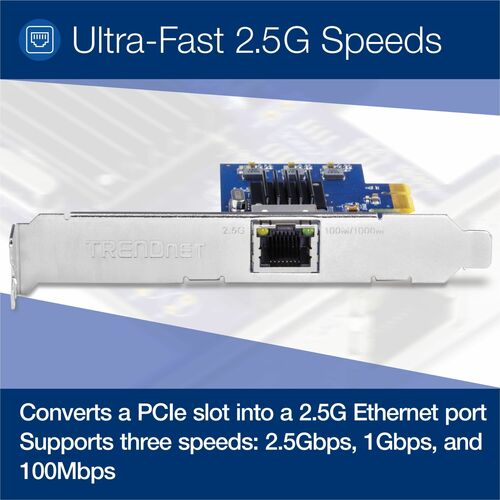

- 1 x RJ-45 Ethernet port (Supported Speeds: 2.5Gbps / 1Gbps / 100Mbps)
- LED indicators
- 2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.)
- 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.)
- 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m (328 ft.) (max.)
- Windows 10, 8.1, 7
- Windows Server 2016, 2012
- Linux 2.6.x, 3.x.x, 4.6.x or later
- Microsoft Hyper-V
- Oracle VirtualBox
- Up to 9KB
- 2.5GBASE-T 2.5Gbps support for high speed network connectivity
- Windows Server support
- VMware ESXi??5.1/5.5/6.5, Microsoft Hyper-V, and Oracle VirtualBox support for virtualization
- Virtual NIC support (VMQ 32 group)
- 802.1Q VLAN Tagging
- LTR (Latency Tolerance Reporting)
- Microsoft WPI (Wake Packet Indication)
- Large Send (up to 64KB)
- IP, TCP, and UDP checksum offloading
- Advanced cable diagnostics
- Max. consumption: 1.8W
- 0 40 C (32 104 F)
- Max. 90% non-condensing
- CE
- FCC
- 84 x 64 x 18mm (3.3 x 2.5 x 0.7 in.)
- 42g (1.5 oz.)
- 3 year
What's Included
Technical Specifications
TRENDnet's 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
TRENDnet TEG-25GECTX Features
TRENDNET TEG-25GECTX Specifications
Standards- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz 2.5GBASE-T
- IEEE 802.1Q
- PCIe 2.0 x1 interface
- 1 x RJ-45 Ethernet port (Supported Speeds: 2.5Gbps / 1Gbps / 100Mbps)
- LED indicators
- 2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.)
- 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.)
- 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m (328 ft.) (max.)
- Windows 10, 8.1, 7
- Windows Server 2016, 2012
- Linux 2.6.x, 3.x.x, 4.6.x or later
- Microsoft Hyper-V
- Oracle VirtualBox
- Up to 9KB
- 2.5GBASE-T 2.5Gbps support for high speed network connectivity
- Windows Server support
- VMware ESXi??5.1/5.5/6.5, Microsoft Hyper-V, and Oracle VirtualBox support for virtualization
- Virtual NIC support (VMQ 32 group)
- 802.1Q VLAN Tagging
- LTR (Latency Tolerance Reporting)
- Microsoft WPI (Wake Packet Indication)
- Large Send (up to 64KB)
- IP, TCP, and UDP checksum offloading
- Advanced cable diagnostics
- Max. consumption: 1.8W
- 0 40 C (32 104 F)
- Max. 90% non-condensing
- CE
- FCC
- 84 x 64 x 18mm (3.3 x 2.5 x 0.7 in.)
- 42g (1.5 oz.)
- 3 year
What's Included
