About the product

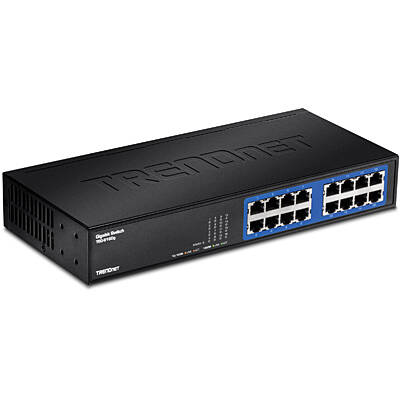

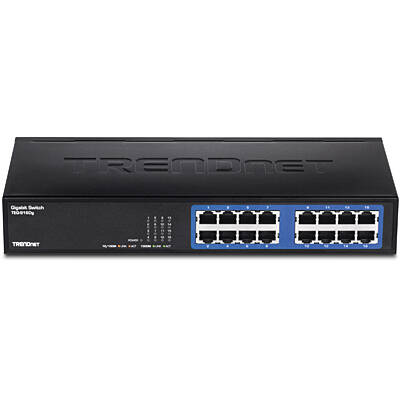

The 16-Port Gigabit GREENnet Desktop Switch, model TEG-S16Dg, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
TRENDnet TEG-S16DG Features
- GREENnet technology reduces power consumption by up to 70%*
- 16 x Gigabit RJ-45 ports
- Sturdy metal desktop switch with built-in power supply
- 32 Gbps forwarding capacity
- Lifetime Warranty*
TRENDNET TEG-S16DG Specifications
Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy Efficient Ethernet
Network Media
- Ethernet: Cat. 5 up to 100 m
- Fast Ethernet: Cat. 5 and 5e up to 100 m
- Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
- Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
- Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
- Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
- CSMA / CD, Star
Power Consumption
- 10.1 Watts (max.)
Switch Fabric
- 32 Gbps
Interface
- 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
- 512 KB
- 8 K entries
Jumbo Frame Support
- Up to 10 KB
Diagnostic LED
- Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
- 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
- 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.)
Weight
- 1.1 kg (2.4 lbs.)
Temperature
- Operating: 0 ~ 40 C (32 ~ 104 F)
- Storage: -10 ~ 70 C (14 ~ 158 F)
Humidity
- Max. 90% (non-condensing)
Certifications
- CE, FCC
Warranty
What's Included
- TEG-S16Dg
- Quick Installation Guide
- Power cord (1.8 m / 6 ft.)
Technical Specifications
The 16-Port Gigabit GREENnet Desktop Switch, model TEG-S16Dg, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
TRENDnet TEG-S16DG Features
- GREENnet technology reduces power consumption by up to 70%*
- 16 x Gigabit RJ-45 ports
- Sturdy metal desktop switch with built-in power supply
- 32 Gbps forwarding capacity
- Lifetime Warranty*
TRENDNET TEG-S16DG Specifications
Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy Efficient Ethernet
Network Media
- Ethernet: Cat. 5 up to 100 m
- Fast Ethernet: Cat. 5 and 5e up to 100 m
- Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
- Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
- Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
- Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
- CSMA / CD, Star
Power Consumption
- 10.1 Watts (max.)
Switch Fabric
- 32 Gbps
Interface
- 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
- 512 KB
- 8 K entries
Jumbo Frame Support
- Up to 10 KB
Diagnostic LED
- Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
- 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
- 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.)
Weight
- 1.1 kg (2.4 lbs.)
Temperature
- Operating: 0 ~ 40 C (32 ~ 104 F)
- Storage: -10 ~ 70 C (14 ~ 158 F)
Humidity
- Max. 90% (non-condensing)
Certifications
- CE, FCC
Warranty
What's Included
- TEG-S16Dg
- Quick Installation Guide
- Power cord (1.8 m / 6 ft.)
