About the product

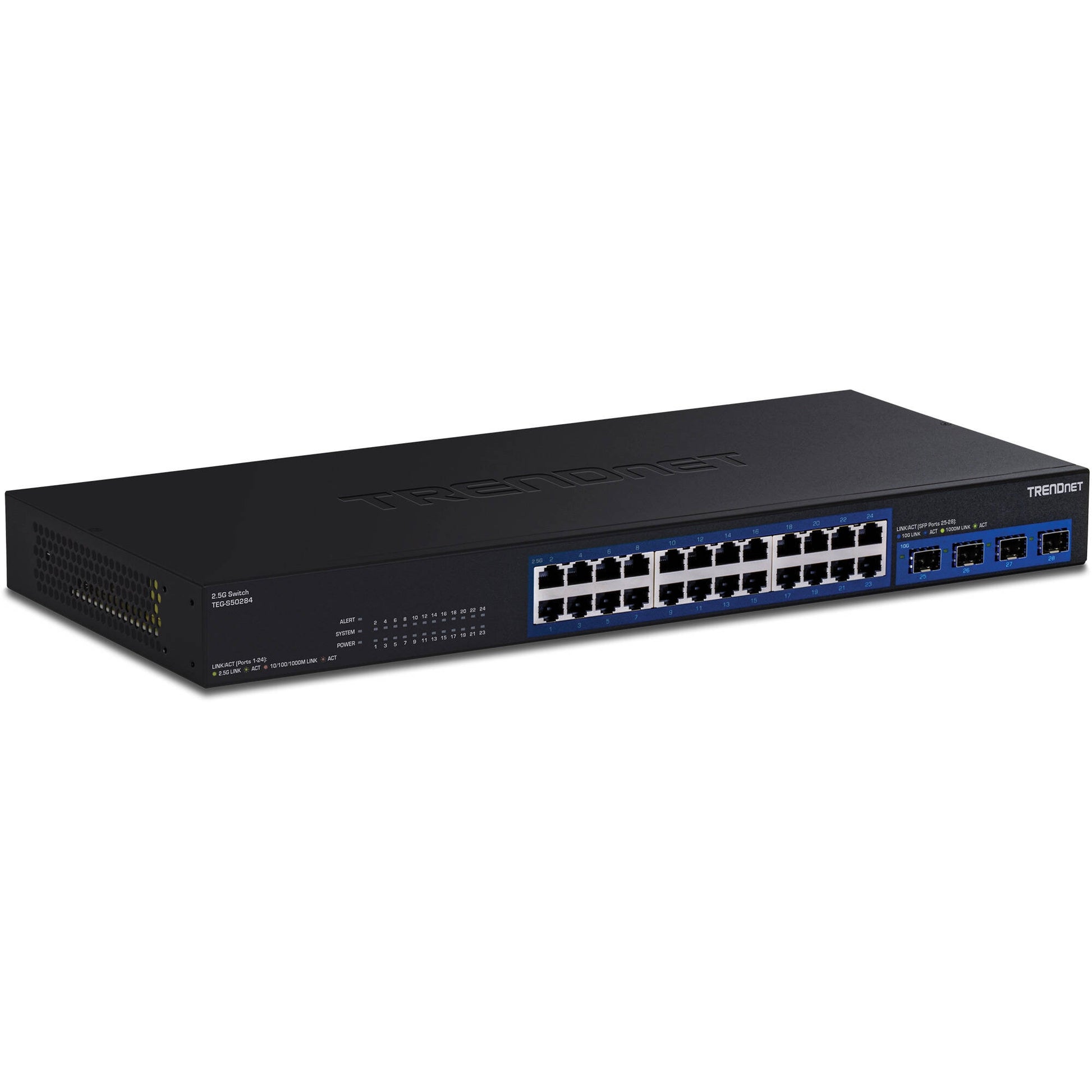

The TRENDnet 28-port Multi-Gig Web Smart Switch is an extremely fast, high-capacity networking switch with 24x 2.5G ethernet ports—providing up to 5Gbps of transfer speeds—and 4x 10G SFP+ ports for copper or fibre optic networking solutions up to 20Gbps.
Fanless, rack mountable design (hardware included) with a total 200Gbps switching capacity, the TRENDnet 28-port Multi-Gig Web Smart Switch is a powerful, centralized networking solution designed for scalability.
TEG-S50284 Specs and Features
- Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz
- Device Interface: 24 x 2.5G RJ-45 ports, (10Mbps/100Mbps/1Gbps/2.5Gbps), 4 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators
- Data Transfer Rate: Ethernet: 10Mbps (half duplex) 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), 2.5 Gigabit: 5Gbps (full duplex)
- Gigabit SFP: 2Gbps (full duplex)
- 10G SFP+: 20Gbps (full duplex)
- Switching Capacity: 200Gbps
- RAM Buffer: 2MB
- Jumbo Frames: 12KB
- MAC Address Table: 32K entries
- Forwarding Rate: 59.52Mpps (64-byte packet size)
- Special Features: Rack mountable, VLAN Passthrough, ESD 6kV for ethernet ports
- Power: Input: 90 – 264V AC, 47/63 Hz; Output: 12V DC, 5A
- Max. Consumption: 38.88W
- Fanless design
- MTBF: 426,000 hours @ 25° C
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Operating Humidity: Max. 90% non-condensing
- Dimensions (L x W x H): 440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
- Weight: 2890g (6.37lbs)
- Certifications: FCC, CE, LVD
- Package Includes: 1x TEG-S50284, Rackmount kit, 5’ Power cord (1.5m), Quick Installation Guide
- Warranty: Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 28-port Multi-Gig Web Smart Switch is an extremely fast, high-capacity networking switch with 24x 2.5G ethernet ports—providing up to 5Gbps of transfer speeds—and 4x 10G SFP+ ports for copper or fibre optic networking solutions up to 20Gbps.
Fanless, rack mountable design (hardware included) with a total 200Gbps switching capacity, the TRENDnet 28-port Multi-Gig Web Smart Switch is a powerful, centralized networking solution designed for scalability.
TEG-S50284 Specs and Features
- Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz
- Device Interface: 24 x 2.5G RJ-45 ports, (10Mbps/100Mbps/1Gbps/2.5Gbps), 4 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators
- Data Transfer Rate: Ethernet: 10Mbps (half duplex) 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), 2.5 Gigabit: 5Gbps (full duplex)
- Gigabit SFP: 2Gbps (full duplex)
- 10G SFP+: 20Gbps (full duplex)
- Switching Capacity: 200Gbps
- RAM Buffer: 2MB
- Jumbo Frames: 12KB
- MAC Address Table: 32K entries
- Forwarding Rate: 59.52Mpps (64-byte packet size)
- Special Features: Rack mountable, VLAN Passthrough, ESD 6kV for ethernet ports
- Power: Input: 90 – 264V AC, 47/63 Hz; Output: 12V DC, 5A
- Max. Consumption: 38.88W
- Fanless design
- MTBF: 426,000 hours @ 25° C
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Operating Humidity: Max. 90% non-condensing
- Dimensions (L x W x H): 440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
- Weight: 2890g (6.37lbs)
- Certifications: FCC, CE, LVD
- Package Includes: 1x TEG-S50284, Rackmount kit, 5’ Power cord (1.5m), Quick Installation Guide
- Warranty: Lifetime Manufacturer’s Warranty
