About the product

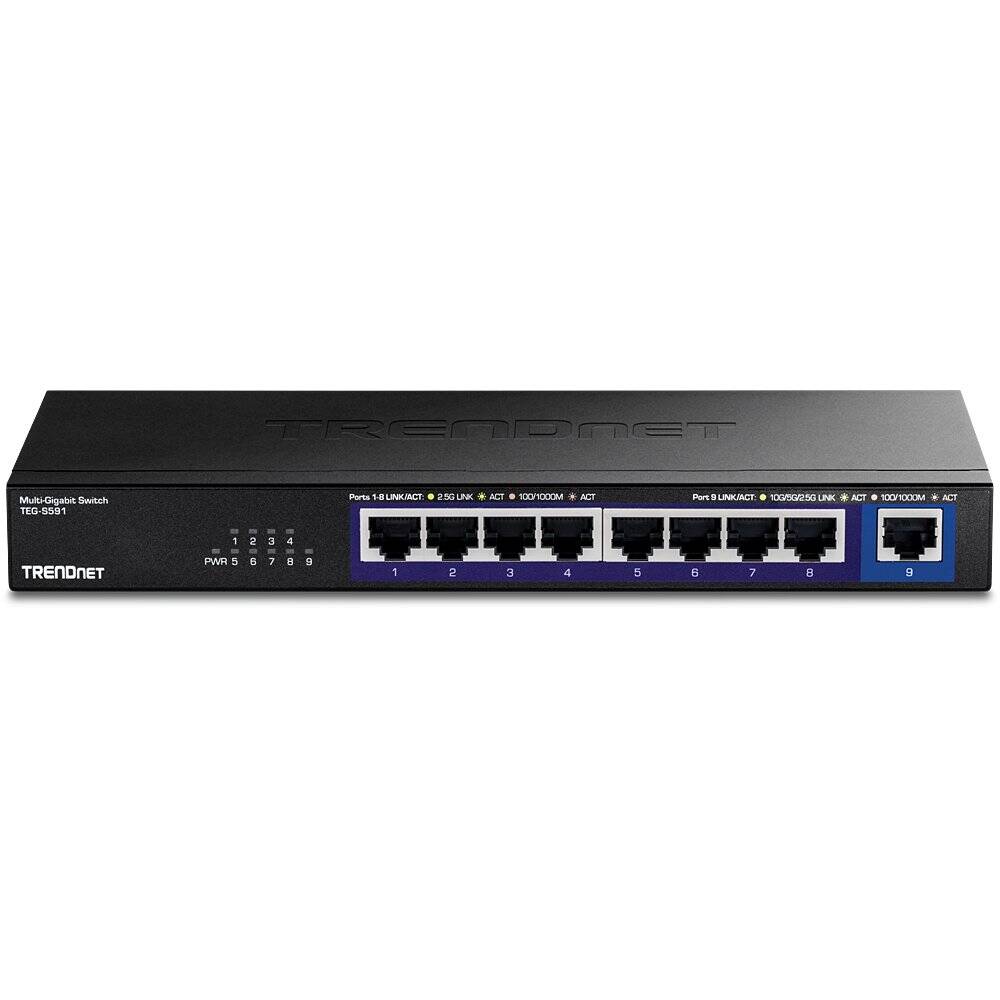

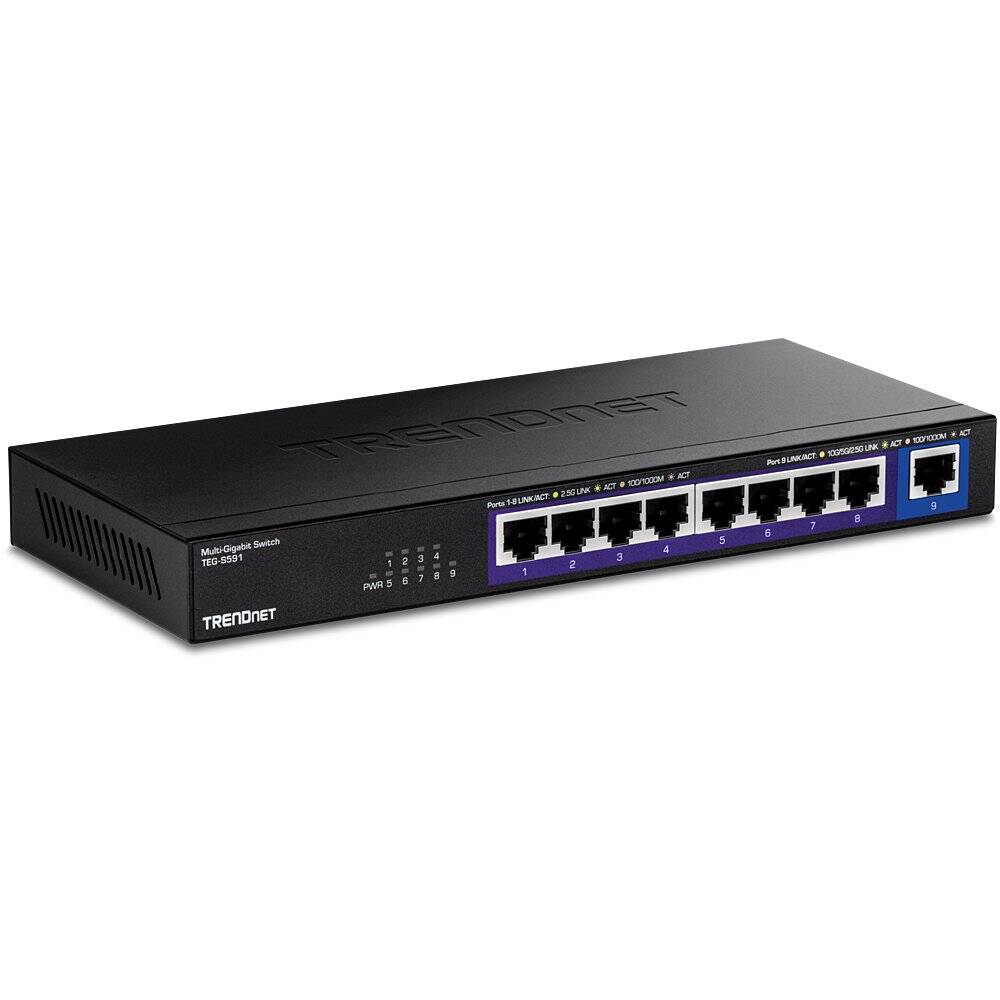

The TRENDnet 9-Port Multi-Gig switch is a compact, fanless, wall-mountable switch for silent, low-footprint network administration and traffic optimization. Equipped with 2.5G RJ-45 ports that can provide speeds up to 2.5Gbps over Cat5e or better; or up to 20Gbps over the dedicated 10G RJ-45 port—the TEG-S591 is a cost-effective method of integrating a 10G link capabilities into extended networks, and for managing traffic in high-volume networks like offices, schools and administrative offices.
TEG-S591 Specs and Features:
- Fanless, noiseless design
- Device Interface
- 8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps)
- 1 x 10G RJ-45 port (1Gbps/10Gbps)
- LED indicators
- Wall mountable
- Data Transfer Rate
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- Switch fabric: 60Gbps
- RAM buffer: 1MB
- MAC address table: 4K entries
- Jumbo frames: 12KB
- Forwarding mode: Store and forward
- Forwarding rate: 44.64Mpps (64-byte packet size)
- Operating Temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 240 x 105 x 27mm (9.45 x 4.1 x 1 in.)
- Weight: 0.72 kg (1.6 lbs.)
- Package contents:
- 1x TEG-S591
- Quick Installation Guide
- Power adapter (12V, 1A)
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 9-Port Multi-Gig switch is a compact, fanless, wall-mountable switch for silent, low-footprint network administration and traffic optimization. Equipped with 2.5G RJ-45 ports that can provide speeds up to 2.5Gbps over Cat5e or better; or up to 20Gbps over the dedicated 10G RJ-45 port—the TEG-S591 is a cost-effective method of integrating a 10G link capabilities into extended networks, and for managing traffic in high-volume networks like offices, schools and administrative offices.
TEG-S591 Specs and Features:
- Fanless, noiseless design
- Device Interface
- 8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps)
- 1 x 10G RJ-45 port (1Gbps/10Gbps)
- LED indicators
- Wall mountable
- Data Transfer Rate
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- Switch fabric: 60Gbps
- RAM buffer: 1MB
- MAC address table: 4K entries
- Jumbo frames: 12KB
- Forwarding mode: Store and forward
- Forwarding rate: 44.64Mpps (64-byte packet size)
- Operating Temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 240 x 105 x 27mm (9.45 x 4.1 x 1 in.)
- Weight: 0.72 kg (1.6 lbs.)
- Package contents:
- 1x TEG-S591
- Quick Installation Guide
- Power adapter (12V, 1A)
- Lifetime Manufacturer’s Warranty
