About the product

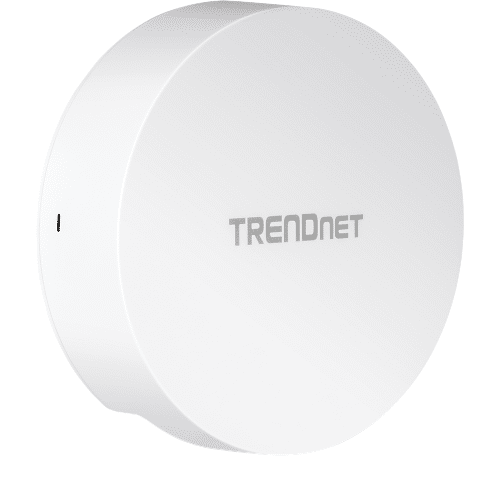

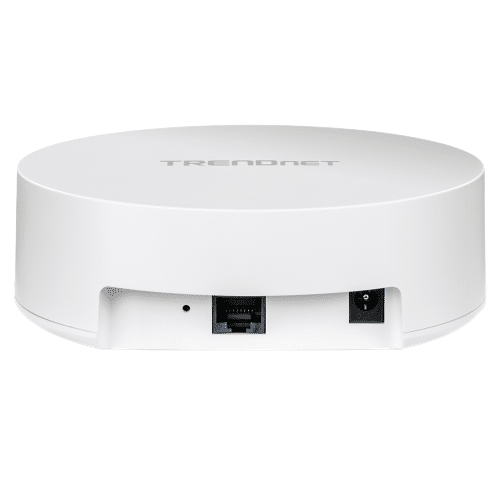

TRENDnet’s AC1300 Dual Band Indoor Wireless PoE Access Point supports Access Point, AP, and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.
The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall/ceiling mounting plate.
TRENDnet’s AC1300 Dual Band PoE Indoor Wireless Access Point Features:
- High-performance AC1300 PoE access point
- Wireless AC MU-MIMO technology boosts performance in a busy home
- AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
- Access Point and Repeater modes
- Supports the latest WPA3 wireless encryption
- Gigabit PoE LAN port
- Low-profile housing blends into most environments
- Includes wall/ceiling mounting plate
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s AC1300 Dual Band PoE Indoor Wireless Access Point Specifications:
- Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11k
- IEEE 802.11n (up to 400Mbps)*
- IEEE 802.11r
- IEEE 802.11v
- IEEE 802.11ac (up to 867Mbps)*
- Hardware Interface:
- 1 x 802.3af PoE Gigabit LAN port (power input)
- Power port (12V DC, 1A external power adapter not included)
- LED indicator
- Reset button
- Features:
- MU-MIMO
- Band steering
- 802.1Q VLAN assignment per SSID
- IPv4 static/DHCP address assignment
- UPnP/Bonjour
- Operation Modes:
- Access Point
- Repeater
- Management/Monitoring:
- Web-based management (HTTP/HTTPS)
- Command Line Interface (Telnet/SSH)
- SNMP v2c/v3
- Spanning Tree Protocol (STP)
- Event logging
- Ping test
- Traceroute
- Schedule WiFi radio enable/disable
- Ping watchdog/gateway connection monitor
- Reboot & scheduled automatic reboot
- Channel utilization scan
- Access Control:
- Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal)
- MAC filter with scheduling
- Maximum client limit
- Client isolation
- QoS: Bandwidth control per SSID
- SSID: Up to 8 SSIDs per wireless band (16 total)
- Frequency:
- 2.4GHz: 2.412 – 2.472GHz
- 5GHz: 5.180 – 5.825GHz
- Wireless Channels:
- 2.4GHz: FCC: 1–11, ETSI: 1–13
- 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48
- Modulation:
- DBPSK/DQPSK/CCK for DSSS technique
- BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
- Antenna Gain:
- 2.4GHz: 2 x 4 dBi internal
- 5Ghz: 2 x 5 dBi internal
- Wireless Output Power:
- 802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.)
- 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.)
- 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.)
- 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.)
- 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
- 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
- Receiving Sensitivity:
- 802.11a: -73 dBm (typical) @ 54Mbps
- 802.11b: -87 dBm (typical) @ 11Mbps
- 802.11g: -73 dBm (typical) @ 54Mbps
- 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps
- 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps
- 802.11ac: -57 dBm (typical) @ 867 Mbps
- Power:
- IEEE 802.3af Type 1 PoE PD Class 3
- Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included)
- Max. consumption: 11.9W
- Operating Temperature: 0° – 40° C (32° – 104° F)
- Operating Humidity: Max. 90% non-condensing
- Certifications:
- CE
- FCC
- IC
- Dimensions: 130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.)
- Weight :188g (6.7 oz.)
- Warranty: 3 Years
Technical Specifications
TRENDnet’s AC1300 Dual Band Indoor Wireless PoE Access Point supports Access Point, AP, and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.
The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall/ceiling mounting plate.
TRENDnet’s AC1300 Dual Band PoE Indoor Wireless Access Point Features:
- High-performance AC1300 PoE access point
- Wireless AC MU-MIMO technology boosts performance in a busy home
- AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
- Access Point and Repeater modes
- Supports the latest WPA3 wireless encryption
- Gigabit PoE LAN port
- Low-profile housing blends into most environments
- Includes wall/ceiling mounting plate
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s AC1300 Dual Band PoE Indoor Wireless Access Point Specifications:
- Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11k
- IEEE 802.11n (up to 400Mbps)*
- IEEE 802.11r
- IEEE 802.11v
- IEEE 802.11ac (up to 867Mbps)*
- Hardware Interface:
- 1 x 802.3af PoE Gigabit LAN port (power input)
- Power port (12V DC, 1A external power adapter not included)
- LED indicator
- Reset button
- Features:
- MU-MIMO
- Band steering
- 802.1Q VLAN assignment per SSID
- IPv4 static/DHCP address assignment
- UPnP/Bonjour
- Operation Modes:
- Access Point
- Repeater
- Management/Monitoring:
- Web-based management (HTTP/HTTPS)
- Command Line Interface (Telnet/SSH)
- SNMP v2c/v3
- Spanning Tree Protocol (STP)
- Event logging
- Ping test
- Traceroute
- Schedule WiFi radio enable/disable
- Ping watchdog/gateway connection monitor
- Reboot & scheduled automatic reboot
- Channel utilization scan
- Access Control:
- Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal)
- MAC filter with scheduling
- Maximum client limit
- Client isolation
- QoS: Bandwidth control per SSID
- SSID: Up to 8 SSIDs per wireless band (16 total)
- Frequency:
- 2.4GHz: 2.412 – 2.472GHz
- 5GHz: 5.180 – 5.825GHz
- Wireless Channels:
- 2.4GHz: FCC: 1–11, ETSI: 1–13
- 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48
- Modulation:
- DBPSK/DQPSK/CCK for DSSS technique
- BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
- Antenna Gain:
- 2.4GHz: 2 x 4 dBi internal
- 5Ghz: 2 x 5 dBi internal
- Wireless Output Power:
- 802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.)
- 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.)
- 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.)
- 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.)
- 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
- 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
- Receiving Sensitivity:
- 802.11a: -73 dBm (typical) @ 54Mbps
- 802.11b: -87 dBm (typical) @ 11Mbps
- 802.11g: -73 dBm (typical) @ 54Mbps
- 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps
- 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps
- 802.11ac: -57 dBm (typical) @ 867 Mbps
- Power:
- IEEE 802.3af Type 1 PoE PD Class 3
- Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included)
- Max. consumption: 11.9W
- Operating Temperature: 0° – 40° C (32° – 104° F)
- Operating Humidity: Max. 90% non-condensing
- Certifications:
- CE
- FCC
- IC
- Dimensions: 130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.)
- Weight :188g (6.7 oz.)
- Warranty: 3 Years
