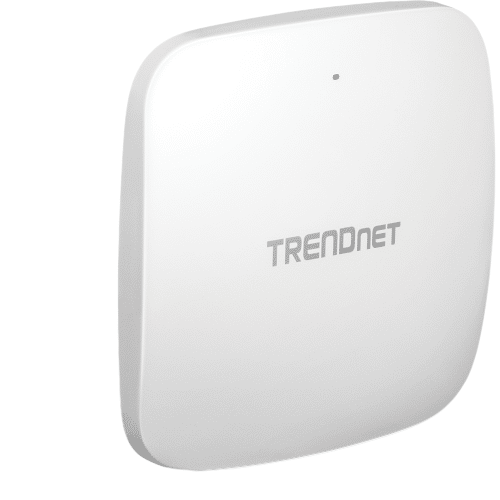

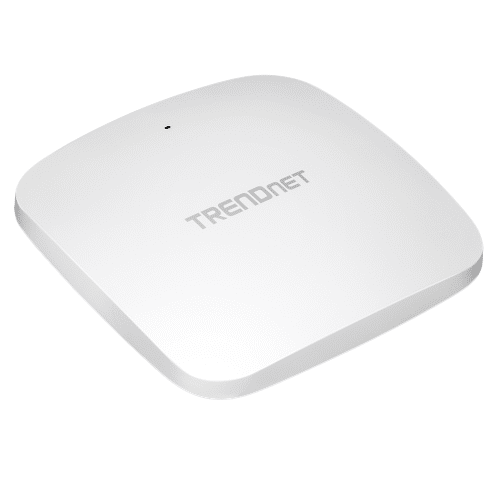

TRENDnet AX3000 Dual Band WiFi 6 PoE+ Access Point (TEW-923DAP)

TRENDnet AX3000 Dual Band WiFi 6 PoE+ Access Point (TEW-923DAP)

$153.99 CAD
$172.99 CAD $153.99 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

TRENDnet AX3000 Dual Band WiFi 6 PoE+ Access Point (TEW-923DAP)

VPN:TEW-923DAP      SKU:AT541193      UPC:710931131161

Volume discount available - Ask for quote..

View full details

Recently Viewed

TRENDnet AX3000 Dual Band WiFi 6 PoE+ Access Point (TEW-923DAP)

Product information summary

TRENDnet AX3000 Dual Band WiFi 6 PoE+ Access Point (TEW-923DAP)

About the product

TRENDnet’s high-performance AX3000 Dual Band WiFi 6 PoE+ Access Point, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The access point also supports Access Point (AP) and Repeater modes.

Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall/ceiling mounting plate.

TRENDnet’s AX3000 Dual Band WiFi 6 PoE+ Access Point Features:

  • High performance AX3000 PoE+ access point
  • AX3000 Dual Band: 2402Mbps (5GHz) + 573Mbps (2.4GHz) bands
  • Two concurrent WiFi bands maximize device networking speeds
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Access Point and Repeater modes
  • Supports up to WPA3 encryption
  • 1 x 2.5GBASE-T PoE+ LAN port
  • Low-profile blends into most environments
  • Includes wall/ceiling mounting plate
  • NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s AX3000 Dual Band WiFi 6 PoE+ Access Point Specifications:

  • Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3at
    • IEEE 802.3bz
    • IEEE 802.1Q
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11k**
    • IEEE 802.11n (up to 300Mbps)*
    • IEEE 802.11r**
    • IEEE 802.11v
    • IEEE 802.11ac (up to 867Mbps)*
    • IEEE 802.11ax (up to 2402Mbps on 5GHz, up to 573Mbps on 2.4GHz)*
  • Hardware Interface:
    • 1 x 802.3at PoE+ 2.5GBASE-T LAN port (power input)
    • Power port (12V DC, 1.5A external power adapter not included)
    • LED indicator
    • Reset button
  • Features:
    • MU-MIMO
    • Band steering
    • 802.1Q VLAN assignment per SSID
    • IPv4 static/DHCP address assignment
    • UPnP/Bonjour
  • Operation Modes:
    • Access Point
    • Repeater
  • Management/Monitoring:
    • Web based management (HTTP/HTTPS)
    • Command Line Interface (Telnet/SSH)
    • SNMP v2c/v3
    • Spanning Tree Protocol (STP)
    • Event logging
    • Ping test
    • Traceroute
    • Schedule WiFi radio enable/disable
    • Ping watchdog/gateway connection monitor
    • Reboot & scheduled automatic reboot
    • Channel utilization scan
  • Access Control:
    • Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal)
    • MAC filter with scheduling
    • Maximum client limit
    • Client isolation
  • QoS: Bandwidth control per SSID
  • SSID: Up to 8 SSIDs per wireless band (16 total)
  • Frequency:
    • 2.4GHz: 2.412 – 2.472GHz
    • 5GHz: 5.180 – 5.825GHz
  • Wireless Channels:
    • 2.4GHz: FCC: 1–11, ETSI: 1–13
    • 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 408, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
  • Modulation:
    • DBPSK/DQPSK/CCK for DSSS technique
    • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
  • Antenna Gain:
    • 2.4GHz: 2 x 4.5 dBi internal
    • 5GHz: 2 x 5.5 dBi internal
  • Wireless Output Power:
    • 802.11b/g/n/ac/ax (2.4GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.)
    • 802.11a/n/ac/ax (5GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.)
  • Receiving Sensitivity:
    • 802.11a: -72 dBm (typical) @ 54Mbps
    • 802.11b: -97 dBm (typical) @ 11Mbps
    • 802.11g: -75 dBm (typical) @ 54Mbps
    • 802.11n (2.4 GHz): -72 dBm (typical) @ 300Mbps
    • 802.11n (5 GHz): -70 dBm (typical) @ 300Mbps
    • 802.11ac: -60 dBm (typical) @ 867Mbps
    • 802.11ax (2.4GHz): -60 dBm (typical) @ 573Mbps
    • 802.11ax (5GHz): -52 dBm (typical) @ 2402Mbps
  • Power:
    • IEEE 802.3at Type 2 PoE+ PD Class 4
    • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (not included)
    • Max. consumption: 17.4W
  • Operating Temperature: 0° – 40° C (32° – 104° F)
  • Operating Humidity: Max. 90% non-condensing
  • Certifications:
    • CE
    • FCC
  • Dimensions: 160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.)
  • Weight: 380g (13.4 oz.)
  • Warranty: 3 Years

Technical Specifications
