About the product

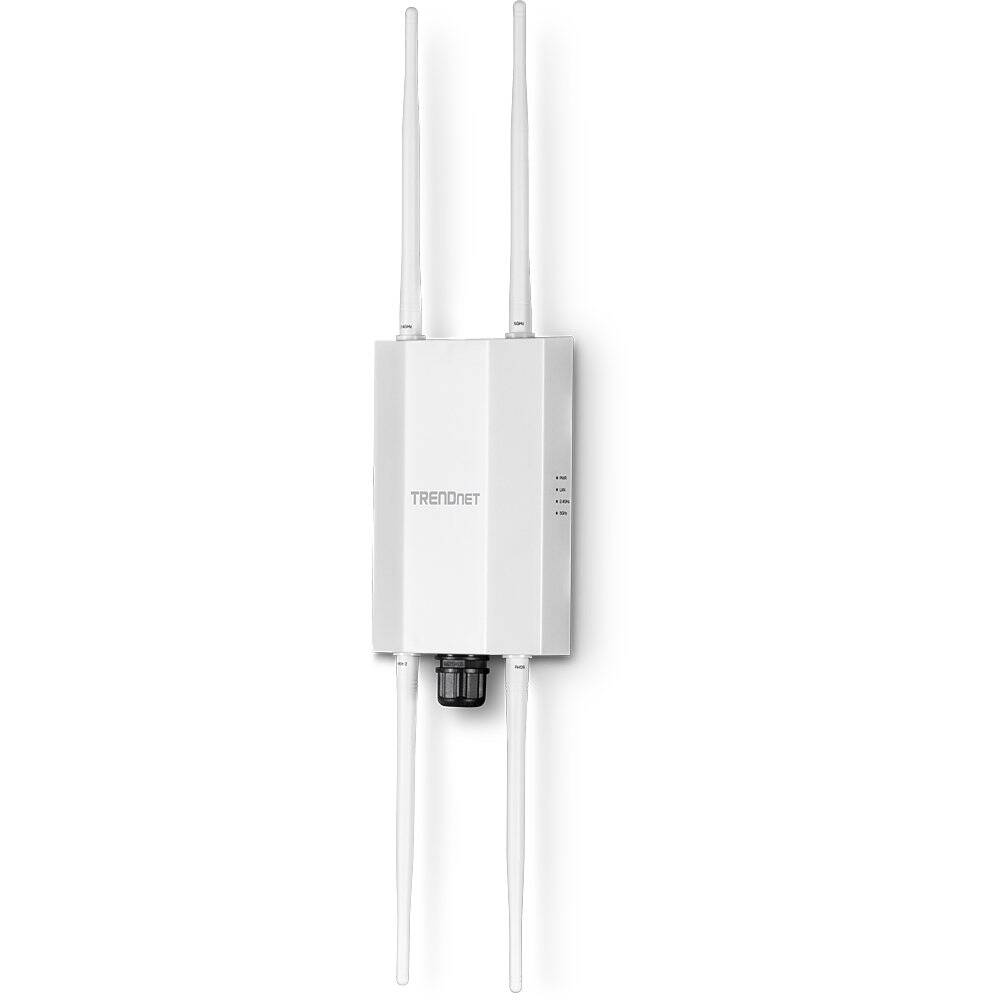

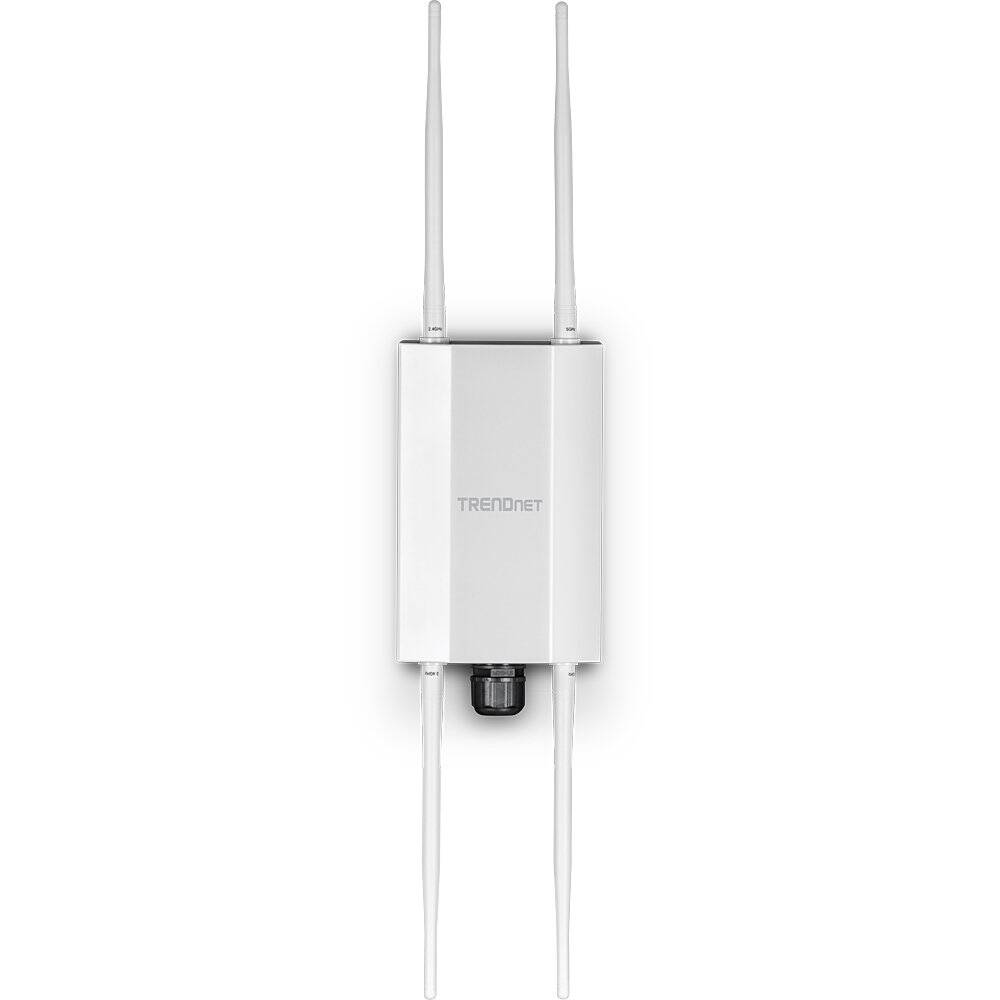

The TRENDnet AX1800 WiFi 6 Outdoor PoE+ Omni-Directional Access Point is a commercial/industrial grade dual-band point-to-point and point-to-multi-point bridge. Featuring four omni-directional 2.4/5 GHz antennas at 5 dBi, a 2.5G PoE+ LAN port and an IP67 outdoor weather rated housing; the TEW-941APBO is perfect for multi-point and multi-location linking, outdoor and extended WiFi coverage in areas like parking lots, patios, side-buildings, and more. Create up to eight dual-band SSIDs for advanced network setups with band steering capabilities to prevent interference, and with support for WPA3 security, AP/repeater modes and client bridge, the TEW-941APBO can be pole and wall mounted almost anywhere you need secure, powerful network access.
TEW-941APBO Specs and Features
- 802.11ax WiFi 6 support
- IP67 rated housing
- MU-MIMO
- Airtime fairness
- Band steering
- 802.1Q VLAN assignment per SSID
- IPv6 support
- LEDs on/off
- 802.11k intelligent radio resource management
- RSSI Threshold (client signal strength and connectivity control)
- LLDP
- Bonjour/UPnP
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*, IEEE 802.11r*, IEEE 802.11v, IEEE 802.11ac (5GHz: up to 867Mbps)*, IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*
- *Actual data throughput and coverage varies depending on interference, networking traffic, installation and other conditions
- Hardware Interface: 1 x PoE+ 2.5G LAN port (power input), 4 x RP-SMA (female) antenna connectors, LED indicators
- Frequency: 2.4GHz: 2.412 – 2.472GHz, 5GHz: 5.180 – 5.825GHz
- Operating Temperature: -22° – 60° C (-7.6° – 140° F)
- Dimensions: 122 x 205 x 45mm (4.8 x 8.07 x 1.77 in.)
- Weight: 706g (24.9 oz.)
- Package Contains:
- 1x TEW-941APBO
- 2 x Detachable 2.4GHz
- 5 dBi antennas
- 2 x Detachable 5GHz 5 dBi antennas
- IP67 weather rated cable gland
- Mounting hardware
- Quick Installation Guide
- 3 Year Manufacturer’s Warranty
Technical Specifications
The TRENDnet AX1800 WiFi 6 Outdoor PoE+ Omni-Directional Access Point is a commercial/industrial grade dual-band point-to-point and point-to-multi-point bridge. Featuring four omni-directional 2.4/5 GHz antennas at 5 dBi, a 2.5G PoE+ LAN port and an IP67 outdoor weather rated housing; the TEW-941APBO is perfect for multi-point and multi-location linking, outdoor and extended WiFi coverage in areas like parking lots, patios, side-buildings, and more. Create up to eight dual-band SSIDs for advanced network setups with band steering capabilities to prevent interference, and with support for WPA3 security, AP/repeater modes and client bridge, the TEW-941APBO can be pole and wall mounted almost anywhere you need secure, powerful network access.
TEW-941APBO Specs and Features
- 802.11ax WiFi 6 support
- IP67 rated housing
- MU-MIMO
- Airtime fairness
- Band steering
- 802.1Q VLAN assignment per SSID
- IPv6 support
- LEDs on/off
- 802.11k intelligent radio resource management
- RSSI Threshold (client signal strength and connectivity control)
- LLDP
- Bonjour/UPnP
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*, IEEE 802.11r*, IEEE 802.11v, IEEE 802.11ac (5GHz: up to 867Mbps)*, IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*
- *Actual data throughput and coverage varies depending on interference, networking traffic, installation and other conditions
- Hardware Interface: 1 x PoE+ 2.5G LAN port (power input), 4 x RP-SMA (female) antenna connectors, LED indicators
- Frequency: 2.4GHz: 2.412 – 2.472GHz, 5GHz: 5.180 – 5.825GHz
- Operating Temperature: -22° – 60° C (-7.6° – 140° F)
- Dimensions: 122 x 205 x 45mm (4.8 x 8.07 x 1.77 in.)
- Weight: 706g (24.9 oz.)
- Package Contains:
- 1x TEW-941APBO
- 2 x Detachable 2.4GHz
- 5 dBi antennas
- 2 x Detachable 5GHz 5 dBi antennas
- IP67 weather rated cable gland
- Mounting hardware
- Quick Installation Guide
- 3 Year Manufacturer’s Warranty
