About the product
- SC-type single-mode fiber port connects over distances of up to 15km (9.3miles)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Supports port level SNMP management

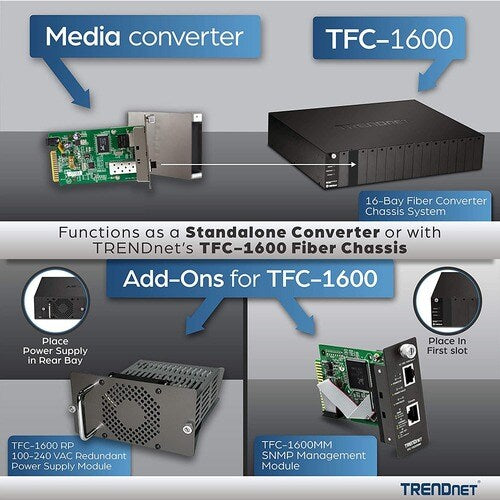

- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Lifetime TRENDnet Manufacturer's Warranty
The TFC-110S15i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto MDIX for 10/100Base-TX port and one 100Mbps fiber port with single-mode SC-type connector
Provides Dip switch to set: Fiber (FDX/HDX), Ethernet (Forced/Auto-Negotiation), Ethernet Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for FX port
Monitor and configure Ethernet or Fiber's duplex mode, speed, LLCF, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed
Wall mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S15i
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
Technical Specifications
| Network & Communication | |
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Media & Performance | |
| Maximum Distance Supported | 15 km (9.32 Mile) |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | TFC-1600 : Media Converter Chassis System |
| Country of Origin | Taiwan |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Physical Characteristics | |
| Weight (Approximate) | 3.74 lb (1696.44 g) |
| Form Factor | Wall Mountable |
| Height | 4" (101.60 mm) |
| Width | 10" (254 mm) |
| Depth | 13" (330.20 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TFC110S15I |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TFC-110S15i |
| Product Name | Intelligent 10/100Base-TX to 100Base-FX Single Mode Fiber Converter(15KM) |
| Brand Name | TRENDnet |
| Product Condition | New |
