About the product
- Must use with TFC-110S20D5
- SC-type dual-wavelength single-mode fiber port connects over distances of up to 20km (12.4miles)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode

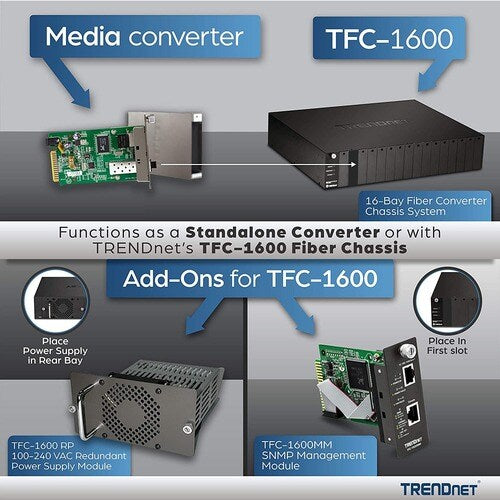

- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
The TFC-110S20D3i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 20 km (12.4 miles). This module must be used with the TFC-110S20D5i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.
Must use with TFC-110S20D5i
Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards
1 x 10/100Base-TX RJ-45 port
1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port Port level SNMP management support
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps),
Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)
Link Loss Carry Forward (LLCF) support
Link Loss Return (LLR) support
Status LED indicators for Power and Link / Activity
Removable metal enclosure
Wall mountable
Functions as a standalone converter or with the TFC-1600 fiber chassis
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S20D3i
Multi-Language Quick Installation Guide
Power adapter (5 V DC, 1 A)
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Must use with TFC-110S20D5
- SC-type dual-wavelength single-mode fiber port connects over distances of up to 20km (12.4miles)
Technical Specifications
| Network & Communication | |
| Network Technology | 100Base-FX |
| 10/100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Physical Characteristics | |
| Weight (Approximate) | 1.85 kg |
| Form Factor | Wall Mountable |
| Height | 4" (101.60 mm) |
| Width | 10" (254 mm) |
| Depth | 12" (304.80 mm) |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TFC-1600 : 19" System Chassis |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | TFC110S20D3 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TFC-110S20D3 |
| Product Name | TFC-110S20D3 100Base-TX to 100Base-FX Dual Wavelength Single Mode Fiber Converter |
| Brand Name | TRENDnet |
| Product Condition | New |
