About the product

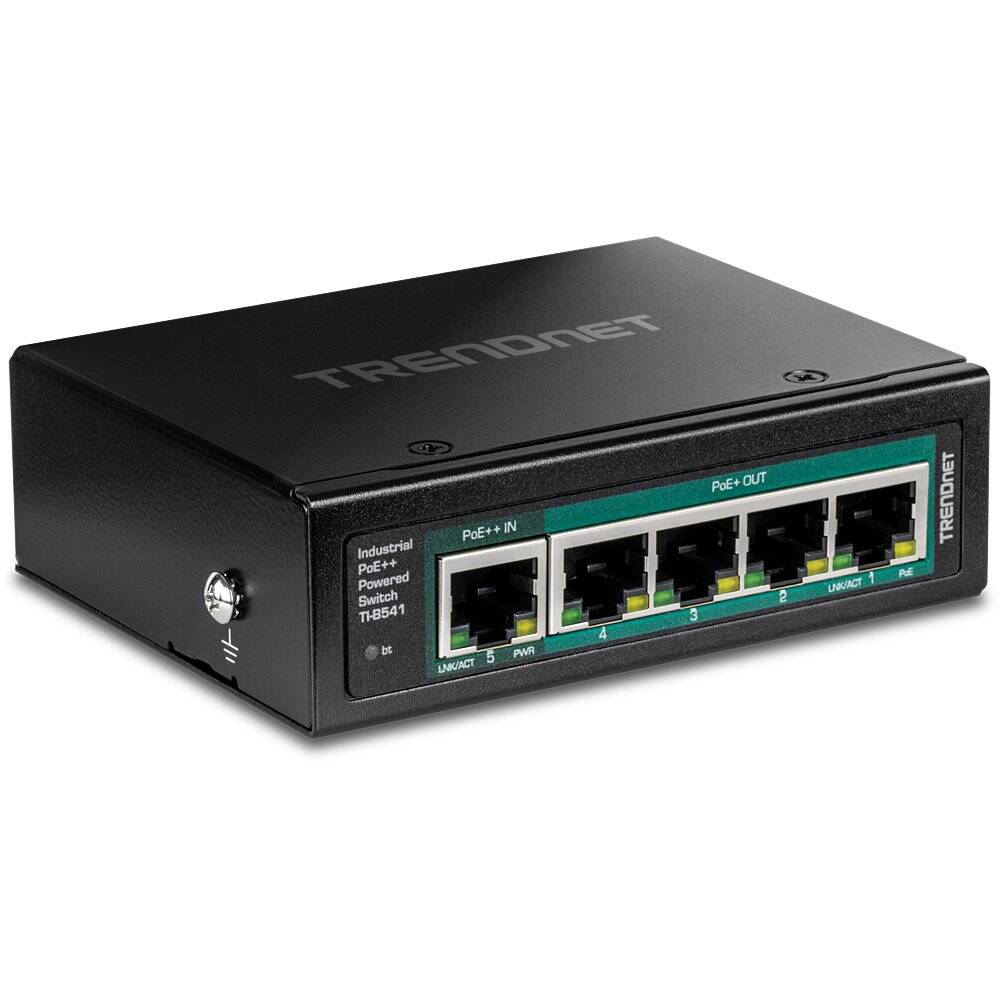

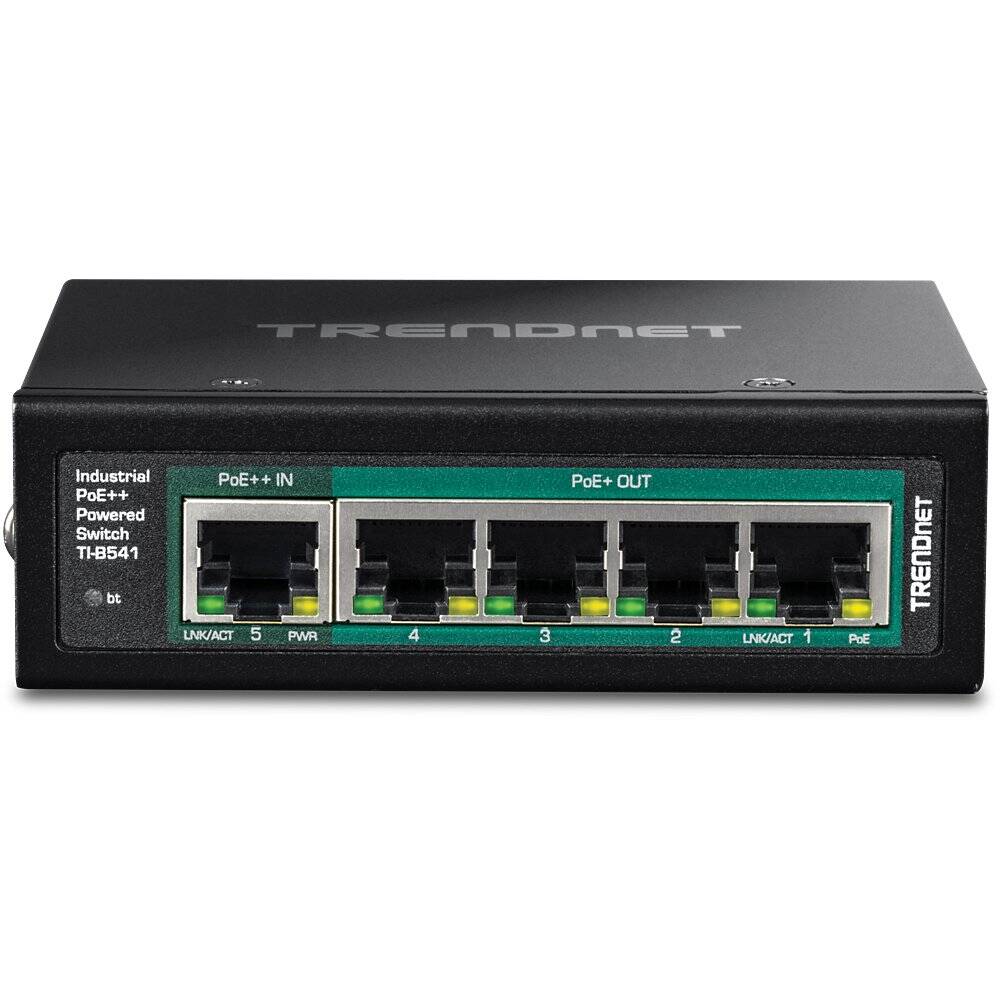

The TRENDnet 5-Port Industrial Gigabit DIN-Rail Switch with PoE Pass-Through is an industrial-grade rail- or wall-mounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-B541 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required. Powered by an in-line PoE++ switch or injector, no direct AC adapter or power supply is required. With 4 gigabit PoE+ ports to power demanding equipment like IP cameras, VOIP handsets, and high-gain AP and PTP networking devices, the TI-B541 provides convenient power splitting and data management from upstream PoE++ switches and injectors in locations where traditional networking equipment can't be deployed.
With a 65W total PoE power budget downstream from a PoE++ device, you can power up to 4 separate devices with a 10Gbps switching capacity, auto-negotiated addressing, and grounding-point for protection of system-critical infrastructure and devices.
TI-B541 Specs and Features:
- Device interface:
- 1 x Gigabit PoE++ in port
- 4 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- PoE++ Powered
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- PoE:
- 65W PoE budget with IEEE 802.3bt Type 4 (90W) input power
- 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power
- 21W PoE budget with IEEE 802.3at (30W) input power
- Operating Temperature: -40° – 75° C (-40° – 167° F)
- Dimensions: 102 x 80 x 31mm (4.01 x 3.14 x 1.22 in.)
- Weight: 160g (0.35 lb.)
- Certifications: CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
- Package Contents:
- 1x TI-B541
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 5-Port Industrial Gigabit DIN-Rail Switch with PoE Pass-Through is an industrial-grade rail- or wall-mounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-B541 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required. Powered by an in-line PoE++ switch or injector, no direct AC adapter or power supply is required. With 4 gigabit PoE+ ports to power demanding equipment like IP cameras, VOIP handsets, and high-gain AP and PTP networking devices, the TI-B541 provides convenient power splitting and data management from upstream PoE++ switches and injectors in locations where traditional networking equipment can't be deployed.
With a 65W total PoE power budget downstream from a PoE++ device, you can power up to 4 separate devices with a 10Gbps switching capacity, auto-negotiated addressing, and grounding-point for protection of system-critical infrastructure and devices.
TI-B541 Specs and Features:
- Device interface:
- 1 x Gigabit PoE++ in port
- 4 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- PoE++ Powered
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- PoE:
- 65W PoE budget with IEEE 802.3bt Type 4 (90W) input power
- 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power
- 21W PoE budget with IEEE 802.3at (30W) input power
- Operating Temperature: -40° – 75° C (-40° – 167° F)
- Dimensions: 102 x 80 x 31mm (4.01 x 3.14 x 1.22 in.)
- Weight: 160g (0.35 lb.)
- Certifications: CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
- Package Contents:
- 1x TI-B541
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
