About the product

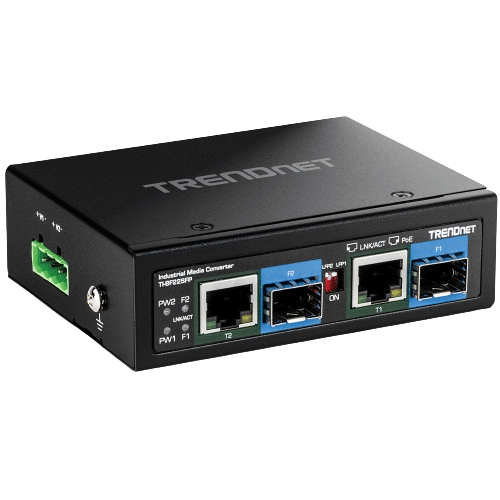

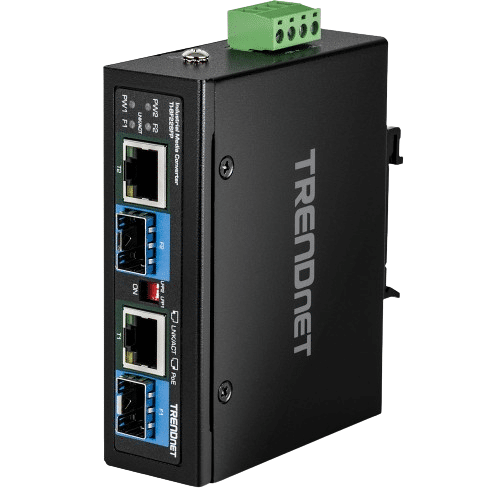

The TI-BF22SFP model from TRENDnet is a 2-Port Industrial SFP to Gigabit PoE++ Media Converter that powers PoE, PoE+, and PoE++ compatible devices including IP cameras, VoIP phones, and wireless access points while converting two long-distance fibre connections to copper connections.
2-Port Industrial SFP to Gigabit PoE++ Media Converter Features:
- 2 x Gigabit SFP ports
- 2 x Gigabit PoE++ RJ-45 ports
- Hardened IP30 rated metal housing
- Provides up to 90W for PoE, PoE+ and PoE++ compliant devices
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range -40°– 75° C (-40° – 167° F)
- Overload current protection
- Powers supply sold separately (model TI-S15052)
- Lifetime Warranty
2-Port Industrial SFP to Gigabit PoE++ Media Converter Specifications:
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface
- 2 x Gigabit SFP ports
- 2 x Gigabit PoE++ ports
- 4-pin removable terminal block
- LED indicators
- DIP switch
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- Gigabit: 2Gbps (full duplex)
- SFP: 2Gbps (full duplex)
- Performance
- Data RAM buffer: 512KB
- MAC address table: 1K
- Jumbo frame: 16KB
- Switching fabric: 4Gbps
- Special Features
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- Automatic address learning and address aging
- Power
- Input: 48 – 56V DC
- Required power supply: TI-S15052 (sold separately)
- Consumption: 3.84W (without PoE) @ 48V DC
- PoE
- Pins 3, 4, 5, 6 for power (+) and pins 1, 2, 7, 8 for power (-)
- PoE budget: 90W
- Terminal Block
- Power and relay inputs, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5lbs. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- DIP Switch
- OFF: T1 LFP disabled (default), ON: LFP enabled
- OFF: T2 LFP disabled (default), ON: LFP enabled
- MTBF 551,468 hours
- Housing
- IP30 rated metal housing
- DIN-Rail mount
- Wall mount
- Grounding point
- Operating Temperature - 40° - 75° C (-40°- 167° F)
- Operating Humidity Max. 95% non-condensing
- Dimensions 104 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)
- Weight 176g (6.2 oz.)
- Certifications
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- Warranty: Lifetime Warranty*
Technical Specifications
The TI-BF22SFP model from TRENDnet is a 2-Port Industrial SFP to Gigabit PoE++ Media Converter that powers PoE, PoE+, and PoE++ compatible devices including IP cameras, VoIP phones, and wireless access points while converting two long-distance fibre connections to copper connections.
2-Port Industrial SFP to Gigabit PoE++ Media Converter Features:
- 2 x Gigabit SFP ports
- 2 x Gigabit PoE++ RJ-45 ports
- Hardened IP30 rated metal housing
- Provides up to 90W for PoE, PoE+ and PoE++ compliant devices
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range -40°– 75° C (-40° – 167° F)
- Overload current protection
- Powers supply sold separately (model TI-S15052)
- Lifetime Warranty
2-Port Industrial SFP to Gigabit PoE++ Media Converter Specifications:
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- Device Interface
- 2 x Gigabit SFP ports
- 2 x Gigabit PoE++ ports
- 4-pin removable terminal block
- LED indicators
- DIP switch
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- Gigabit: 2Gbps (full duplex)
- SFP: 2Gbps (full duplex)
- Performance
- Data RAM buffer: 512KB
- MAC address table: 1K
- Jumbo frame: 16KB
- Switching fabric: 4Gbps
- Special Features
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- Automatic address learning and address aging
- Power
- Input: 48 – 56V DC
- Required power supply: TI-S15052 (sold separately)
- Consumption: 3.84W (without PoE) @ 48V DC
- PoE
- Pins 3, 4, 5, 6 for power (+) and pins 1, 2, 7, 8 for power (-)
- PoE budget: 90W
- Terminal Block
- Power and relay inputs, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5lbs. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- DIP Switch
- OFF: T1 LFP disabled (default), ON: LFP enabled
- OFF: T2 LFP disabled (default), ON: LFP enabled
- MTBF 551,468 hours
- Housing
- IP30 rated metal housing
- DIN-Rail mount
- Wall mount
- Grounding point
- Operating Temperature - 40° - 75° C (-40°- 167° F)
- Operating Humidity Max. 95% non-condensing
- Dimensions 104 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)
- Weight 176g (6.2 oz.)
- Certifications
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- Warranty: Lifetime Warranty*
