About the product

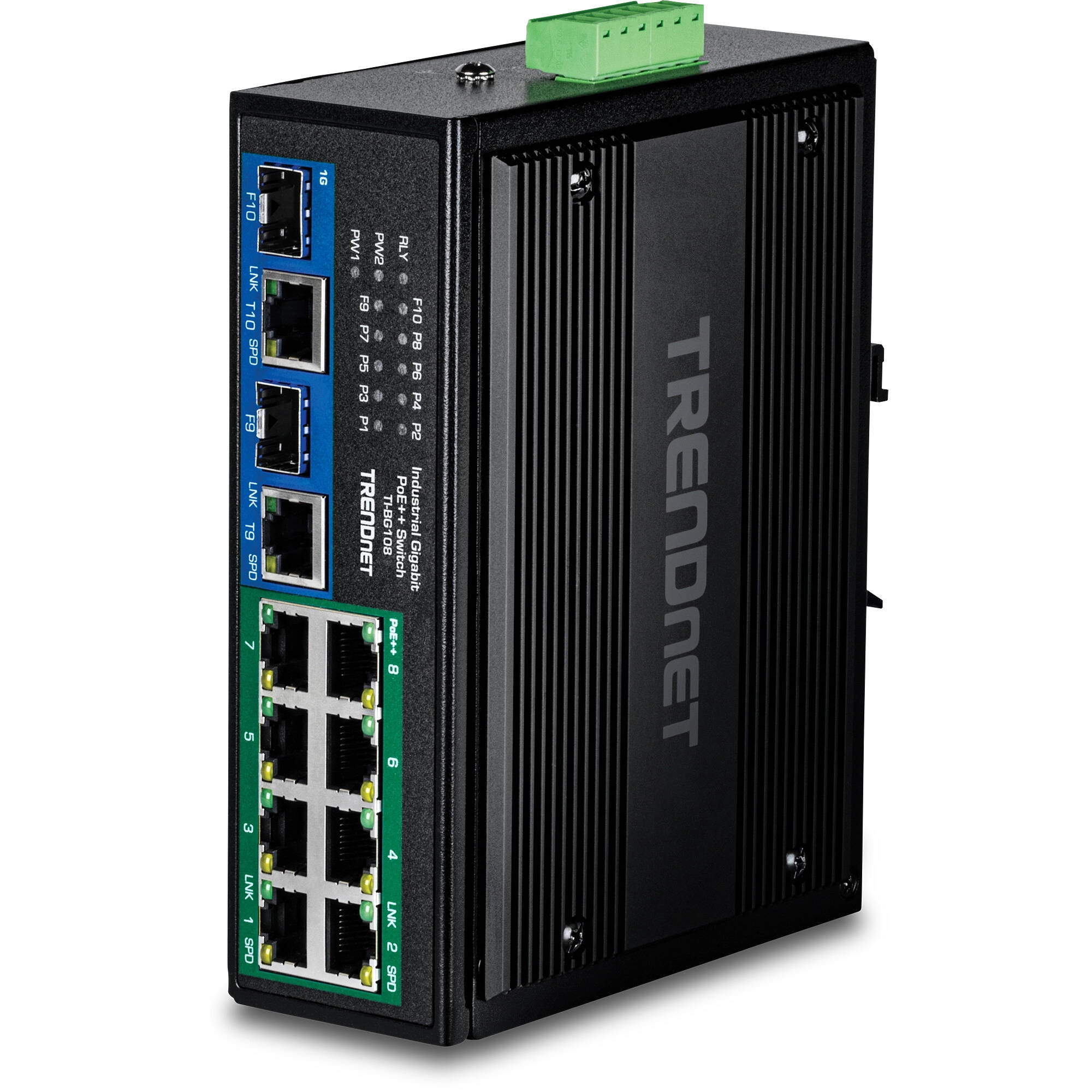

TRENDnet 10 Port Industrial Gigabit 400W PoE++ DIN-Rail Switch is an industrially hardened, IP50 rated gigabit PoE++ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, PTZ and advanced cameras, high-gain wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions. Dual power input options also provide redundancy for 24/7 operations.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-BG108 Specs and Features
- Standards: IEEE 8023, IEEE 8023u, IEEE 8023x, IEEE 8023z, IEEE 8023ab, IEEE 8023af, IEEE 8023at, IEEE 8023bt
- Device Interface: 8 x Gigabit PoE++ ports, 2 x Gigabit shared ports (RJ-45 / SFP), 6-pin removable terminal block, LED indicators, DIN-Rail mount, Wall mount, Grounding point
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), Fiber: 2Gbps (full duplex)
- Data RAM Buffer: 256KB
- Switching Fabric: 20Gbps
- MAC Address Table: 11K entries
- Jumbo Frame: 10KB
- Forwarding rate: 89Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Multiple power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 6kV protection
- DC Power
- Input: 48 - 56V DC
- Compatible power supply: TI-S24048, TI-S48048, TI-S24052 (sold separately)
- Max consumption: 85W (no PD)
- PoE: Up to 95W per port @ 52 – 56V DC, Up to 30W per port @ 48 – 52V DC
- Power budget: 400W @ 56V DC
- Pin 1, 2, 7, 8 for power- and pin 3, 6, 4, 5 for power+
- Terminal Block: Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 034mm^2 to 25mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb – In / 05Nm / 056 Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact: Relay outputs with current carrying capacity of 1A, 24V DC; Short circuit mode when two power sources are connected; Open circuit mode when only one power source is connected
- MTBF: 515,469 hours
- Housing: IP50 metal case, DIN-Rail mount, Wall mount, Grounding point
- Operating Temperature: - 40° – 75° C (40 – 167° F)
- Operating Humidity: Max 95% non-condensing
- Dimensions: 156 x 122 x 48mm (61 x 48 x 19 in)
- Weight: 602g (21.2 oz)
- Certifications: CE, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
- Warranty: Lifetime Manufacturer’s Warranty
Technical Specifications
TRENDnet 10 Port Industrial Gigabit 400W PoE++ DIN-Rail Switch is an industrially hardened, IP50 rated gigabit PoE++ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, PTZ and advanced cameras, high-gain wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions. Dual power input options also provide redundancy for 24/7 operations.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-BG108 Specs and Features
- Standards: IEEE 8023, IEEE 8023u, IEEE 8023x, IEEE 8023z, IEEE 8023ab, IEEE 8023af, IEEE 8023at, IEEE 8023bt
- Device Interface: 8 x Gigabit PoE++ ports, 2 x Gigabit shared ports (RJ-45 / SFP), 6-pin removable terminal block, LED indicators, DIN-Rail mount, Wall mount, Grounding point
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), Fiber: 2Gbps (full duplex)
- Data RAM Buffer: 256KB
- Switching Fabric: 20Gbps
- MAC Address Table: 11K entries
- Jumbo Frame: 10KB
- Forwarding rate: 89Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Multiple power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 6kV protection
- DC Power
- Input: 48 - 56V DC
- Compatible power supply: TI-S24048, TI-S48048, TI-S24052 (sold separately)
- Max consumption: 85W (no PD)
- PoE: Up to 95W per port @ 52 – 56V DC, Up to 30W per port @ 48 – 52V DC
- Power budget: 400W @ 56V DC
- Pin 1, 2, 7, 8 for power- and pin 3, 6, 4, 5 for power+
- Terminal Block: Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 034mm^2 to 25mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb – In / 05Nm / 056 Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact: Relay outputs with current carrying capacity of 1A, 24V DC; Short circuit mode when two power sources are connected; Open circuit mode when only one power source is connected
- MTBF: 515,469 hours
- Housing: IP50 metal case, DIN-Rail mount, Wall mount, Grounding point
- Operating Temperature: - 40° – 75° C (40 – 167° F)
- Operating Humidity: Max 95% non-condensing
- Dimensions: 156 x 122 x 48mm (61 x 48 x 19 in)
- Weight: 602g (21.2 oz)
- Certifications: CE, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
- Warranty: Lifetime Manufacturer’s Warranty
